B1250 Direction Potentiometer Short (High)-Driver - General Information

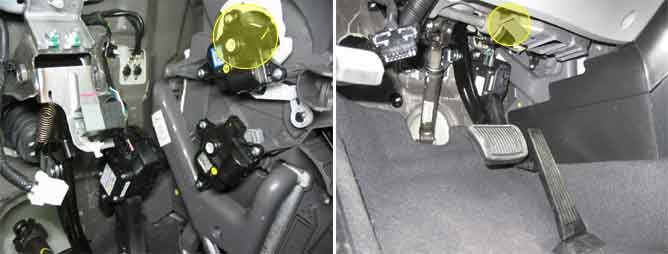

Component Location





General Description

The mode control actuator mounted on heater unit adjusts position of mode door by operating Direction Motor based on signal of A/C control unit. Pressing mode select switch makes the mode control actuator shift in order of vent-> B/L -> floor -> mix.

DTC Description

DTC B1250 sets if Mode Actuator sensor signal is at or over 4.9V for 0.3 seconds.

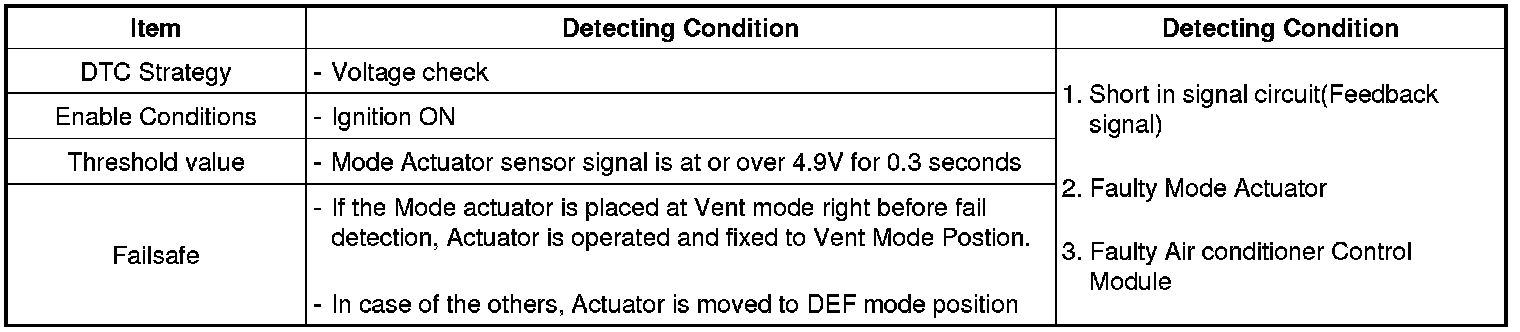

DTC Detecting Condition





Specification

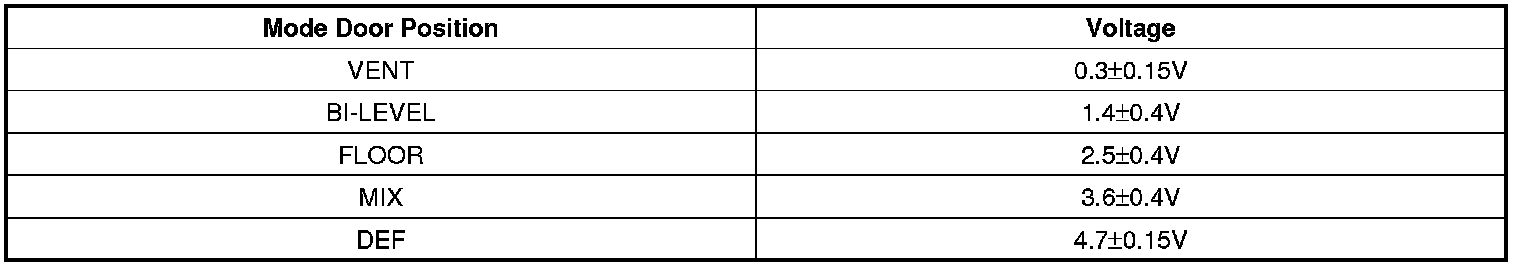

** Voltage value of potentiometer as a function of mode door position.

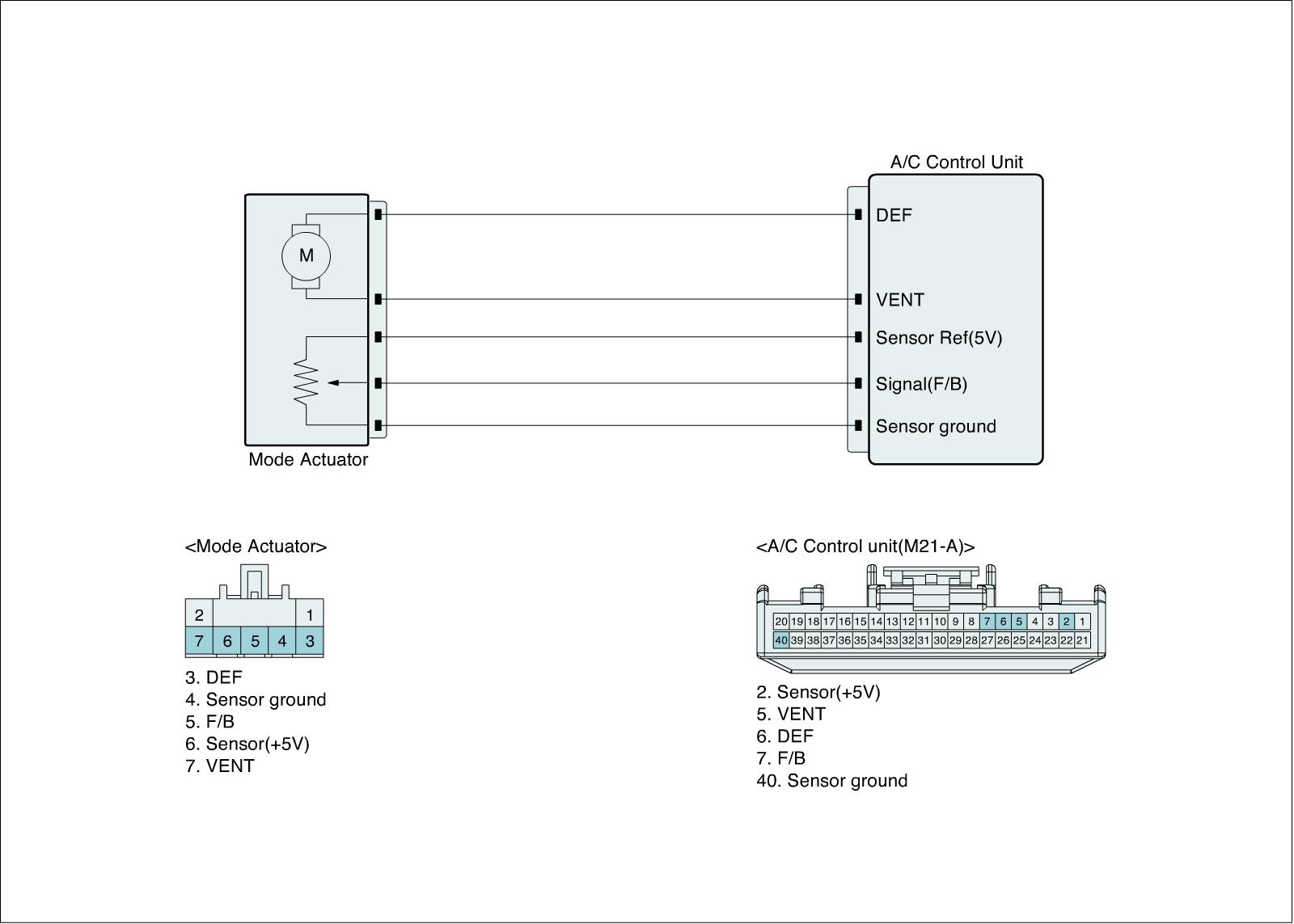

Diagnostic Circuit Diagram
