W/Harness Inspection

Air Conditioner
B1237 Ambient Temperature Sensor Short (Low) - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor connection. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,or damage.
3. Has a problem been found?






Signal Circuit Inspection

Check power in harness
1. Ignition "OFF"

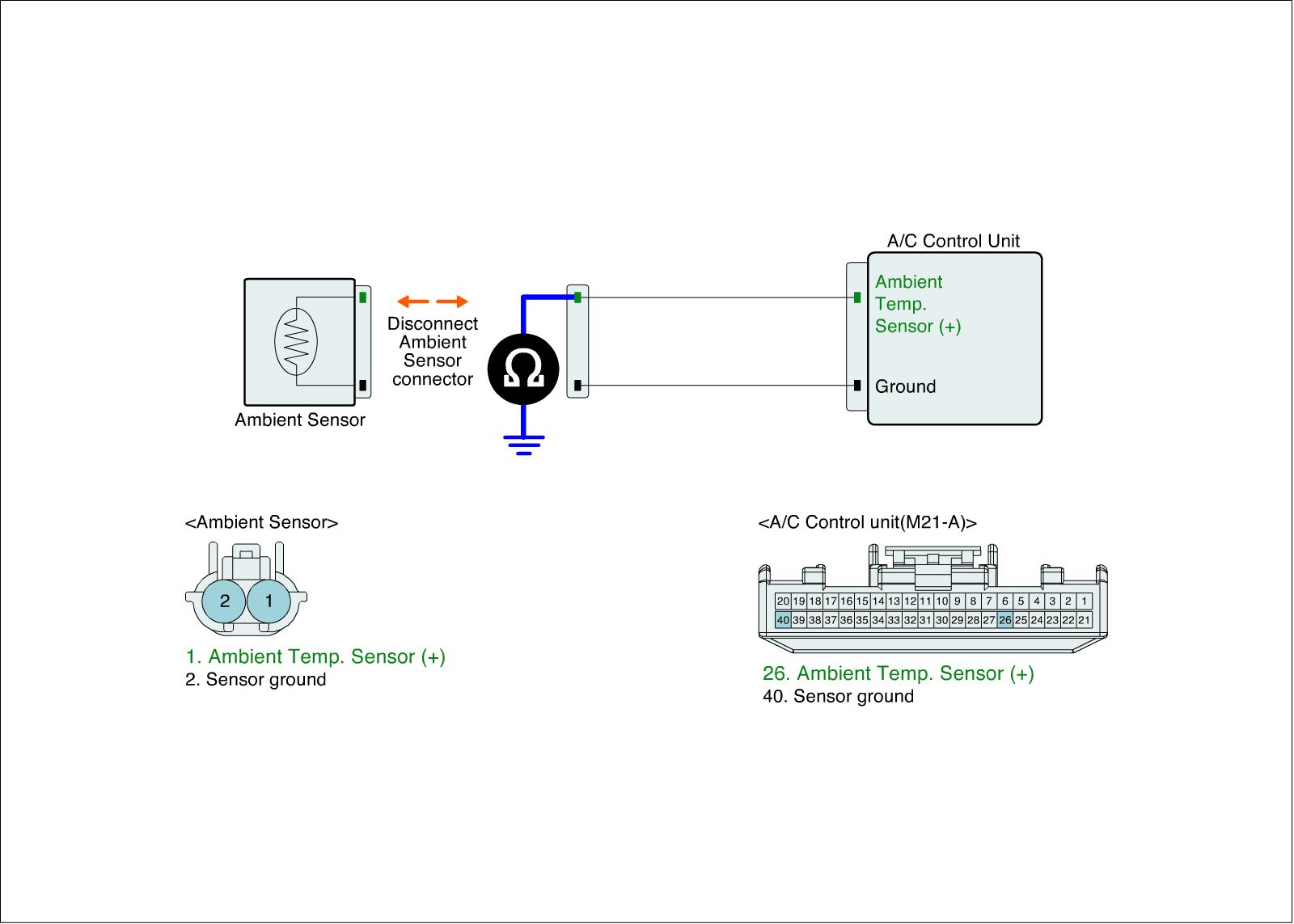

2. Disconnect Ambient sensor and Connect A/C control unit main harness connector.
3. Measure resistance between Power terminal of Ambient sensor harness connector and chassis ground.

Specification :Infinity

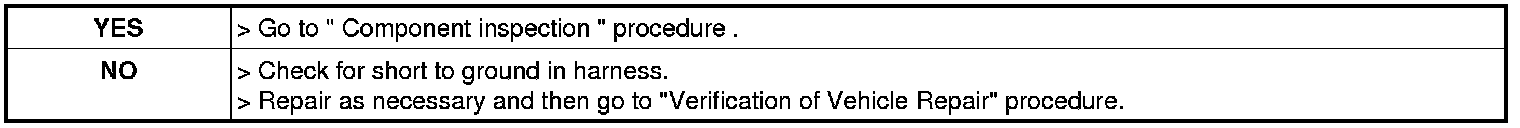

4. Is the measured resistance within specification?
