Component Inspection

Air Conditioner
B1234 In-Car Temperature Sensor Open (High) - Inspection/Repair:_:Component Inspection

Component Inspection

Check Incar temp. sensor
1. Ignition "OFF"
2. Disconnect Incar temp.sensor and Connect A/C control unit main harness connector.
3. Measure resistance between Signal(+) terminal of Incar temp.sensor harness connector and Sensor ground harness connector.(Component side)

Specification :Refer the specifications in fig.1)

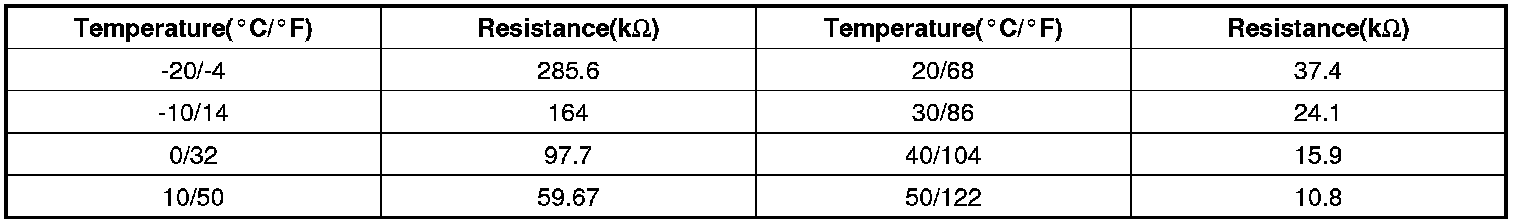

Fig.1) ** Specifications : Resistance value of incar sensor as a function of temperature.
** The actual value may differ from it according to various engine condition.

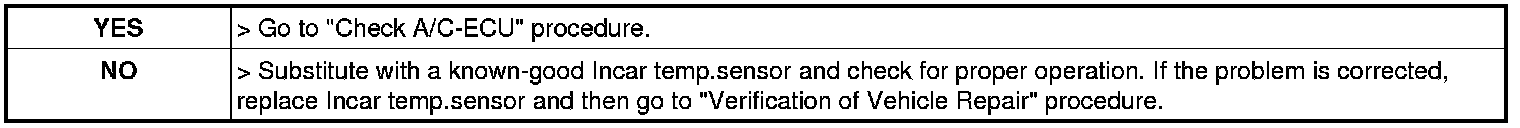

4. Is "resistance" display near the specified value?





Check A/C-ECU
1. Ignition "OFF"
2. Disconnect Incar temp.sensor and Connect A/C control unit main harness connector.
3. Ignition "ON"(ENGINE "OFF").
4. Measure voltage between Signal(+) terminal of Incar temp.sensor harness connector and chassis ground.(Component side)

Specification :Approx. 5V

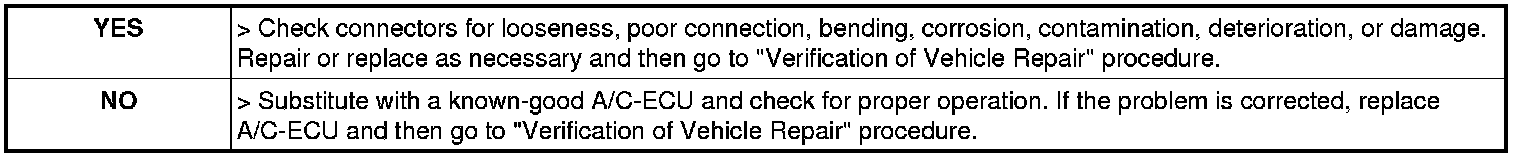

5. Is "voltage" display near the specified value?
