B1208 Intake Potentiometer Open (Low) - General Information

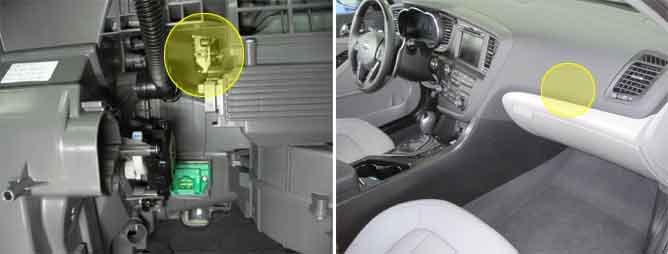

Component Location





General Description

The Intake door is located at the heater unit and controls the source of air entering the HVAC system (Fresh or Recirculation). The door is controlled via a motor that changes the intake door position. The actuator includes a potentiometer that monitors position of intake door. When driver operates the intake switch, the HVAC ECU receives a signal and then commands the door motor to turn intake door to the intended position.

DTC Description

The Airconditioner Control Module sets DTC B1208 if the Feed Back signal of Intake Actuator has been detected open or below 0.1V for 0.3 seconds.

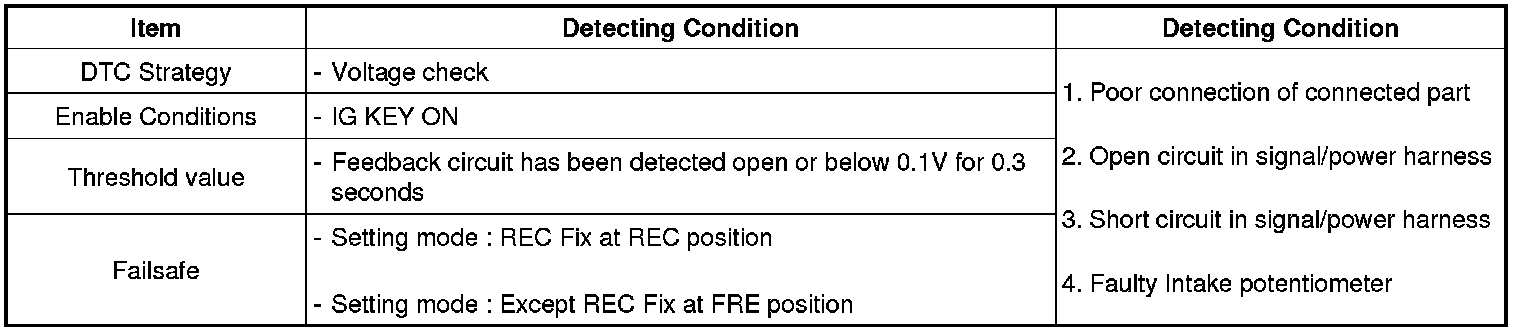

DTC Detecting Condition





Specification

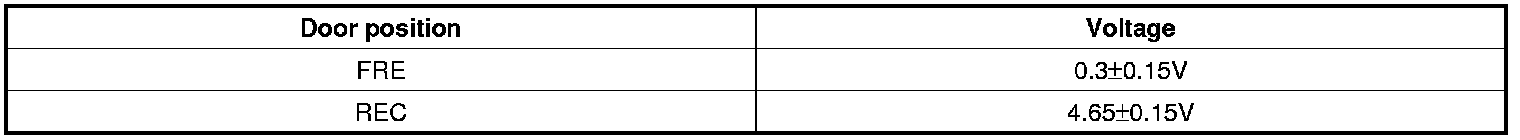

** Voltage value of Intake potentiometer as a function of position of Intake door

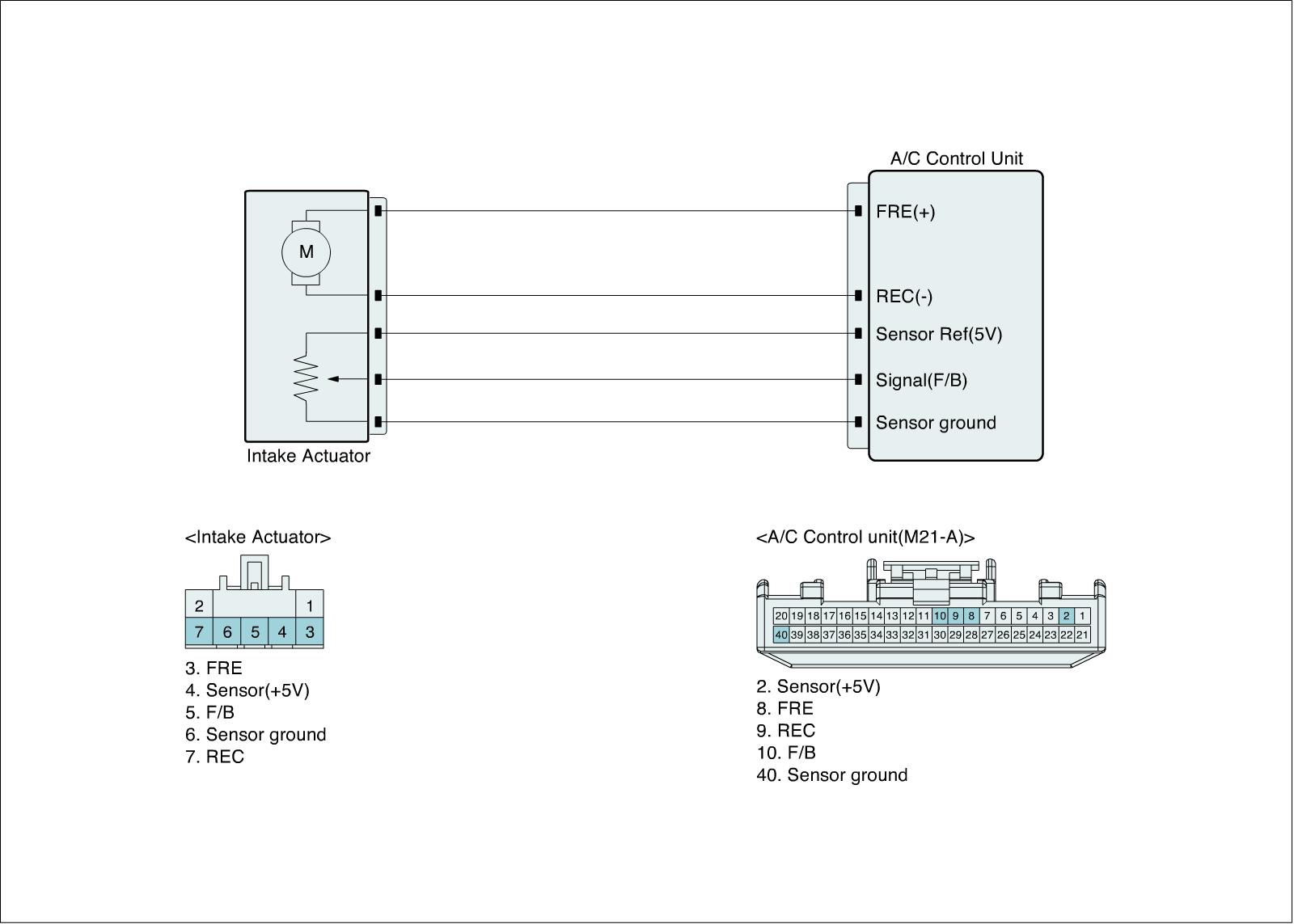

Diagnostic Circuit Diagram
