B1205 Air Mix Potentiometer Short (High)-Passenger - Scantool Diagnostics

Monitor Scantool data

Check Actuation Test
1. Connect scantool with diagnostic connector.
2. Warm up the engine to normal temperature after engine start.

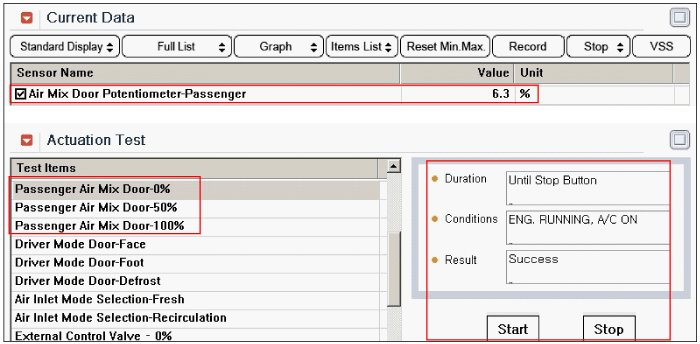

3. Select "Air Mix Door Potentiometer-Passenger" parameter on the current data with scantool.
4. Perform Actuation Test for "Passenger Air Mix Door - 0% / 50% / 100%.
5. With performing Actuation test, check that the value of Air Mix Door Potentiometer is changed and close to the value of Actuation Test.

Specification :Check that the value of Air Mix Door Potentiometer at current data should be close to the value of the acutation test.

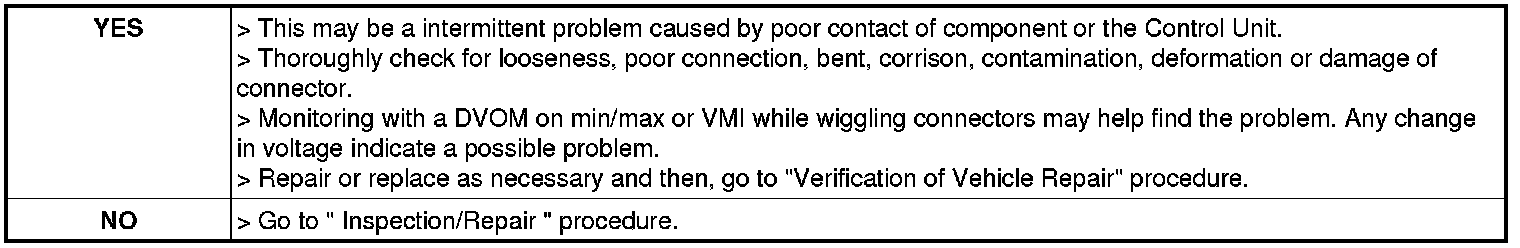

6. Does the value of current data follow in accordance with the each actuation test ?
