Scantool Diagnostics

Airbag(Event #1)
B1102 Battery Voltage Low - Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Current Data" mode.
3. Monitor the "Battery Voltage" parameter on the Scantool.

Specification :Approx. 9 ≤ Vbatt ≤ 16

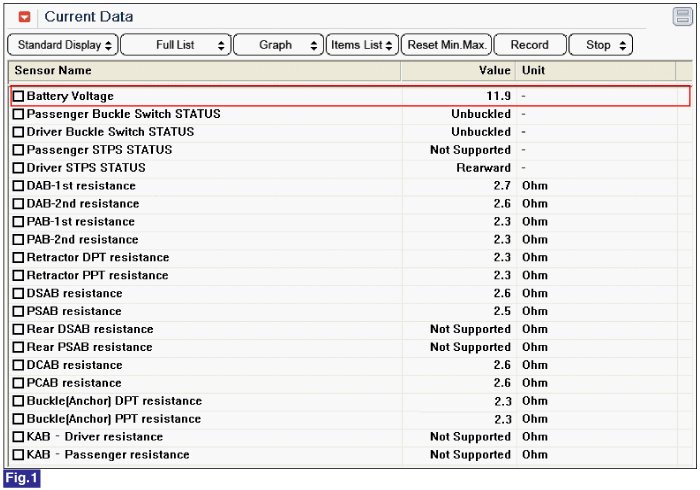

Fig.1) Normal Data
4. Is parameter displayed within specifications?
