W/Harness Inspection

Airbag(Event #1)
B1101 Battery Voltage High - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Charging System Inspection

1. Engine "ON", headight and heatwire "ON".

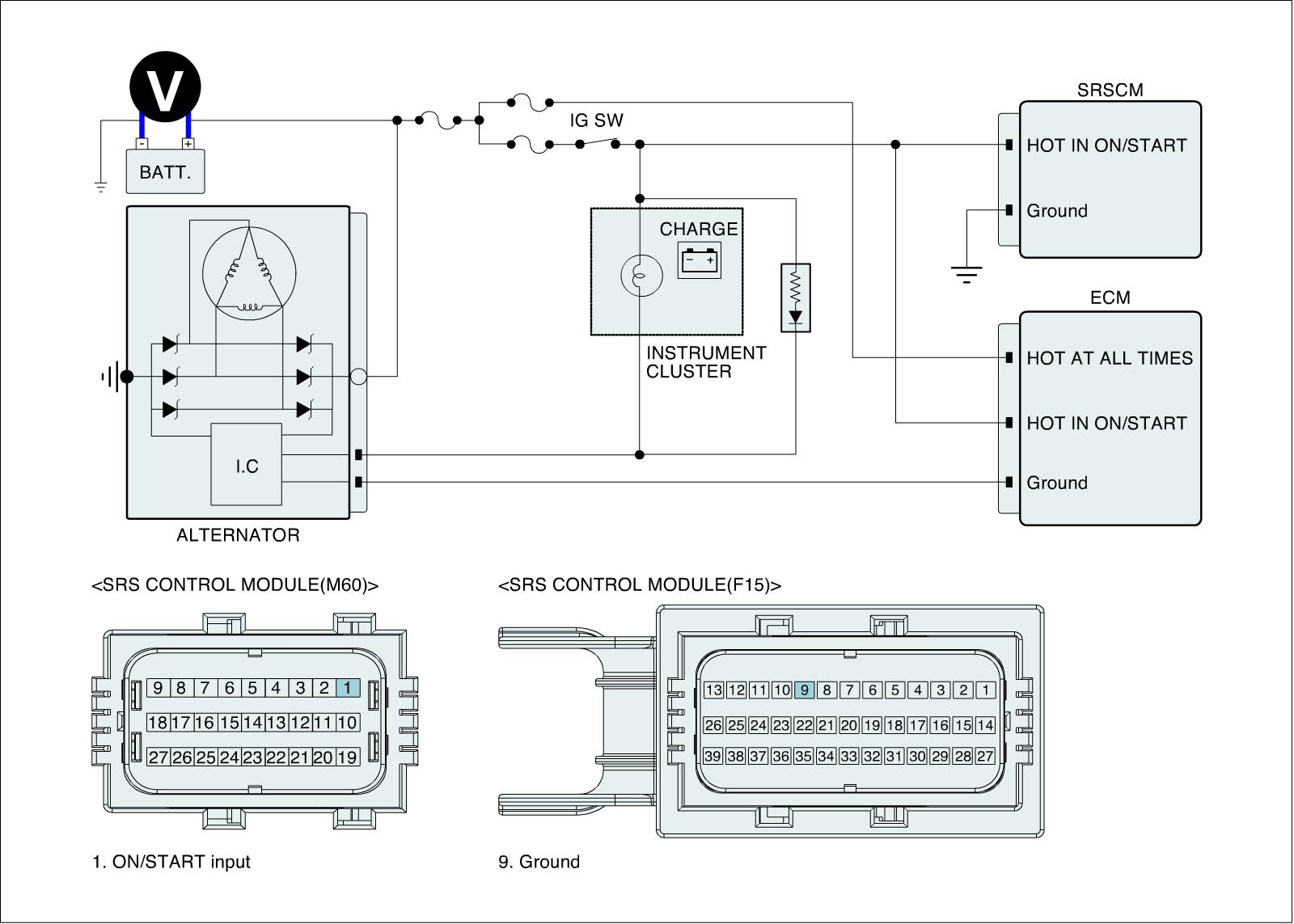

2. Measure voltage between the battery terminal (+) and (-) maintaining ENG. RPM 2,500RPM (idle) over 2 minutes.

Specification :Approx. 9 ≤ Vbatt ≤ 16

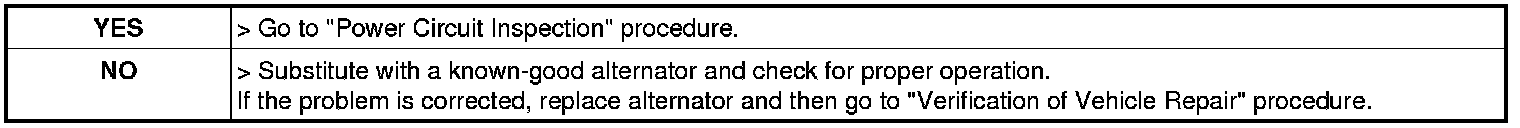

3. Is the measured voltage within specifications?






Power Circuit Inspection

1. Ignition "OFF'.
2. Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
3. Disconnect the SRSCM connector.
4. Connect the battery (-) terminal cable and start engine.

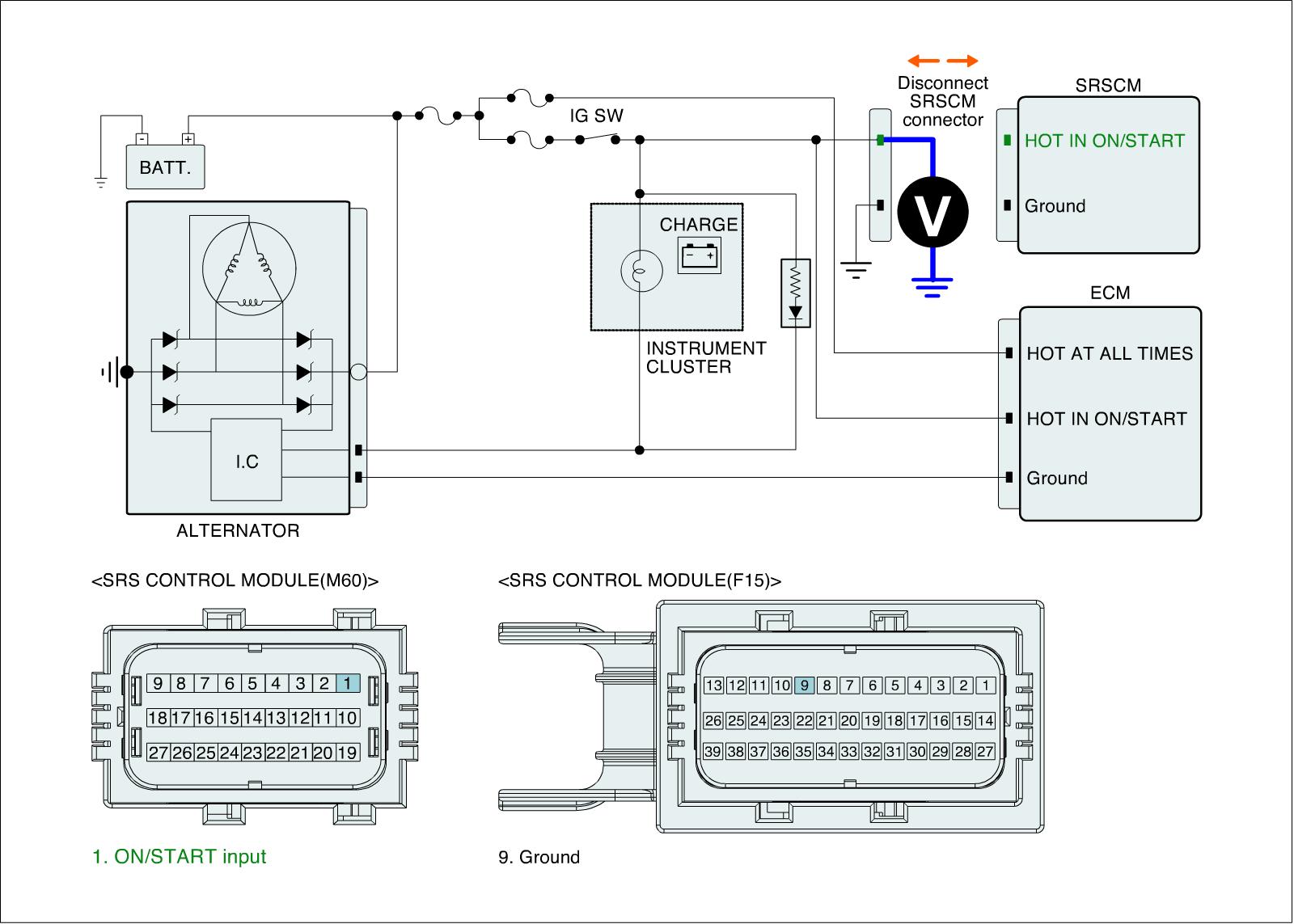

5. Measure voltage between power terminal of the SRSCM harness connector and chassis ground.

Specification :Approx. 9 ≤ Vbatt ≤ 16

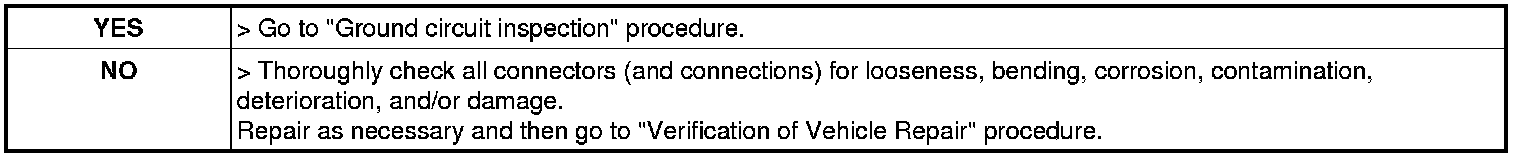

6. Is the measured voltage within specifications?






Ground Circuit Inspection

1. Ignition "OFF".
2. Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
3. Disconnect the SRSCM connector.

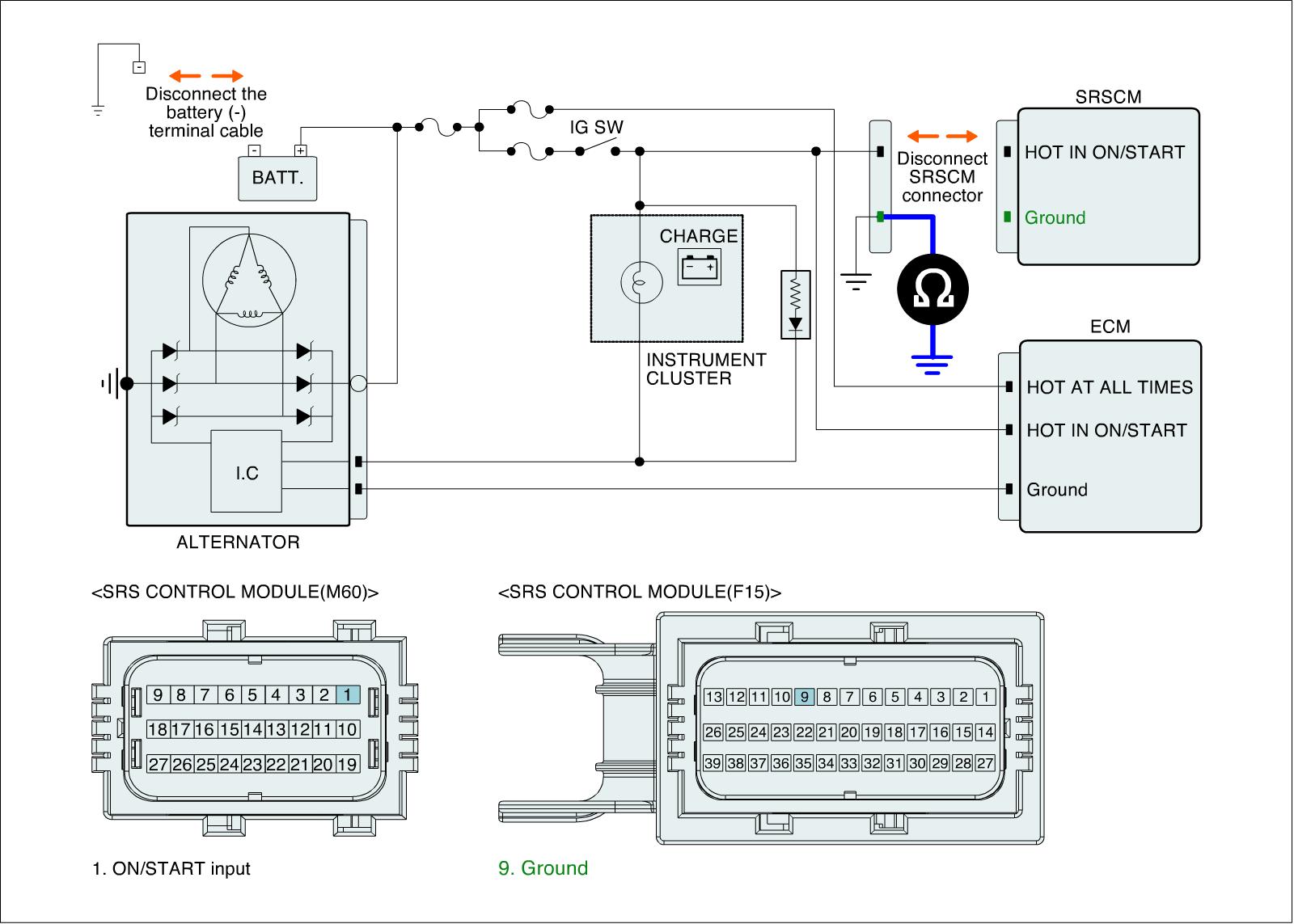

4. Measure resistance between ground terminal of the SRSCM harness connector and chassis ground.

Specification :Approx. 1 Ohms below.

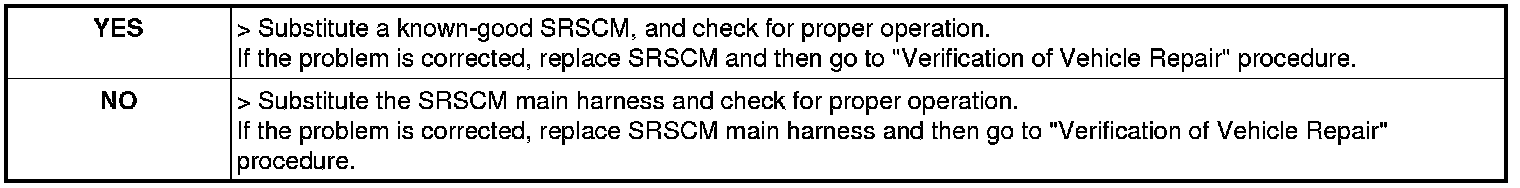

5. Is the measured resistance within specifications?
