Component Tests and General Diagnostics

Inspection

Throttle Position Sensor (TPS)
1. Connect the GDS on the Data Link Connector (DLC).

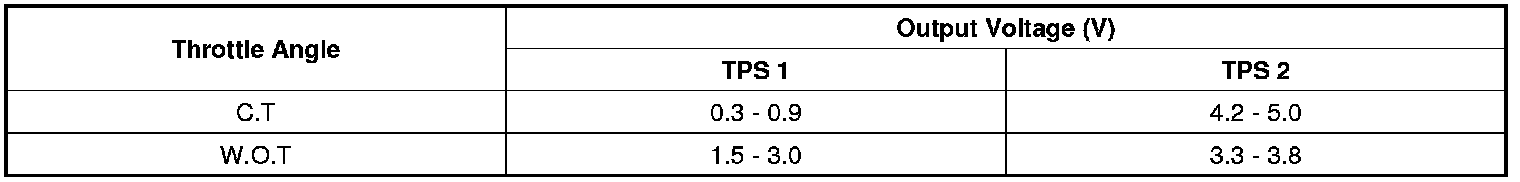

2. Start the engine and measure the output voltage of TPS 1 and 2 at C.T. and W.O.T.





3. Turn the ignition switch OFF and disconnect the scantool from the DLC.
4. Disconnect the ETC module connector and measure the resistance between the ETC module terminals 1 and 2.

Specification:Refer to "Specification"

ETC Motor
1. Turn the ignition switch OFF.
2. Disconnect the ETC module connector.
3. Measure resistance between the ETC module terminals 3 and 6.
4. Check that the resistance is within the specification.

Specification:Refer to "Specification"
