Control Module, A/T

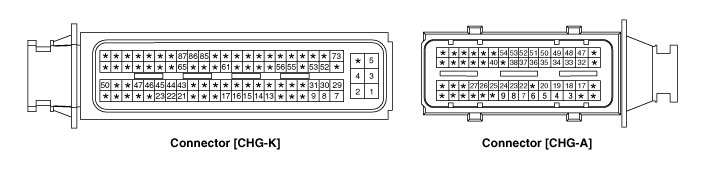

TCM connector and terminal function

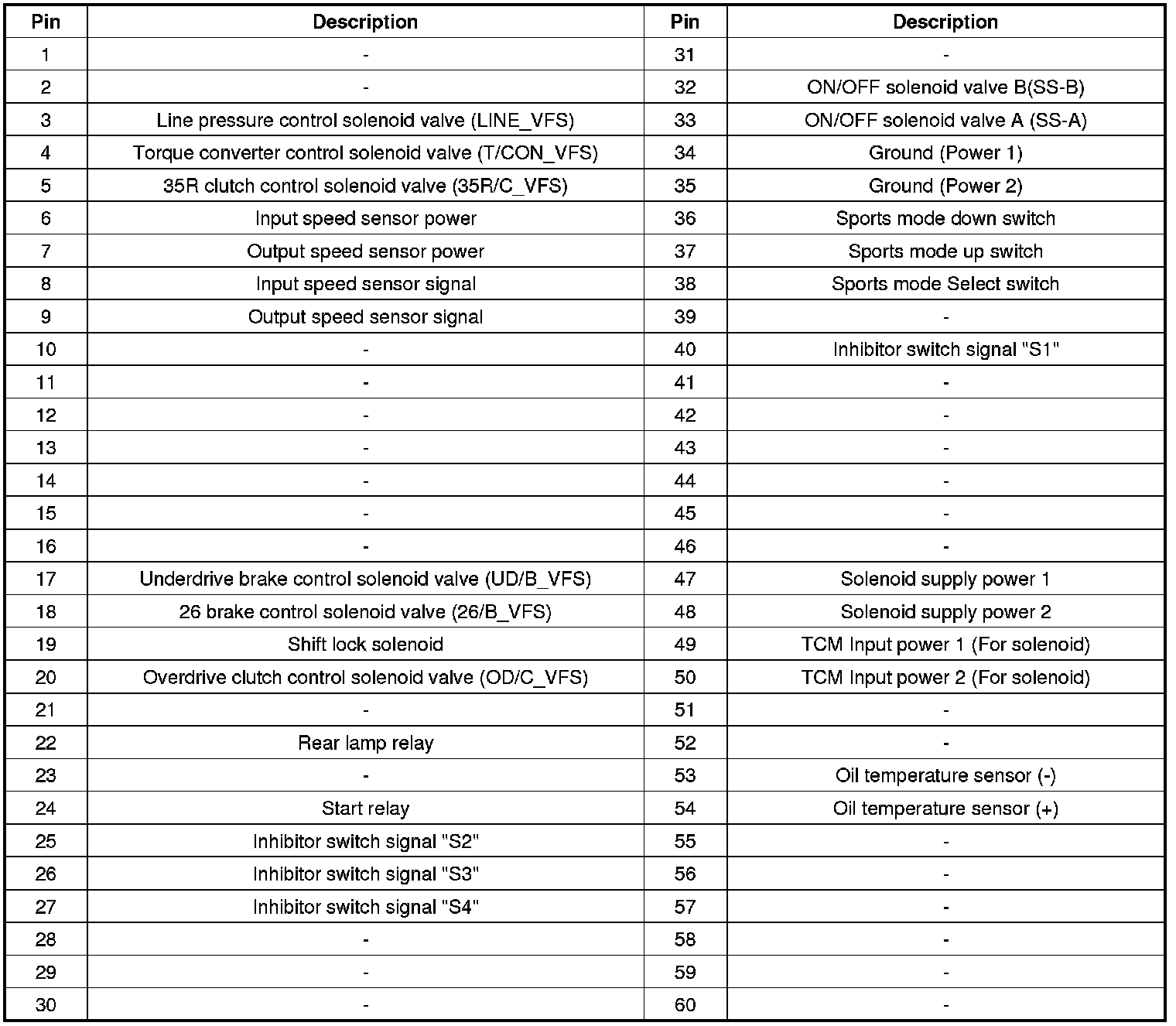

TCM Terminal Function

Connector [CHG-A]

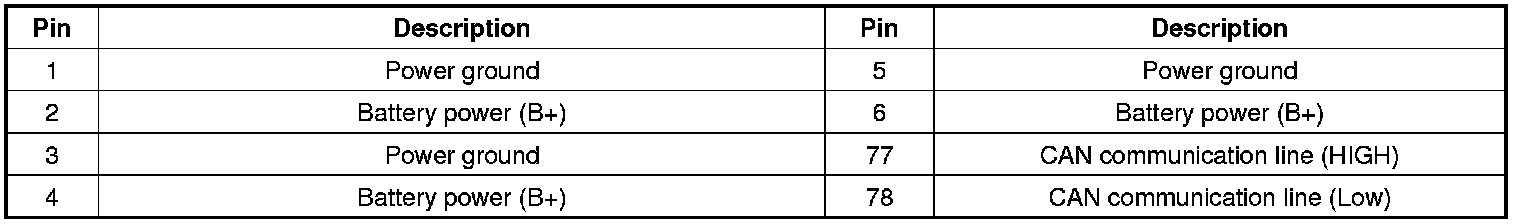

Connector [CHG-K]






TCM Terminal input/ output signal

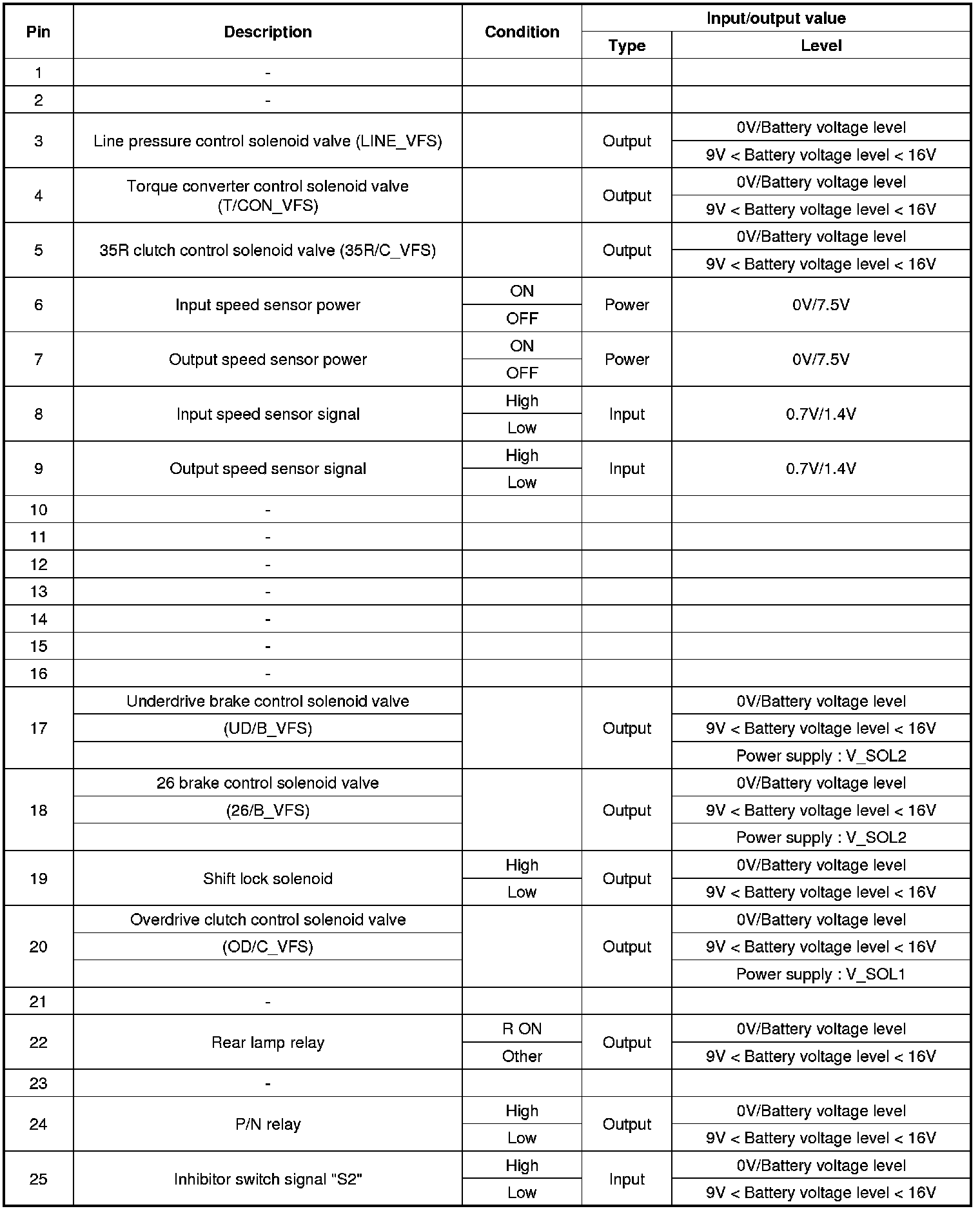

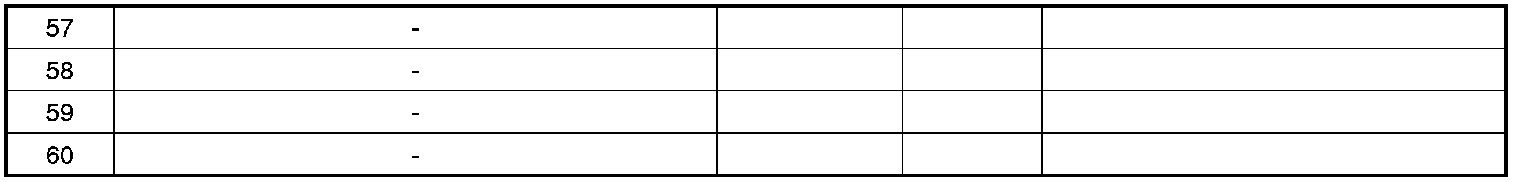

Connector [CHG-A]

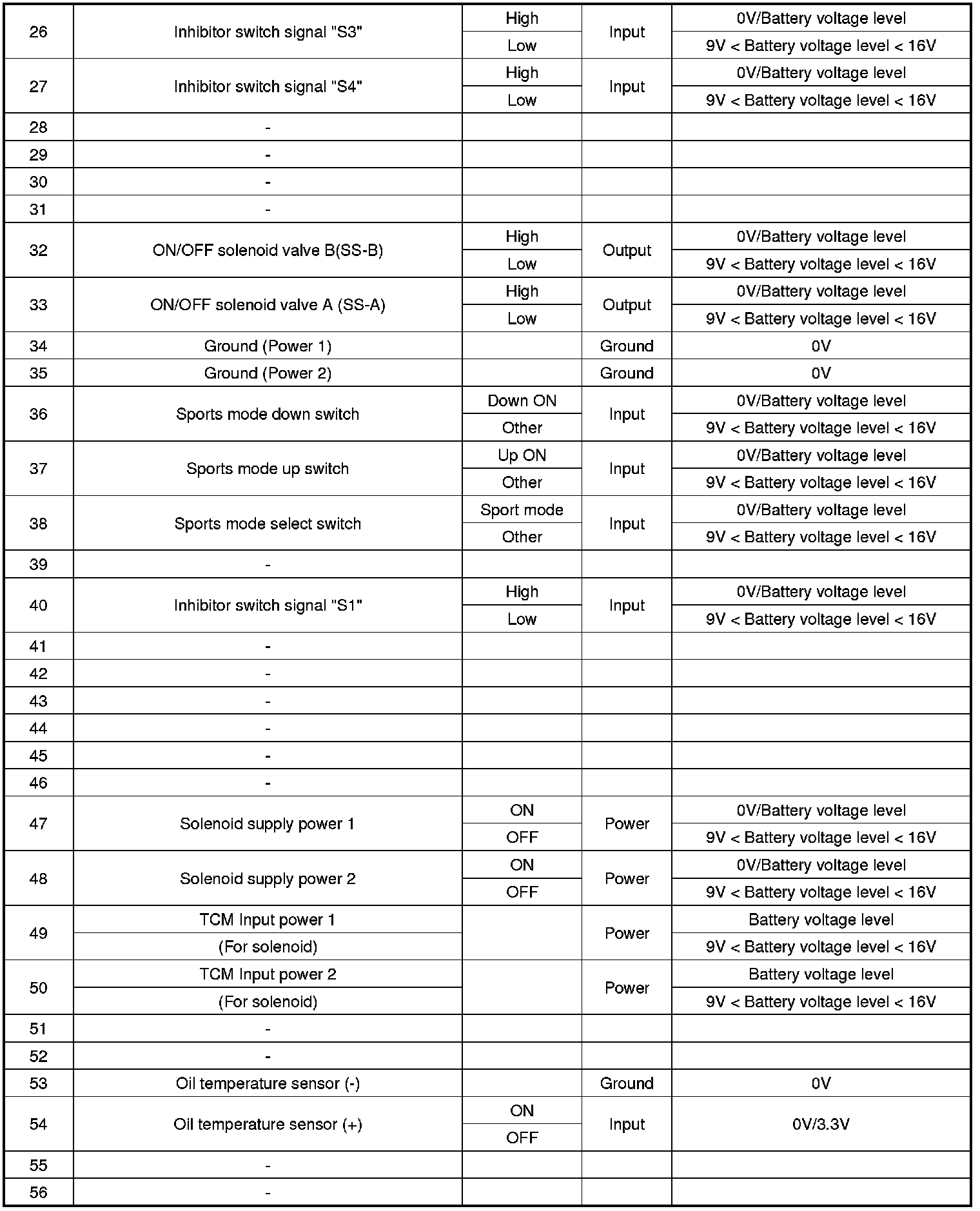

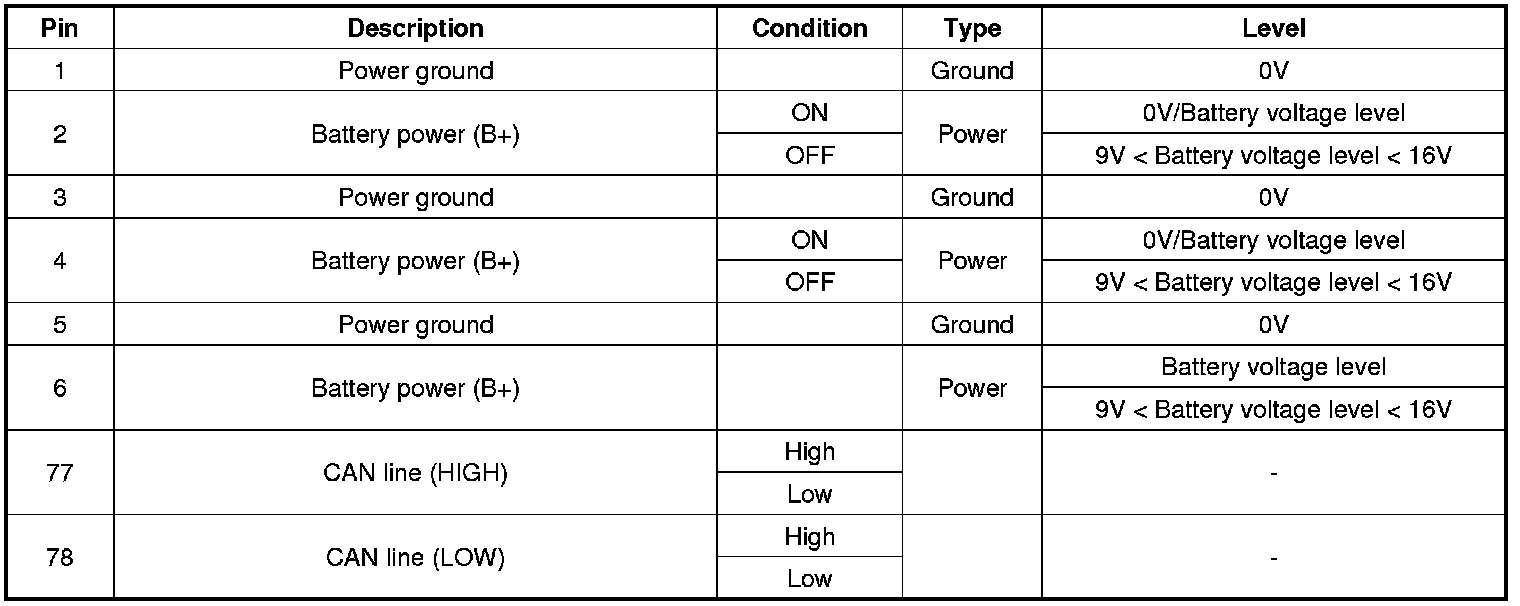

Connector [CHG-K]

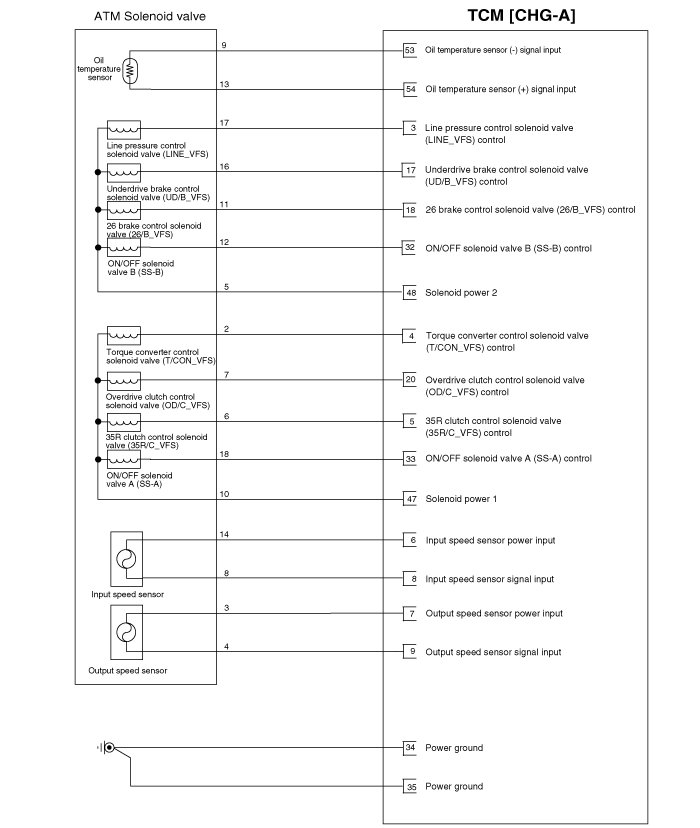

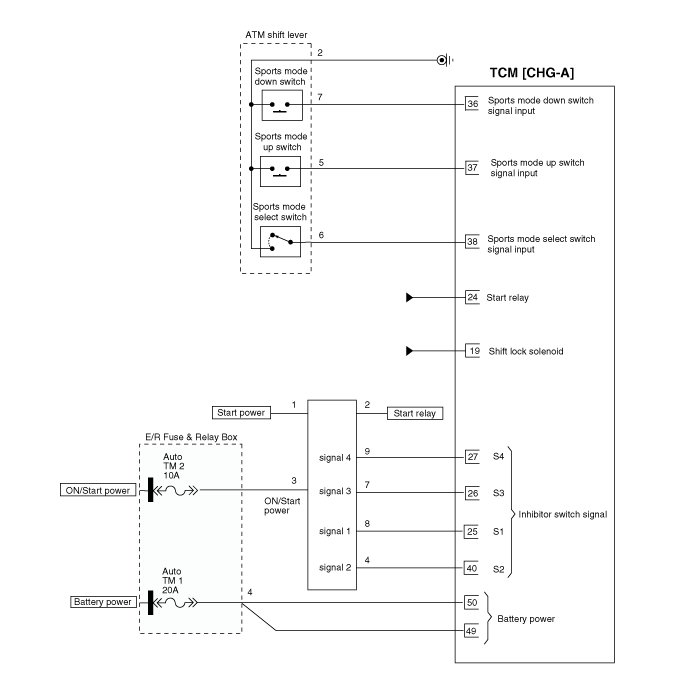

Circuit Diagram
