P0712 Transmission Fluid Temperature Sensor \'A\' Circuit Low Input - Inspection/Repair:_:Component Inspection

Component Inspection

"Oil temperature sensor" Inspection
1. Ignition off.
2. Disconnected Oil temperature sensor connector.

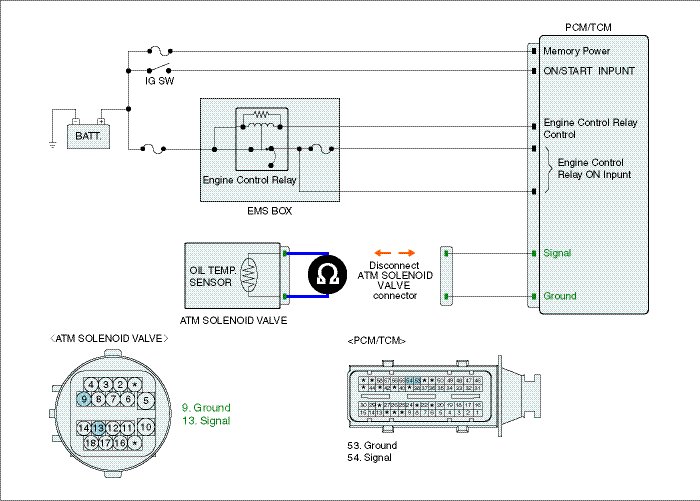

3. Measure a resistance between signal of Oil temperature sensor and chassis ground.

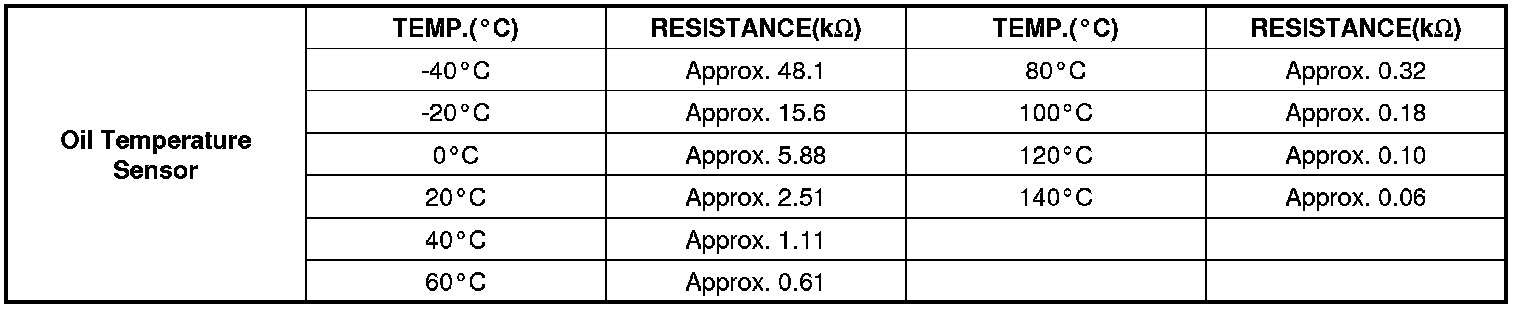

Specification :See blow Oil temperature sensor specification table




[Reference data]

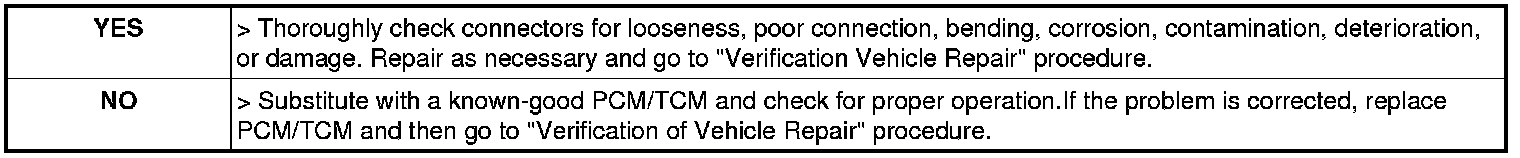

4. Is the measured resistance within specifications?





PCM/TCM Inspection
1. Ignition off & Engine Off.
2. Connect Oil temperature sensor connector.
3. Connect GDS to Data Link Connector(DLC) and select Simulation mode.
4. Input 0 -> 5 vlotage at Oil temperature sensor signal line by simulation mode and Monitoring Oil temperature sensor.

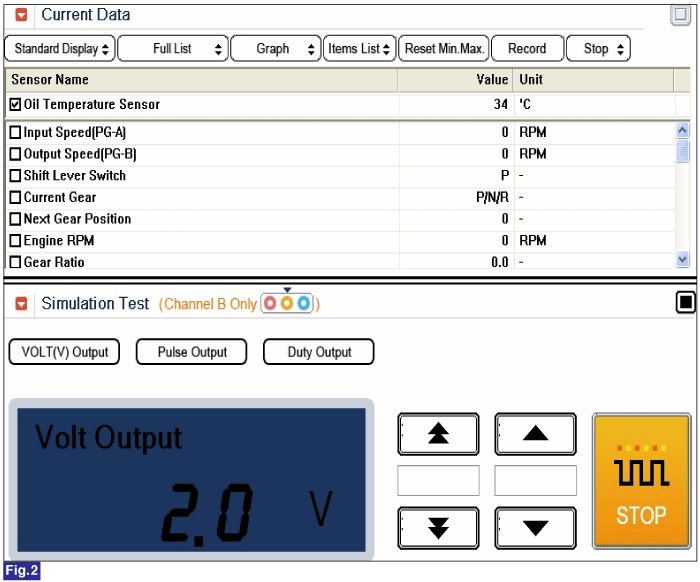

Fig 1) Simulation Output 1.00V -> 73°C
Fig 2) Simulation Output 2.00V -> 34°C
** It is subject to change vehicle condition.
5. Is measured Oil temperature sensor value changed by input voltage?
