General Information

Engine Control
P0704 Clutch Switch Input Circuit Malfunction - General Information

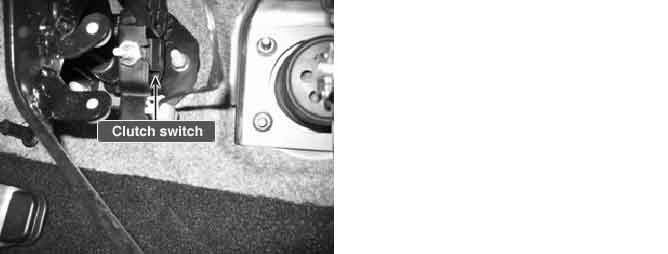

Component Location





General Description

Clutch switch senses the operation of clutch at a M/T vehicle. And the signal is displayed by ON/OFF.

DTC Description

ECM sets P0704 when detects Open or Short in signal circuit.

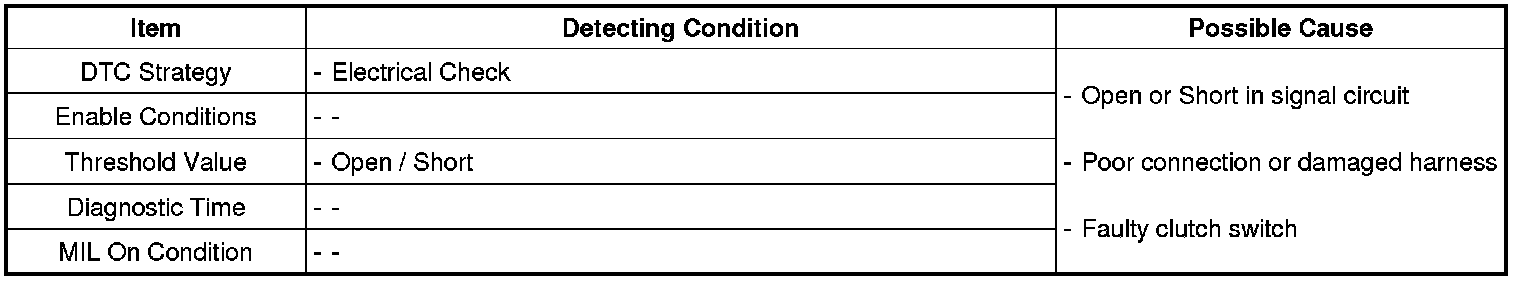

DTC Detecting Condition

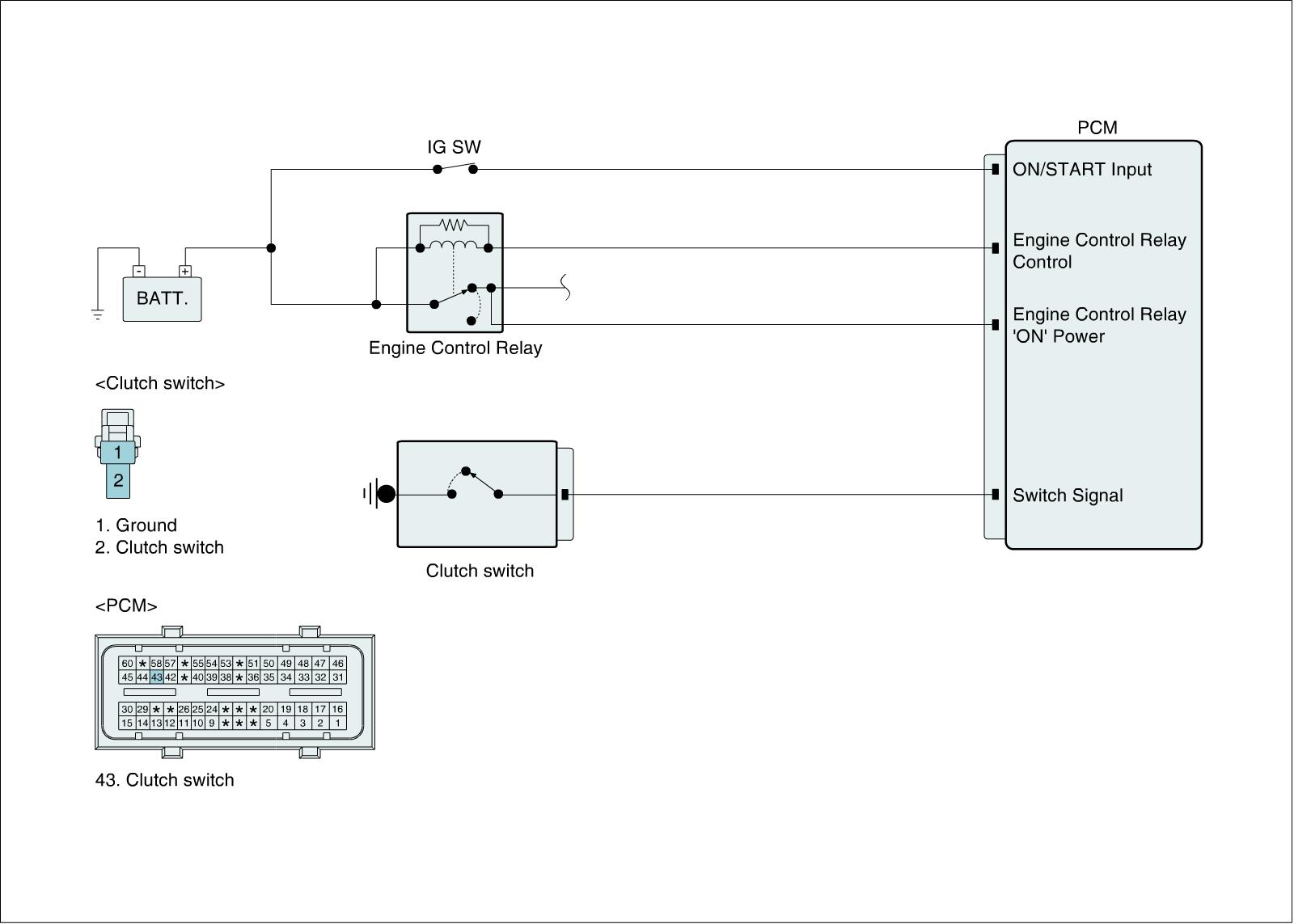

Diagnostic Circuit Diagram
