Component Inspection

Engine Control
P0704 Clutch Switch Input Circuit Malfunction - Inspection/Repair:_:Component Inspection

Component Inspection

1. IG KEY "ON" and select 'Oscilloscope' menu in GDS.
2. Connect probe to signal line of clutch switch.
3. Measure voltage with stepping on and off the clutch pedal.
Specification :

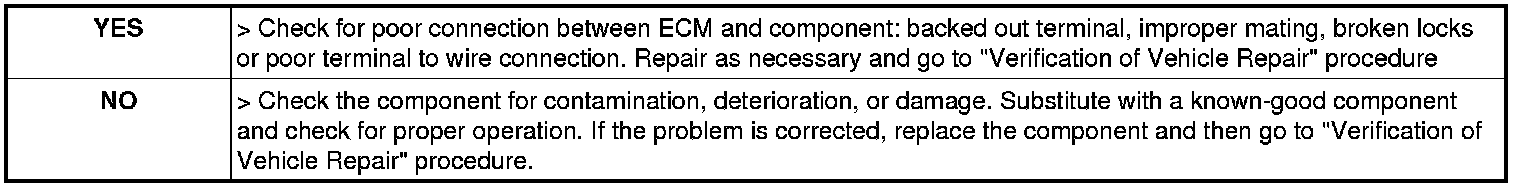

4. Is voltage within specification?
