Component Inspection





Engine Control
P0265 Cylinder 2 Injector Circuit High - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect injector connector.
3. Measure resistance between control terminal and power terminal of the injector connector. (Component side)
Specification

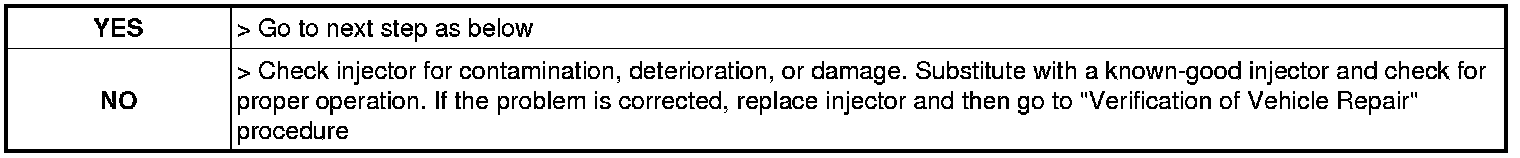

4. Is resistance within the specification?
