P0108 Manifold Absolute Pressure/Barometric Pressure Circuit High Input - Inspection/Repair:_:Component Inspection

Component Inspection

1. Check MAPS performance.
(1) IG "OFF".
(2) Connnect CH A probe to signal terminal of TPS and CH B probe to signal terminal of MAPS connector.
(3) Warm up the engine to normal operating temperature.
(4) Measure signal waveform of MAPS and TPS together by stepping on and off the accellerator pedal.

Specification :

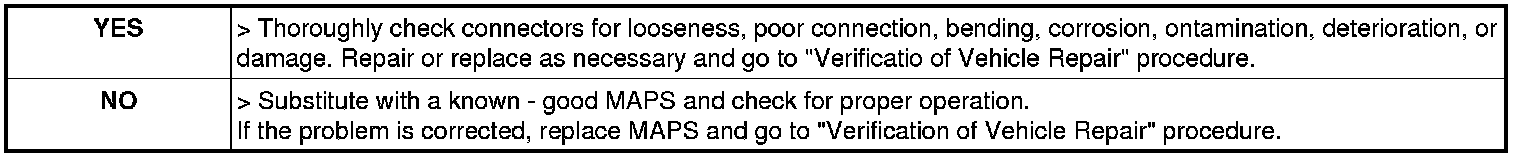

(5) Is the measured signal waveform(Comparison response of TPS with MAPS) O.K ?
