Component Inspection





Engine Control
P0030 HO2S Heater Control Circuit (Bank 1 / Sensor 1) - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF"

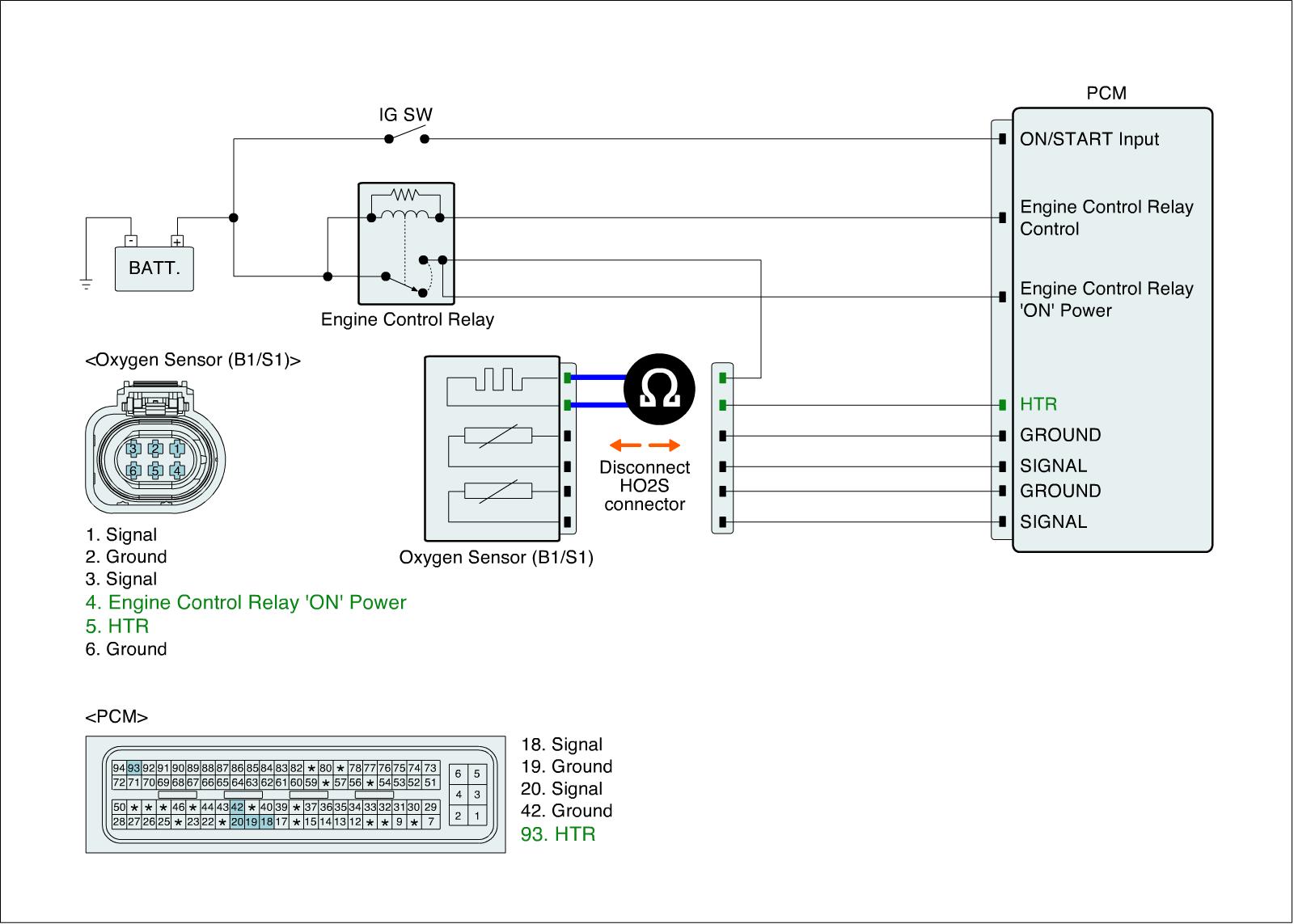

2. Measure resistance between power and control terminals of HO2S(B1/S1) heater(Component Side).
Specification :









3. Is resistance within specification?
