General Information

Power Steering
C2413 Motor current fail (current over) - General Information

Component Location





General Description

EPS uses an electric motor to provide directional contol to the driver.
EPS CM always monitors current of the motor because power of the EPS system is decided by current.

DTC Description

EPS CM compares current measured by internal current sensor with predefined value at same torque condition.
EPS CM sets this code and inhibits EPS function if a gap between two values is out of specified range.

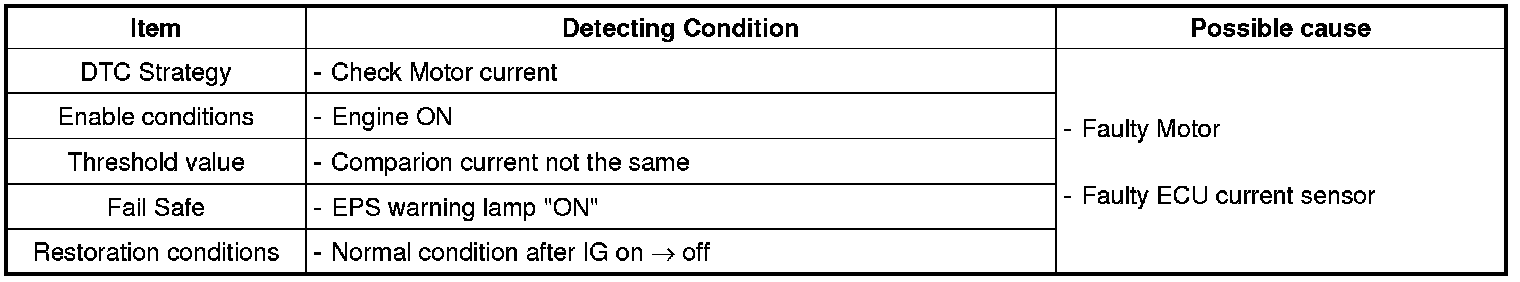

DTC Detecting Condition
