General Information

Power Steering
C1704 ECU Fail-Safe Relay Fail - General Information

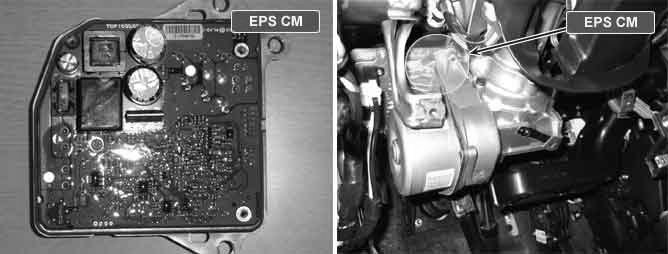

Component Location





General Description

EPS CM has a relay to cut off current to a motor if abnormal operation is detected.
EPS CM checks a condition of relay while ig ON.

DTC Description

EPS CM sets this code and turns on warning lamp if a relay can't be on state when it receives a commend to turn it on.

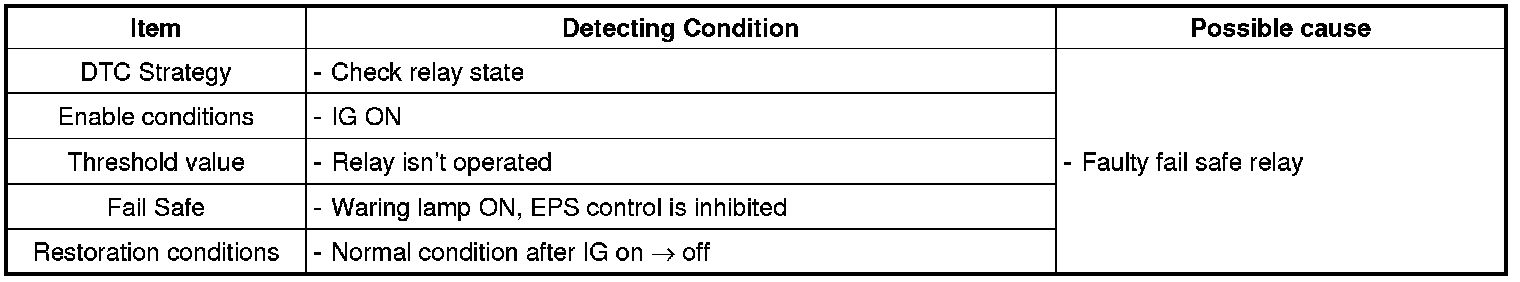

DTC Detecting Condition
