Scantool Diagnostics

Electronic Stability Control
C1513 Brake switch error - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC)
2. Ignition "ON" & Engine "OFF".
3. Press the brake pedal.
4. Monitor the "BRAKE SWITCH" parameter on the scantool.

Specification :It is changed to ON/OFF.

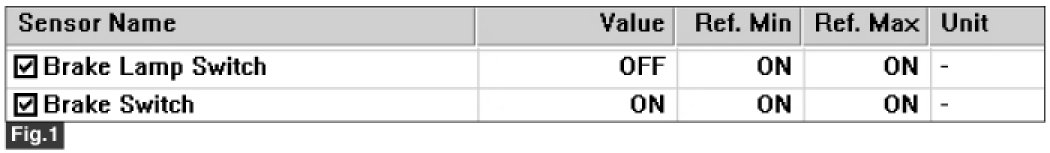

Fig 1) Service data at not pressing the break pedal

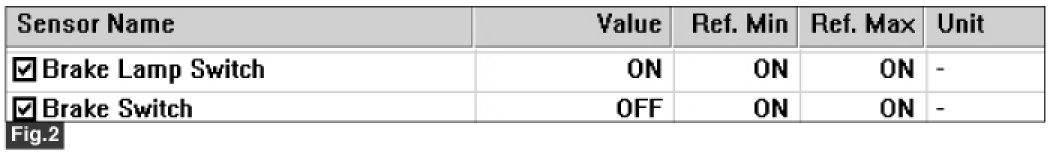

Fig 2) Service data at pressing the break pedal

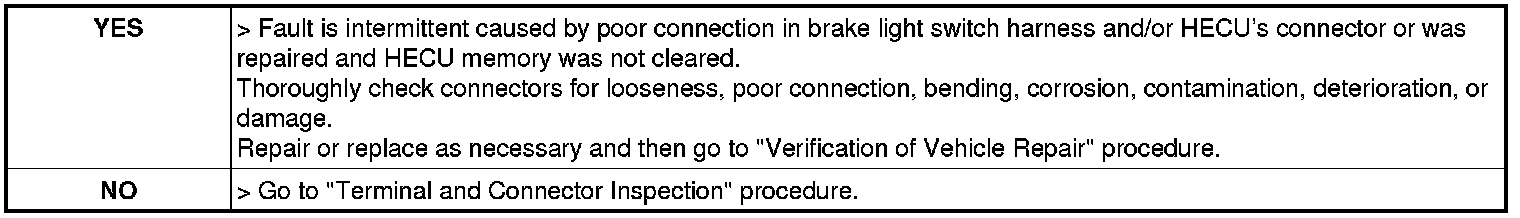

5. Whenever brake pedal is pushed down, is the brake switch's scantool data changed ON/OFF?
