C1513 Brake switch error - Inspection/Repair:_:Component Inspection

Component Inspection

Brake light switch Check
1. Ignition "OFF" & Engine "OFF".
2. Disconnect the stop lamp switch connector.

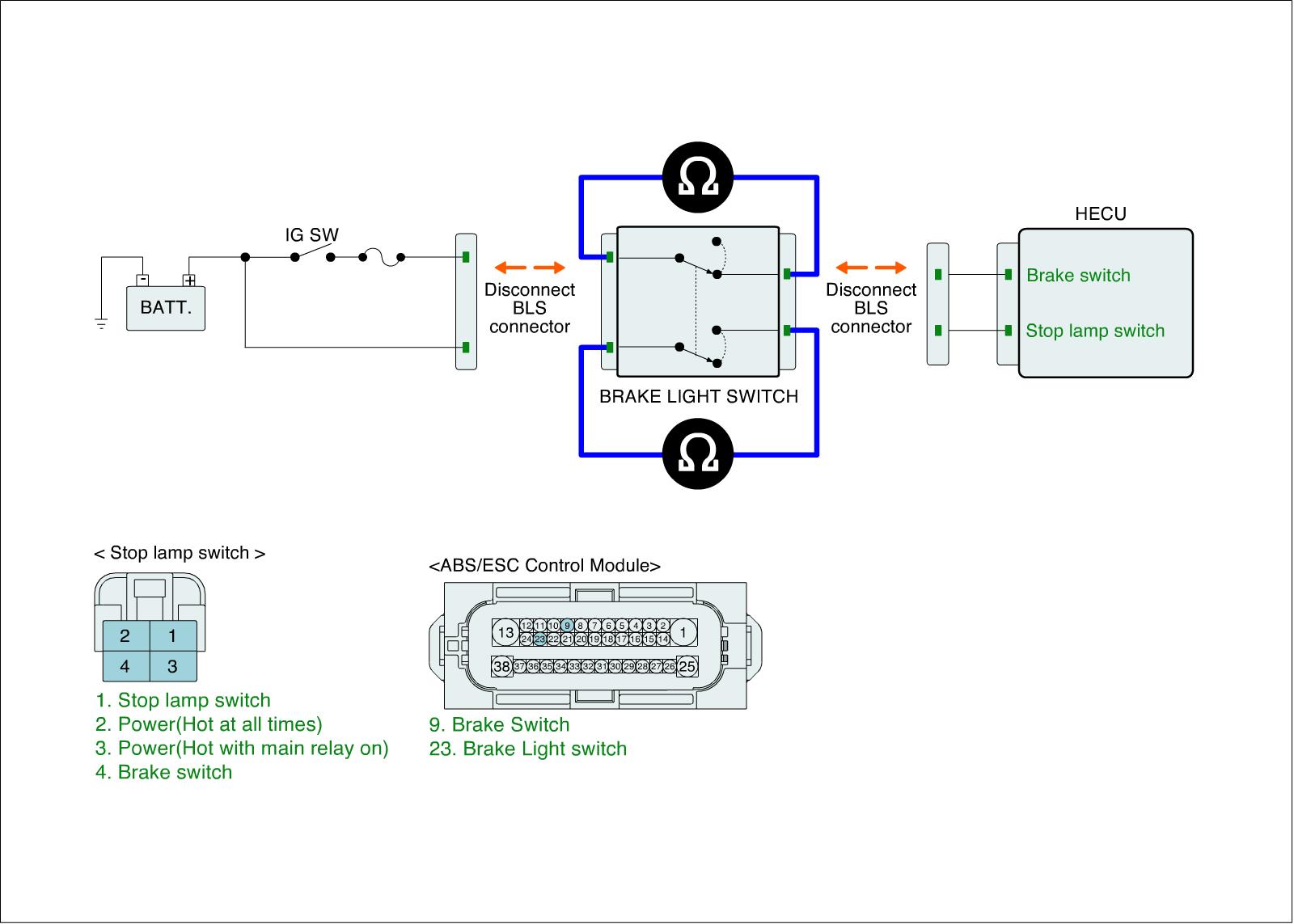

3. Measure resistance between power terminal and siganl terminal of the stop lamp switch connector.

Specification :
Resistance between terminals of the stop lamp switch - InfinityOhms (when the plunger is pushed down), 0Ohms (when the plunger isn't pushed down).
Resistance between the terminals of the brake switch - InfinityOhms (when the plunger is not pushed down), 0Ohms (when the plunger is pushed down).

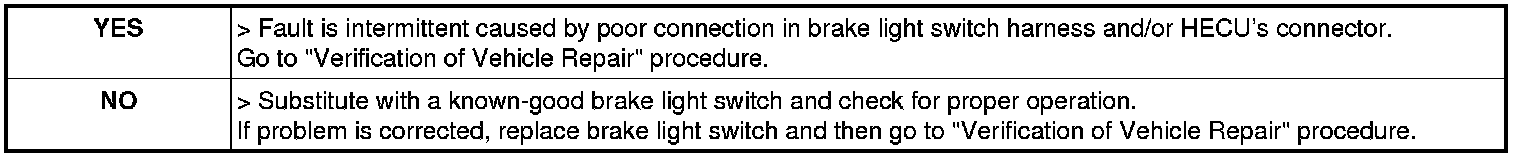

4. Is the measured value within specifications?
