Component Inspection

Electronic Stability Control
C1503 TCS/ESC(ESP) Switch error - Inspection/Repair:_:Component Inspection

Component Inspection

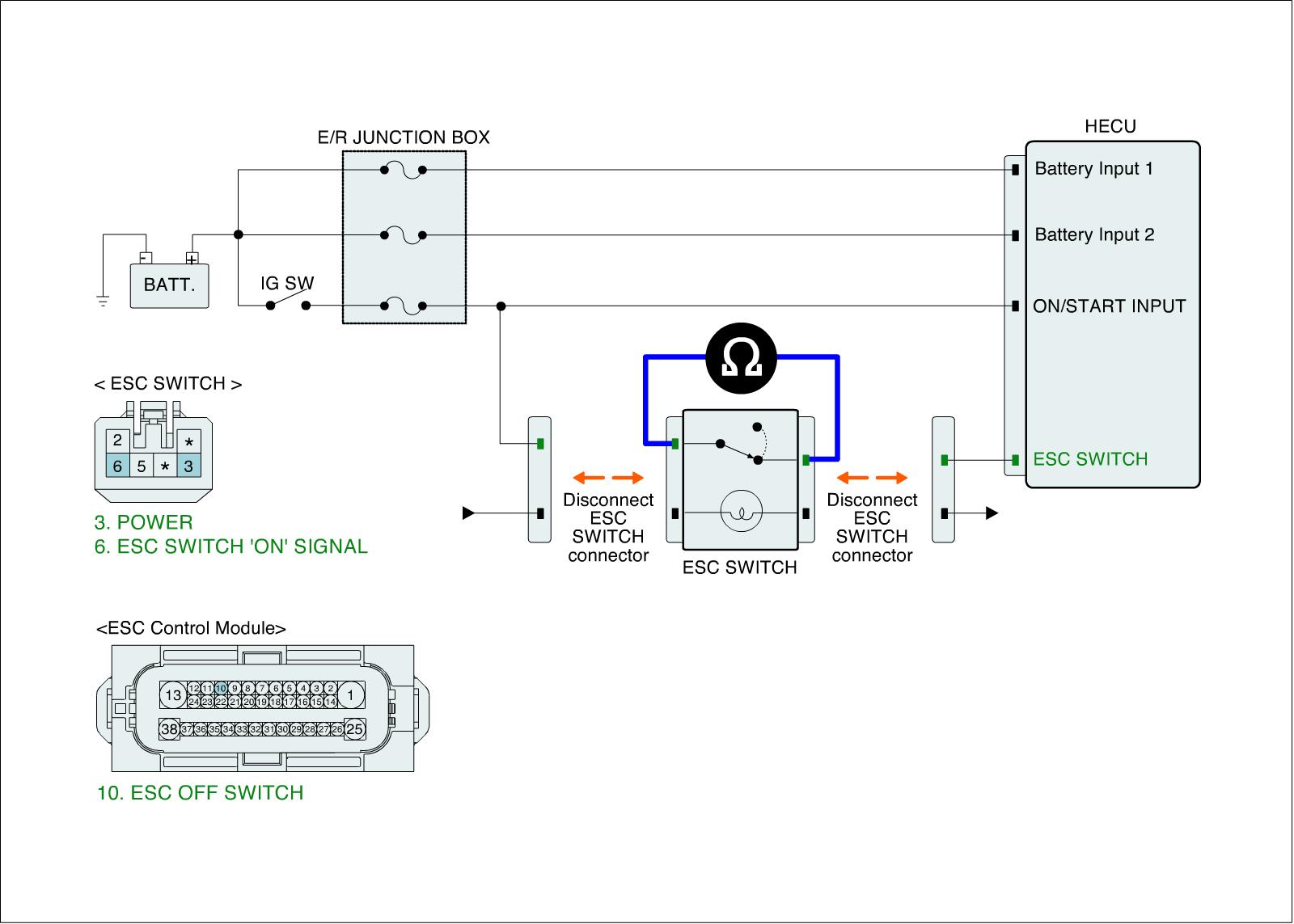

ESC switch Check
1. Ignition "OFF" & Engine "OFF".
2. Disconnect the ESC switch connector.
3. Measure resistance between power terminal and siganl terminal of the ESC switch connector.

Specification :Approx. below 1Ohms (In case of pressing the ESC switch)
Approx. Infinity Ohms (In case of not pressing the ESC switch)

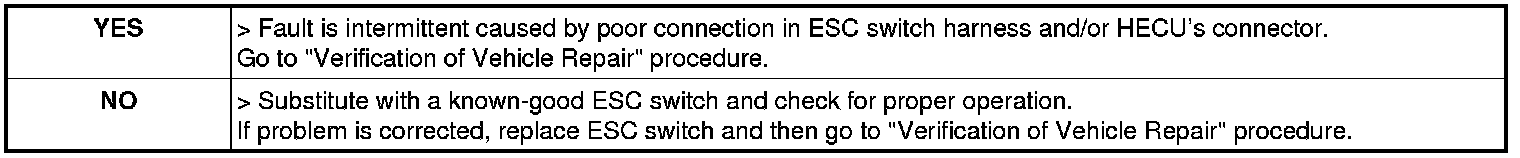

4. Is the measured value within specifications?
