Scantool Diagnostics

Tire Pressure Monitoring
C1332 Sensor 1 Fault - Scantool Diagnostics

Monitor GDS Data

1. Park the vehicle on an even ground.
2. Connect GDS to Data Link Connector(DLC).
3. IG "ON"

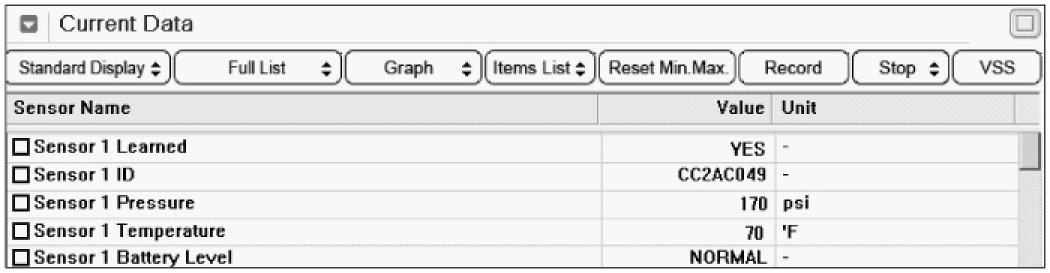

4. Monitor the service data related to TPMS sensor on the GDS.

Specification:the parameters related to Sensor 1 is displayed normally.

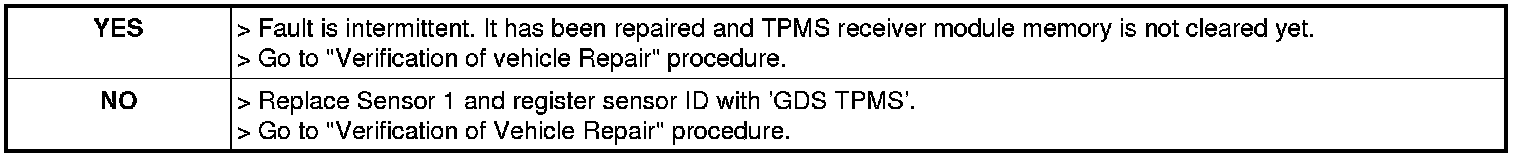

5. Are the parameters normal?
