Component Inspection

Tire Pressure Monitoring
C1325 Sensor 4 Over Temperature - Inspection/Repair:_:Component Inspection

Component Inspection

[Check wheel / tire]
1. Cool the heat of the Sensor 4's wheel / tire.
2. IG OFF & IG ON. And Wait for 1 minute.
3. Monitor the parameter related to 'Sensor 4 Temperature' on the GDS.

Specification :Below 239°F(115°C)

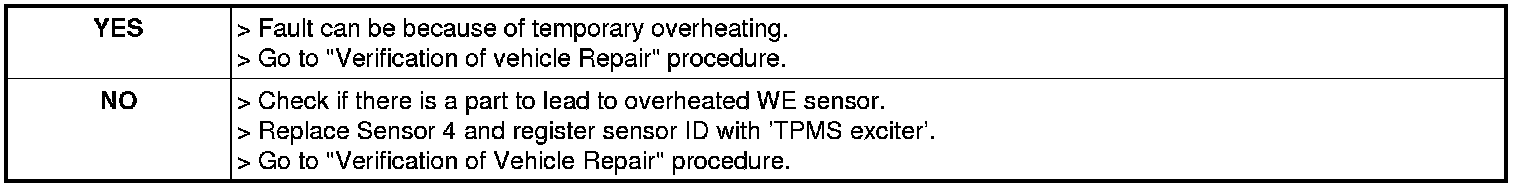

4. Is parameter within specifications?
