Scantool Diagnostics

Tire Pressure Monitoring
C1300 LF/RF External Interference Failure - Scantool Diagnostics

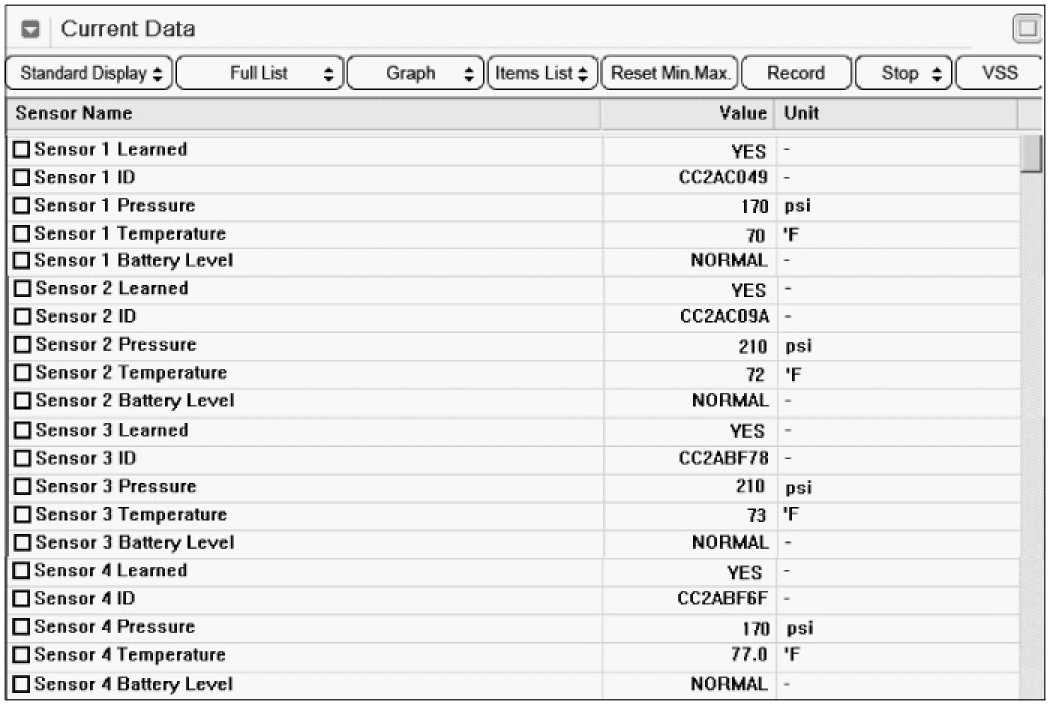

Monitor GDS Data

1. Park the vehicle on an even ground.
2. Connect GDS to Data Link Connector(DLC).
3. IG "ON"
4. Monitor the parameters of 4 active WE sensors data.

Specification :the parameters related to 4 active WE sensors are displayed normally.

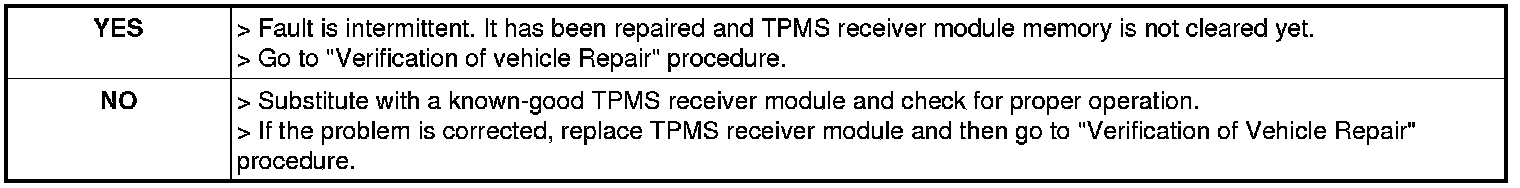

5. Are the parameters normal?
