General Information

Tire Pressure Monitoring
C1300 LF/RF External Interference Failure - General Information

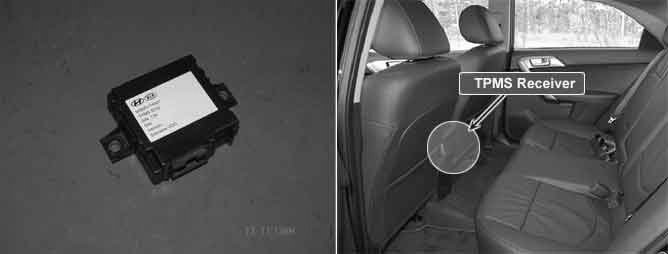

Component Location





General Description

TPMS Receiver is located in the back side of center console. The operating battery of TPMS module is supplied from the vehicle battery. Data such as Tire pressure, Temperature, Acceleration ,TPMS sensor battery status and TPMS sensor valve ID from TPMS sensors are transmitted to TPMS receiver in the form of RF signal. TPMS module accomplishes Tire Monitoring and Warning Logic with received data.

DTC Description

This DTC indicates that a commumication failure is occurred between micro controller and RF receiver in the TPMS ECU. In such a case no WE sensor data can be received/processed by the TPMS algorithm.

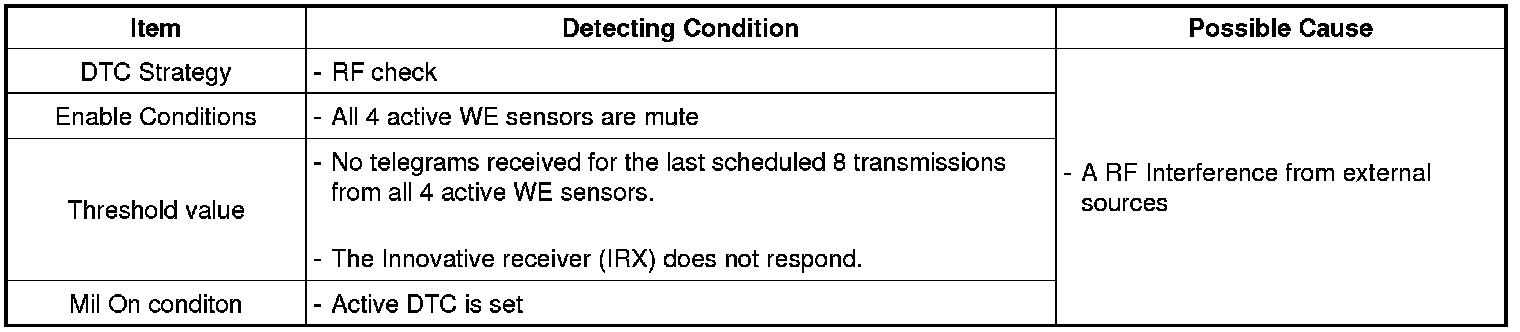

DTC Detecting Condition
