Scantool Diagnostics

Electronic Stability Control
C1261 Steering Angle Sensor Not Calibrated - Scantool Diagnostics

Monitor Scantool Data

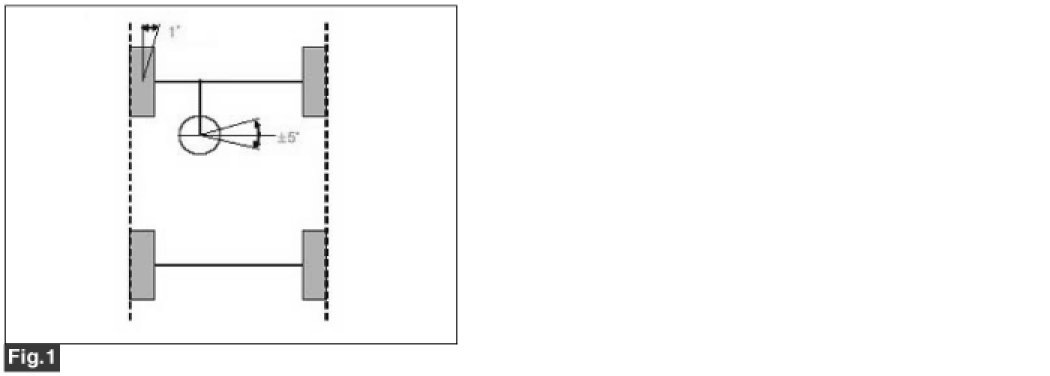

1. Line up wheels like figure 1.
(1) Perform the wheel alignment.
(2) Set the steering wheel so that the wheels point straight ahead.
(3) Go ahead and Go back the vehicle 2 - 3 times without holding steering wheel.
2. Connect scantool to Data Link Connector(DLC).

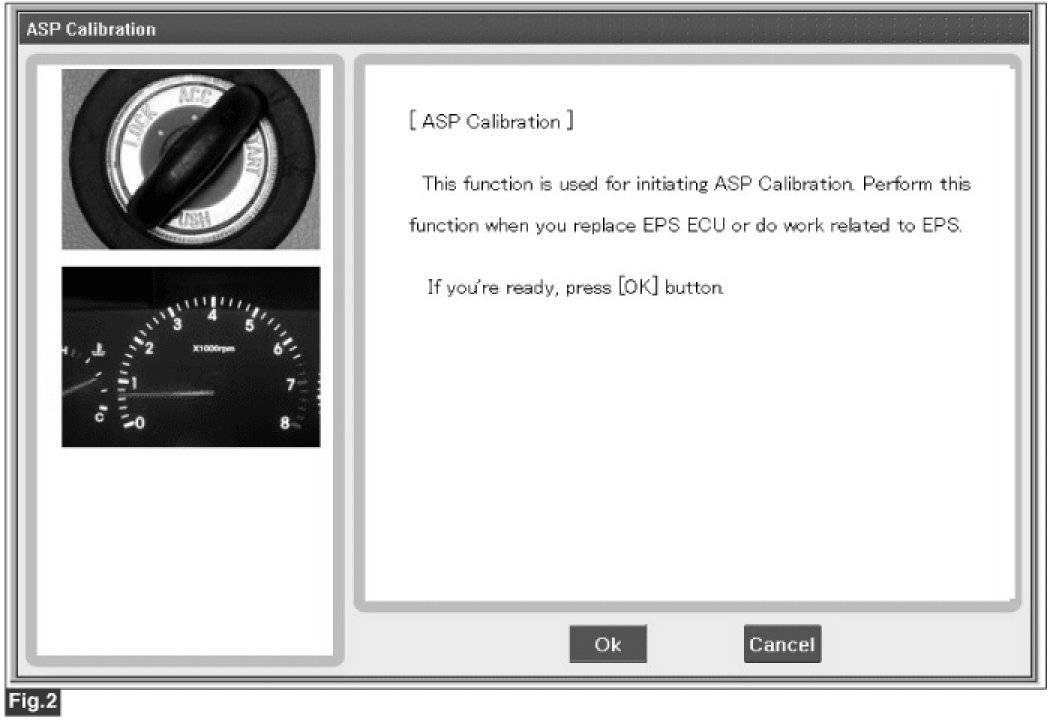

3. Perform SAS(ASP) calibration. (figure 2)
4. Disconnect scantool from Data Link Connector(DLC).
5. Check the condition of "SAS ZERO SET" by oprerating the vehicle (turn the right and the left at least more than one time)

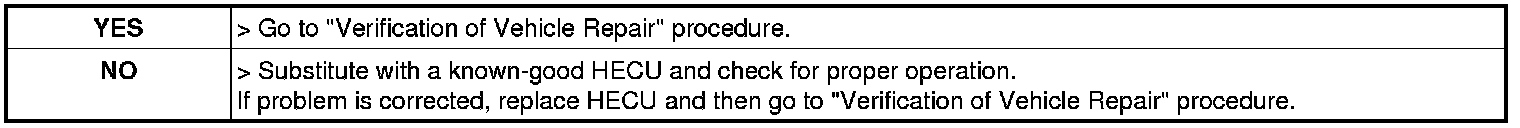

6. Is "SAS ZERO SET" completed normally?
