Scantool Diagnostics

Electronic Stability Control
C1112 Sensor source voltage - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC)
2. Ignition "ON" & Engine "ON".
3. Monitor the "BATTERY VOLTAGE" parameter on the scantool.

Specification :BATTERY VOLTAGE (Approx. 10V ~ 16V)

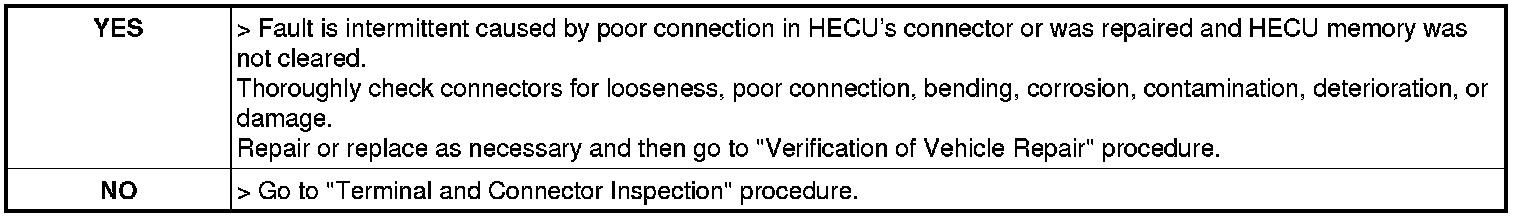

4. Is parameter displayed within specifications?
