General Information

Air Conditioner
B2409 Direction Control Motor-Driver - General Information

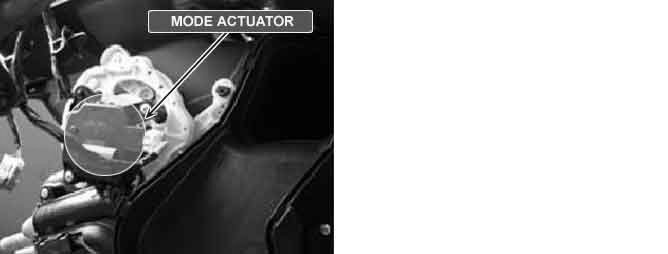

Component Location





General Description

The Mode Control actuator is mounted on the AC/heater box. It adjusts position of the mode door by operating the motor. Pressing mode select switch makes the mode control actuator shift in order of vent-> B/L -> floor -> mix.

DTC Description

The Air conditioner Control Module sets DTC B2409 if Driver Direction actuator has not been moved to the mode,where air condition control module controls, within 10 seconds.

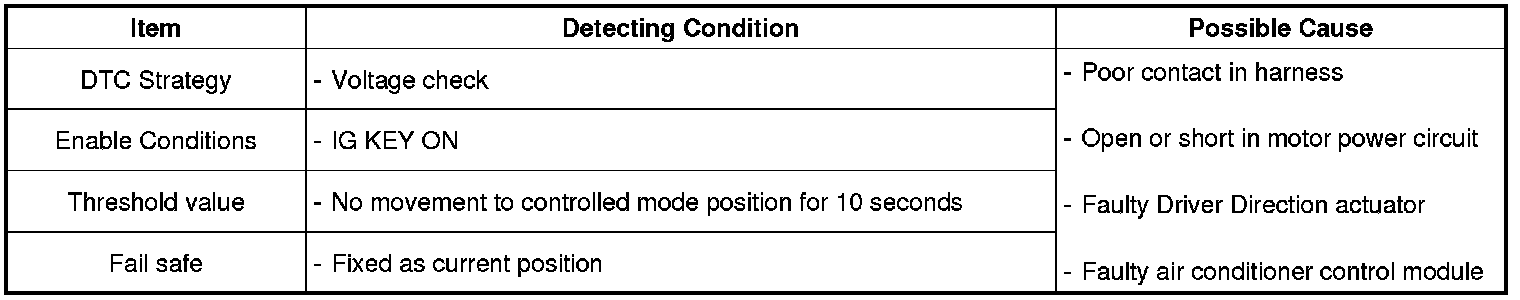

DTC Detecting Condition

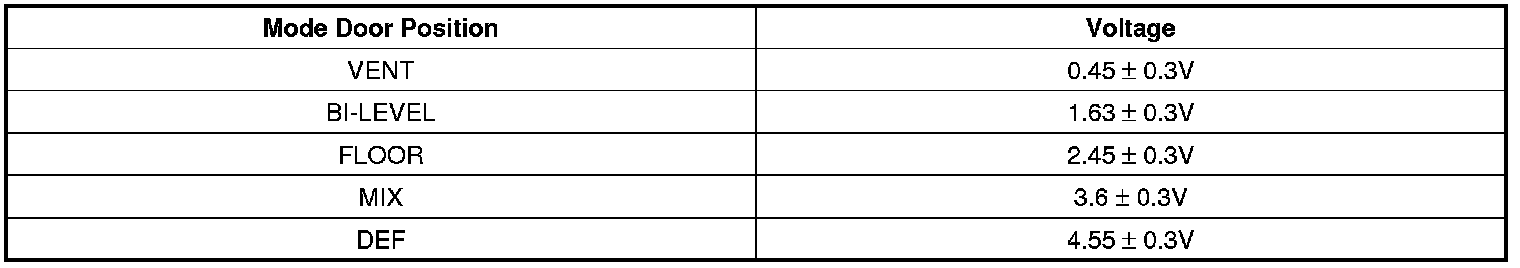

Specification

** Voltage value of potentiometer as a function of mode door position.






Diagnostic Circuit Diagram
