General Information

Airbag(Event #1)
B1683 Exceed Maximum Coding Number - General Information

Component Location





General Description

Airbag Control Unit (SRSCM : Supplemental Restraints System Control Module) must set a specification which is agreed with the vehicle in the end of line (EOL) for plant.
As the same conception, the function of "ACU Variant Coding" is to set a specification of an ACU.
Due to failure in the SRSCM, if you would replace ACU in the vehicle, must perform the ACU Variant Coding.
Since a new SRSCM is normally supplied with undetermined state, the ACU has to be set up based on the vehicle specifications by operating ACU Variant Coding procedure.
The SRSCM checks its specifications in it in order to run its airbag system normally.
If the warning light of airbag is flickering continuously, that is because SRSCM(ACU) Variant Coding is not completed.

NOTE:
SRSCM Variant Coding is available only one time. And when it is already finished, it is impossible to retry SRSCM Variant Coding.
Warning lamp's operation during SRSCM(ACU) Variant Coding Mode
It will be flickering on every 1 second before the Variant Coding is properly done.

DTC Description

If ACU Coding error is occurred more than 255 times, this DTC is set and the air bag warning lamp is turned on in the cluster.
It is caused of inputting incorrect ACU Coding code or replacing an ACU of incorrect part number.

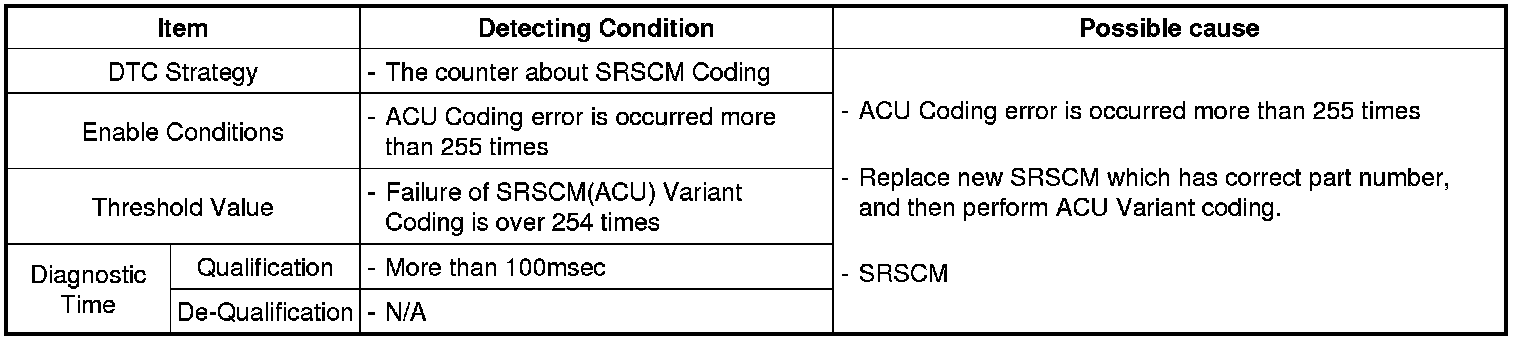

DTC Detecting Condition
