General Information

Airbag(Event #1)
B1389 STPS(Seat Track Position Sensor)-Driver Defect - General Information

Component Location





General Description

STPS located underneath passenger seat detects horizental position of passenger seat and delivers it to SRSCM.
Signal of STPS is the one of major parameters that determine the way dual output type airbag deploys.

DTC Description

The SRSCM sets DTC B1389 if there is any fault in STPS circuit.

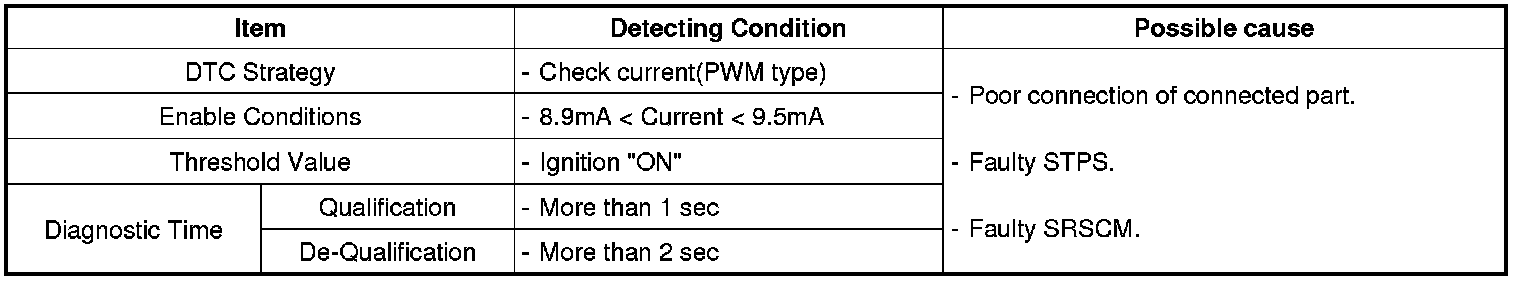

DTC Detecting Condition

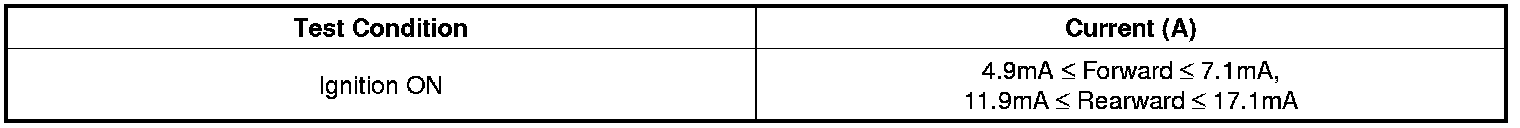

Specification





Diagnostic Circuit Diagram
