General Information

Air Conditioner
B1281 Humidity Sensor Short (Low) - AUTO Defog - General Information



General Description

Auto defogger sensor is installed on front window glass. Auto defogger sensor judges and sends signal for the occurance of moisture in advance of blowing out the wind for defogging. Air conditioner control module receives signal from auto defogger and performs restraining moisture and eliminating in advance with automatically controlling Intake actuator, A/C, Defogger actuator, Blower motor rpm, Mode actuator.

DTC Description

The Air conditioner Control Module sets DTC B1281 if The signal from auto defogger sensor has been detected Communication Fail or Short to ground or Short to Battery in ground circuit.

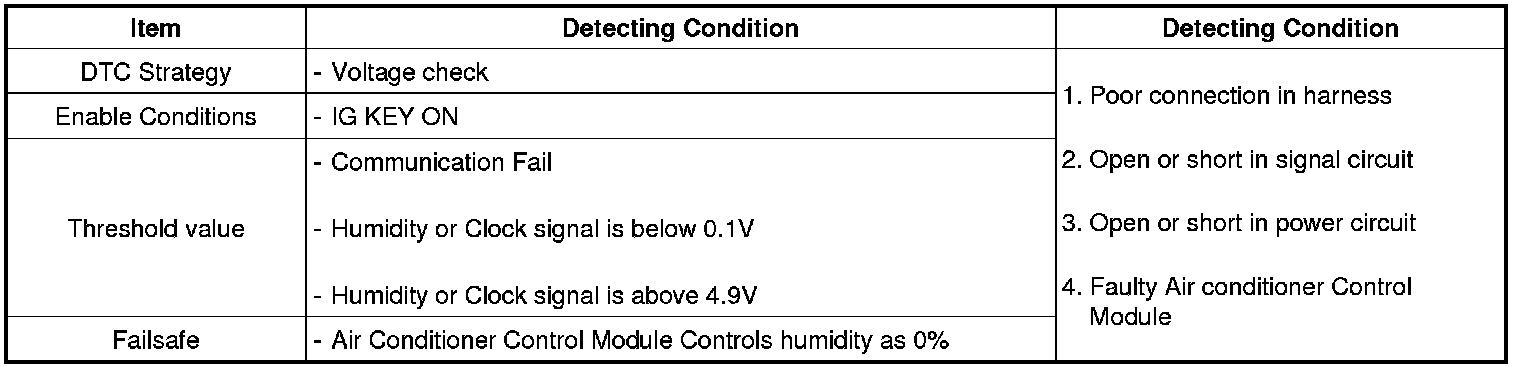

DTC Detecting Condition

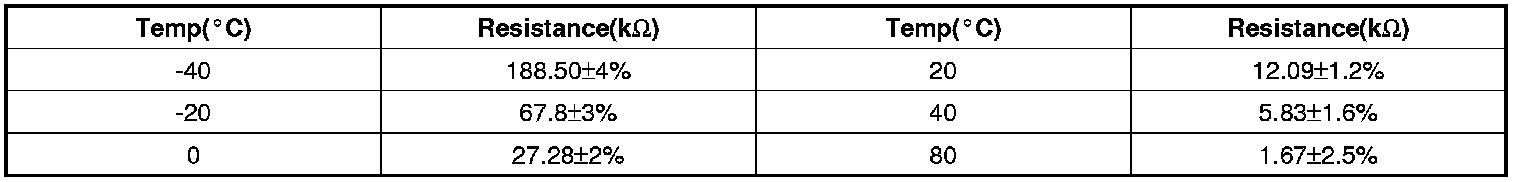

Specification

** Defogger sensor according to Class Temp
