Repair Procedures

Replacement

Front Seat Belt Replacement

CAUTION:
- When installing the belt, make sure not to damaged the pretensioner.

1. Disconnect the battery negative cable, and wait for at at lest three minutes before beginning work.
2. Remove the following items first :
A. Front seat assembly

B. Front door scuff trim & Rear door scuff trim

3. To remove the seat belt anchor pretensioner (A), And then remove the seat belt after pushing the lock pin (B).




4. Using a screwdriver or remover, remove the center pillar lower trim (A).




5. After loosening the mounting bolt, then remove the center pillar upper trim (B).

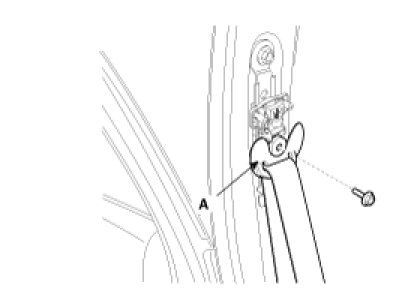

6. Remove the upper anchor (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)




7. After disconnecting the pretensioner connector lock pin, remove the pretensioner connector (B), Loosen the mounting bolt, then remove the pretensioner (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)




8. Installation is the reverse of removal.

Height Adjuster Replacement
1. Remove the following items first.
A. Front seat assembly.
B. Front door scuff trim & Rear door scuff trim
C. Front seat belt lower anchor
D. Center pillar lower trim
E. Center pillar upper trim
F. Front seat belt upper anchor

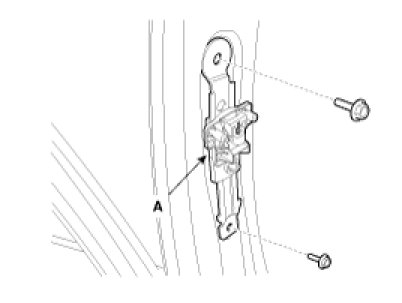

2. After loosening the mounting bolt, then remove the height adjuster (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)




3. Installation is the reverse of removal.

Front Seat Belt Buckle Replacement
1. Remove the following items first.
A. Front seat assembly.
2. Remove the wire harness of buckle from seat.

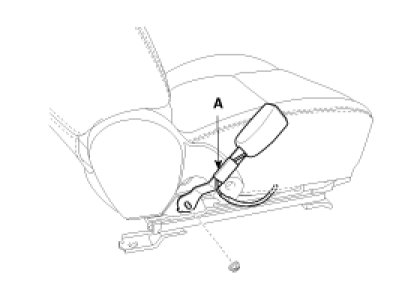

3. Remove the seat belt buckle (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)




4. Installation is the reverse of removal.
