Repair Procedures

Replacement

Front Seat Belt Replacement

CAUTION:
- When installing the belt, make sure not to damage the pretensioner.

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
2. Remove the following items fist.
A. Front seat assembly.
B. Door scuff trim.

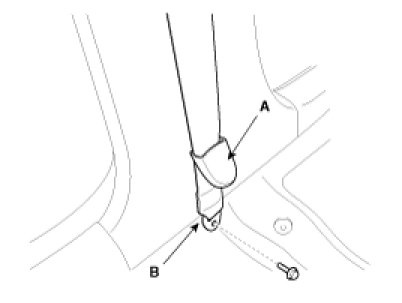

3. After raise the lower anchor cover (A), loosen the lower anchor mounting bolt (B).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)




4. Remove the center pillar lower trim (A).




5. Remove the center pillar upper trim (B).




6. Remove the upper anchor (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

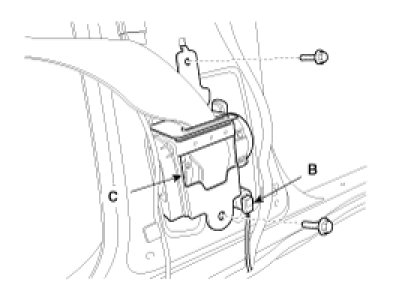

7. After disconnecting the pretensioner connector lock pin, remove the pretensioner connector (B), Loosen the mounting bolt, then remove the pretensioner (C).




8. Installation is the reverse of removal.

Height Adjuster Replacement
1. Remove the following items first.
A. Front seat assembly.
B. Door scuff trim.
C. Front seat belt.
D. Center pillar trim.
2. After loosening the mounting bolt, then remove the height adjuster (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)




3. Installation is the reverse of removal.

Front Seat Belt Buckle Replacement
1. Remove the following items first.
A. Front seat assembly.
2. Remove the wire harness of buckle from seat.
3. Remove the seat belt buckle (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)




4. Installation is the reverse of removal.
