Repair Procedures

Removal

1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
2. Remove the Interior trim.
3. Remove the headlining

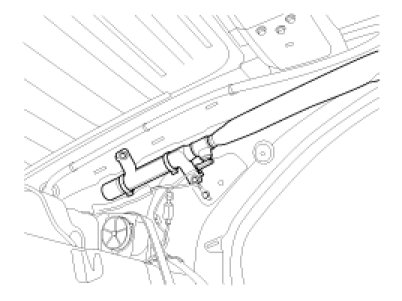

4. Disconnect the Curtain Airbag harness connector.

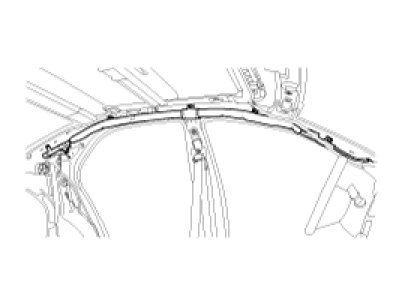

5. After loosening the mounting bolts and nuts remove the curtain airbag.






Installation

1. Remove the ignition key from the vehicle.
2. Disconnect the battery negative cable and wait for at least three minutes.
3. Tighten the Curtain Airbag (CAB) mounting bolts.

Tightening torque
: 10.8 - 14.7 Nm (1.1 - 1.5 kgf.m, 8.0 - 10.8 lb.ft)

CAUTION:
- Never twist the airbag module when installing it. If the module is twisted, airbag module may operate abnormally.

4. Connect the CAB connector.
5. Install the headlining.
6. Install the Interior trim.
7. Reconnect the battery negative cable.
8. After installing the Curtain Airbag (CAB), confirm proper system operation:
A. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
