Relay Box: Application and ID

Fuse & Relay Information

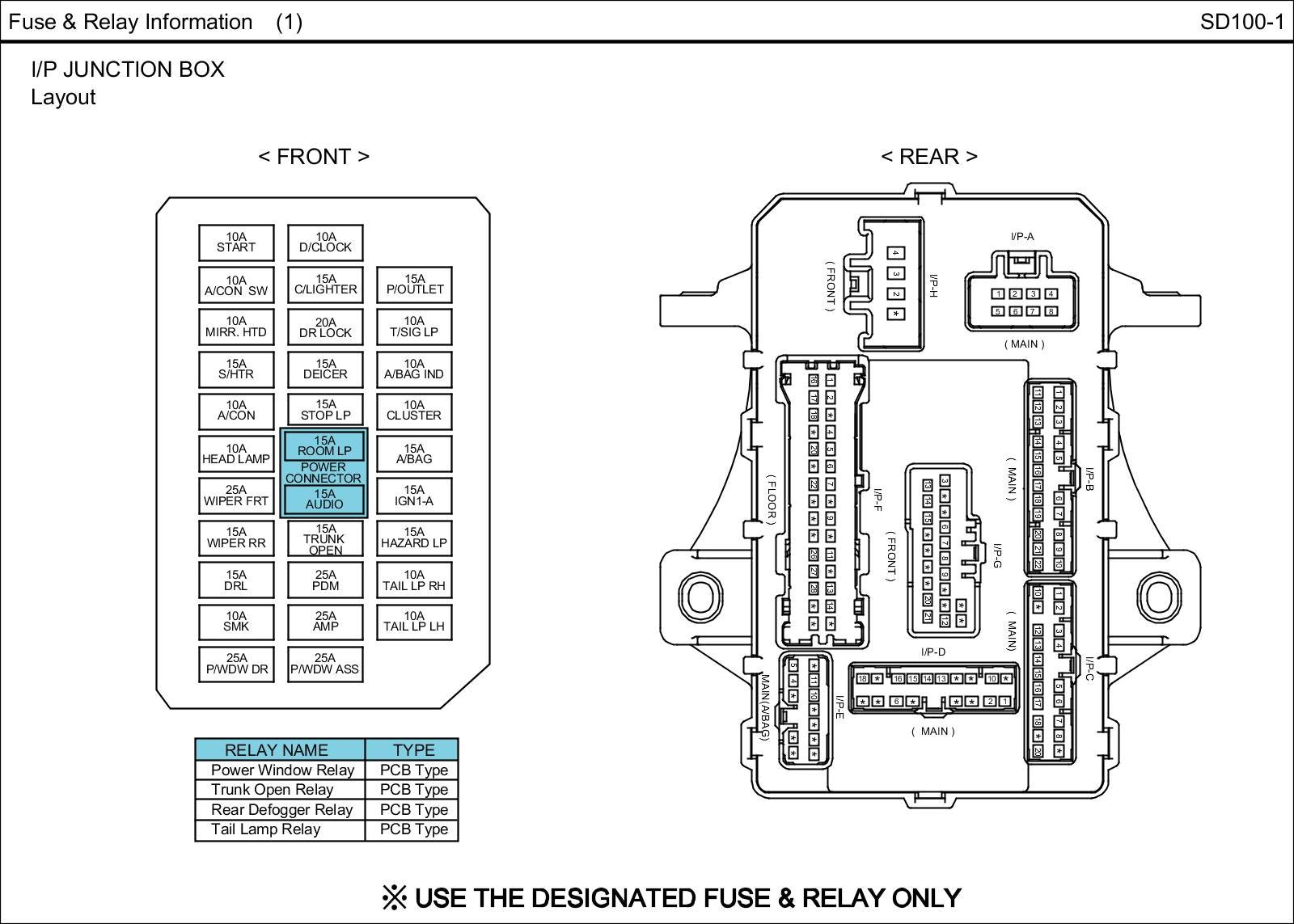

I/P Junction Box View:

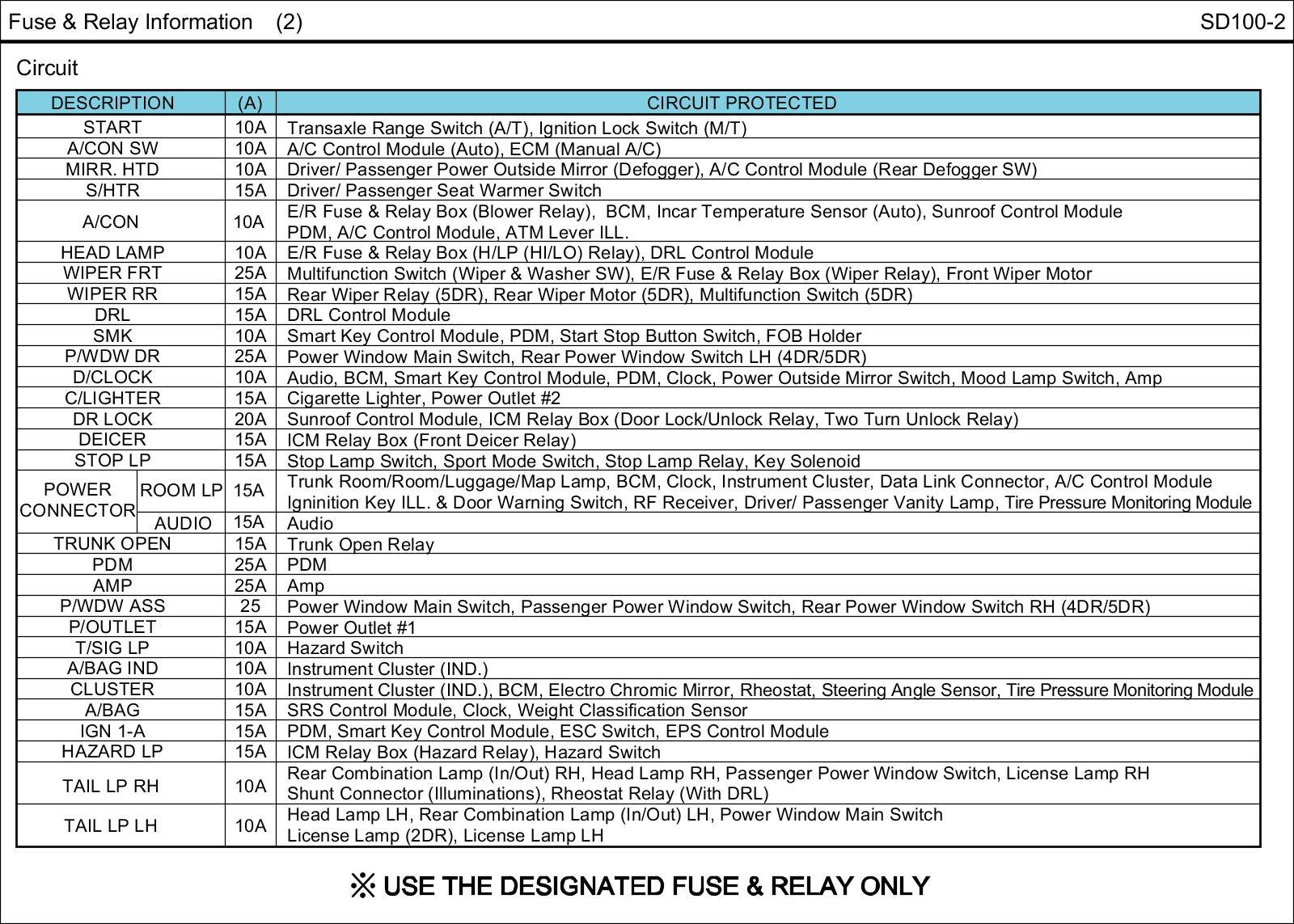

I/P Junction Box Circuit Details:

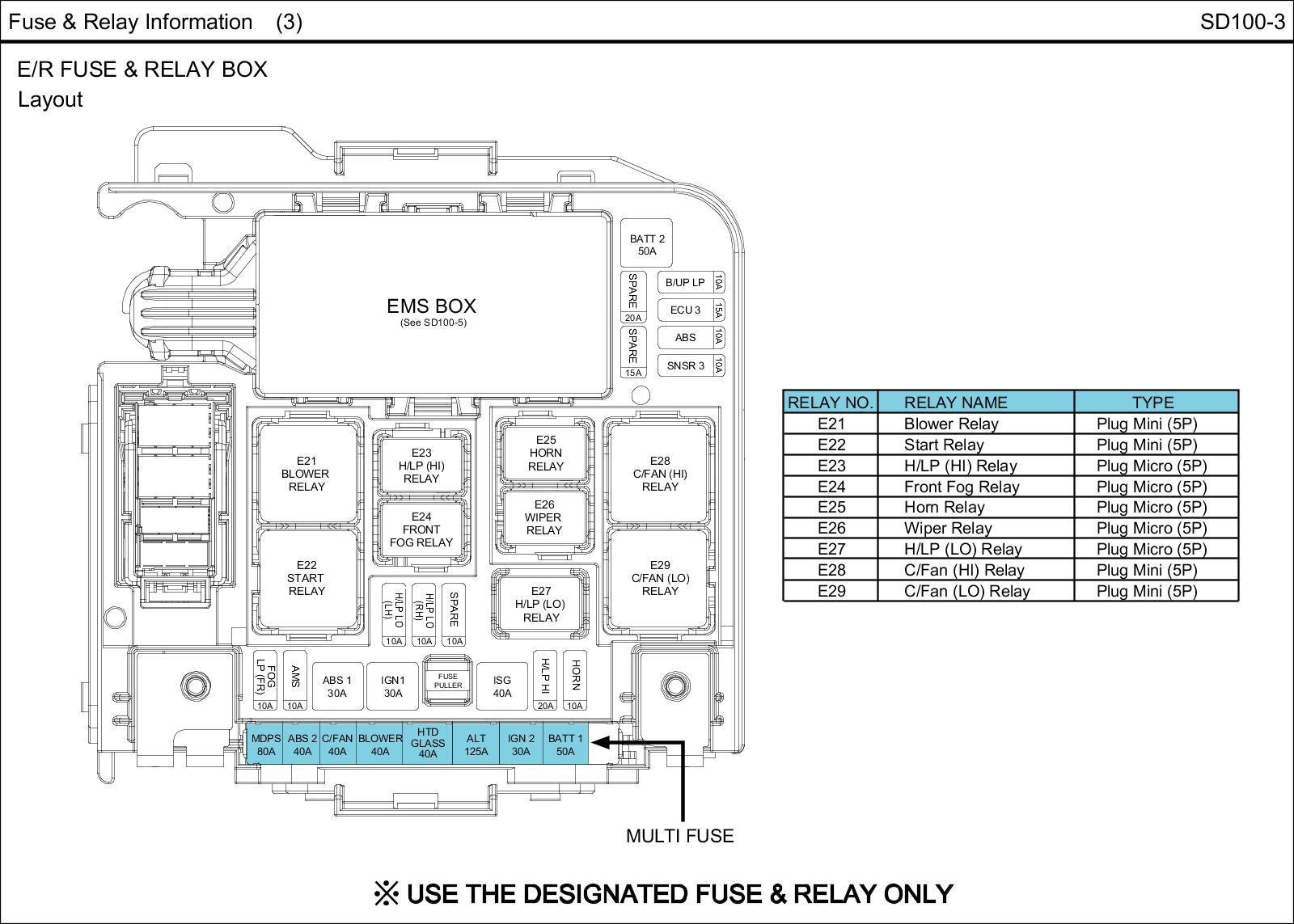

E/R Fuse & Relay Box View:

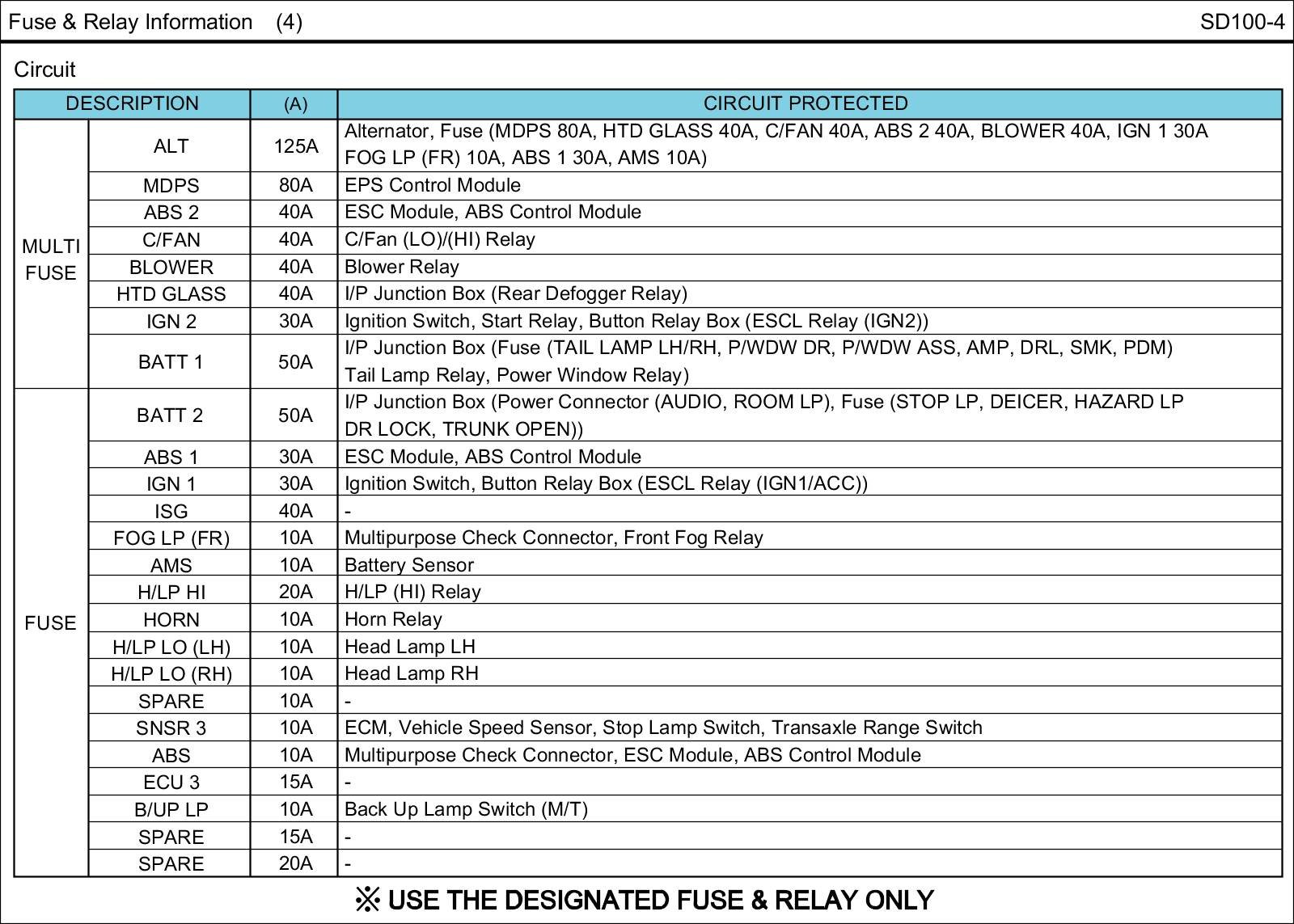

E/R Fuse & Relay Box Circuit Details:

EMS Box:

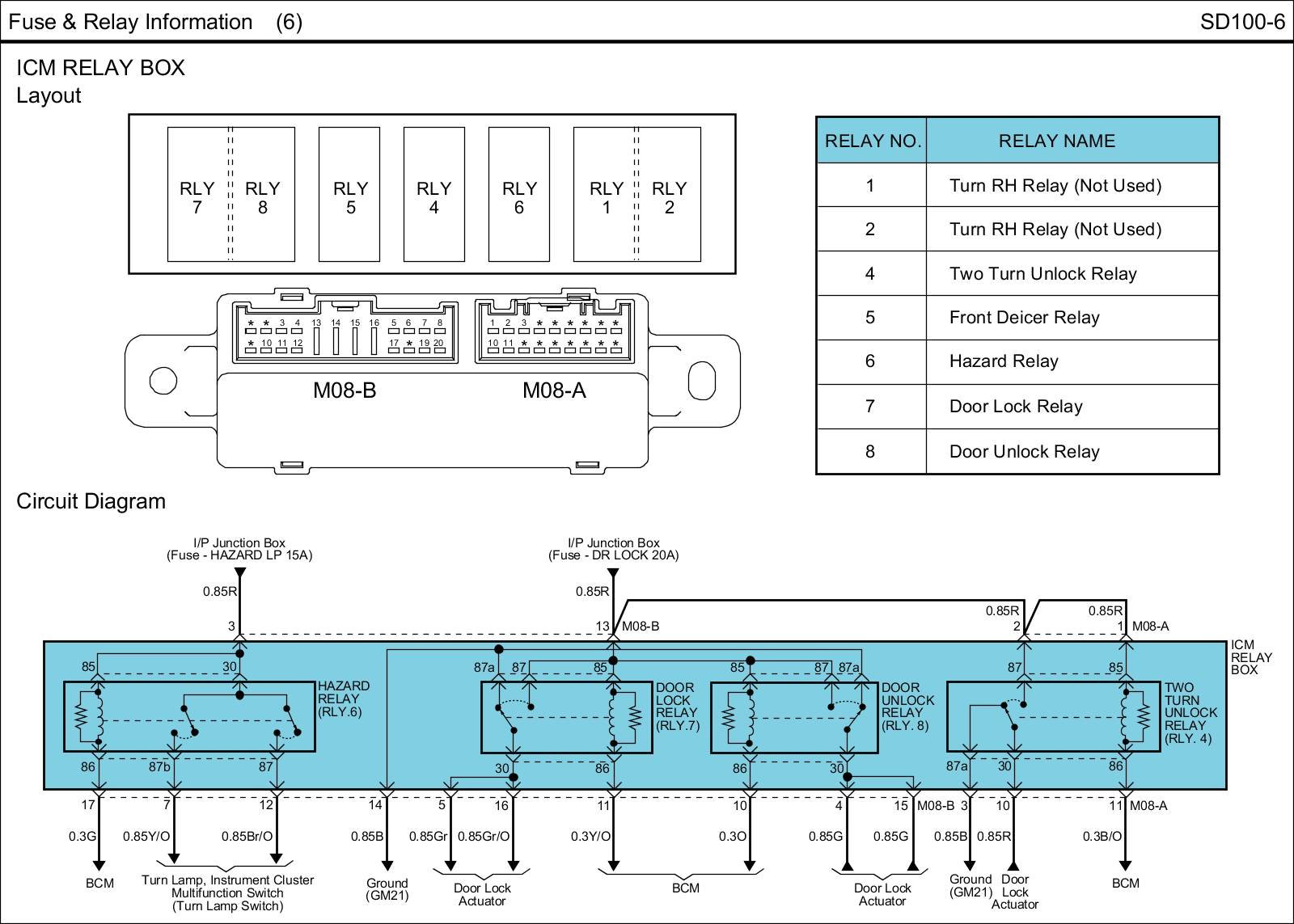

ICM Relay Box View:
