Fuel Filler Neck: Service and Repair

Removal

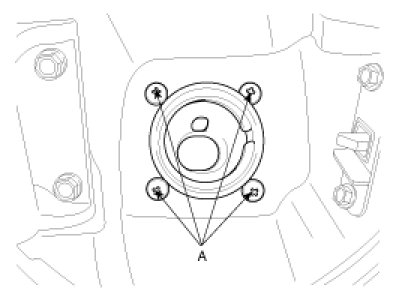

1. Open the fuel filler door and unfasten the filler-neck assembly mounting screws (A).




2. Remove the rear-LH wheel, tire, and the inner wheel house.

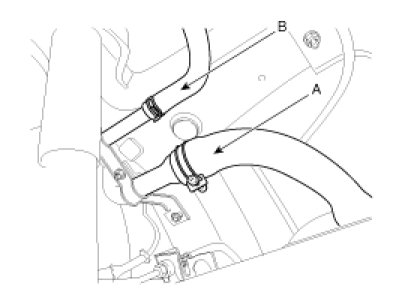

3. Disconnect the fuel filler hose (A) and the ventilation hose (B).

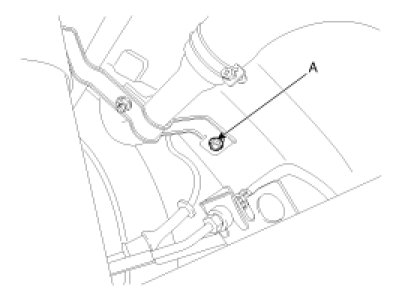

4. Remove the mounting bolt (A), and then remove the filler-neck assembly.






Installation

1. Installation is reverse of removal.

Filler-neck assembly installation bolt:
7.8 - 11.8N.m (0.8 - 1.2kgf.m, 5.8 - 8.7lb-ft)
