Headlamp: Service and Repair
Inspection
Head Lamp Relay / Front Lamp Relay
1. Disconnect the negative(-) battery terminal.

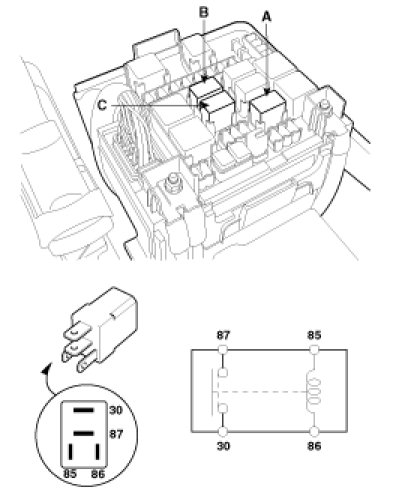

2. Pull out the relay from the engine compartment relay box.
A : Head lamp(Low) relay
B : Head lamp (High) relay
C : Front fog lamp relay
3. Check for continuity between terminals. There should be continuity between the No.87 and No.30 terminals when power and ground are connected to the No.86 and No.85 terminals.
4. There should be no continuity between the No.87 and No.30 terminals when power is disconnected.
Tail Lamp
1. Disconnect the negative(-) battery terminal.
2. Remove the crash pad lower panel.
3. Remove the junction box.
4. Check for continuity between the terminals.
(1) There should be continuity between the No.2 terminal in the I/P-H and the No.15(LH) or 4(RH) terminal in the I/P-G when power and ground are connected to the No.2 terminal in the I/P-H and the No.6 terminal in the I/P-D.
(2) There should be no continuity between the No.2 terminal in the I/P-H and the No.15(LH) or 4(RH) terminal in the I/P-G when power and ground are connected to the No.2 terminal in the I/P-H and the No.6 terminal in the I/P-D.
Adjustment
Head Lamp Aiming Instructions
CAUTION:
Head lamps become very hot during use; do not touch them or any attaching hardware immediately after they have been turned off.
The head lamps should be aimed with the proper beam-setting equipment, and in accordance with the equipment manufacturer's instructions.
NOTE:
If there are any regulations pertinent to the aiming of head lamps in the area where the vehicle is to be used, adjust so as to meet those requirements.

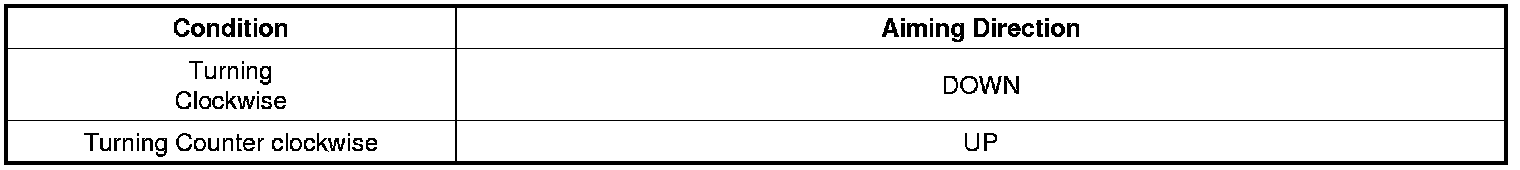

Alternately turn the adjusting gear to adjust the head lamp aiming. If beam-setting equipment is not available, proceed as follows :
1. Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire and tools.
2. The vehicle should be placed on a flat floor.

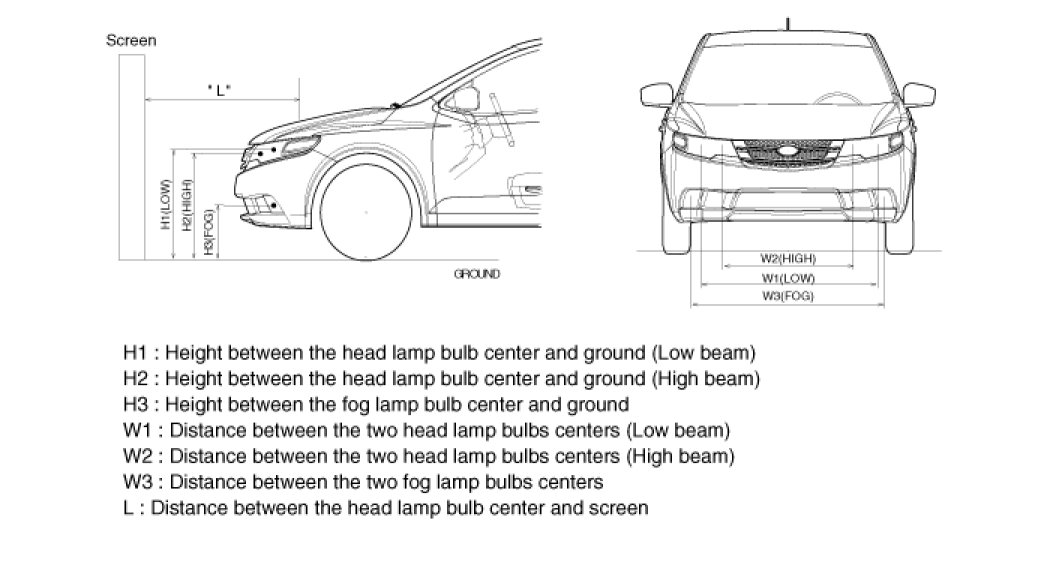

3. Draw vertical lines (Vertical lines passing through respective head lamp centers) and a horizontal line (Horizontal line passing through center of head lamps) on the screen.
4. With the head lamp and battery in normal condition, aim the head lamps so the brightest portion falls on the horizontal and vertical lines.

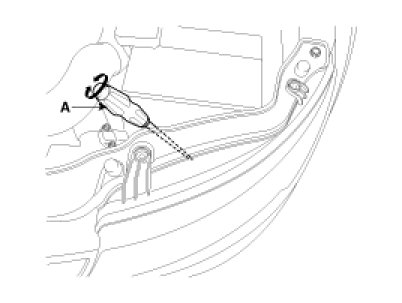

Make vertical(A) adjustments to the lower beam using the adjusting wheel.
Front Fog Lamp Aiming
The front fog lamps should be aimed as the same manner of the head lamps aiming.

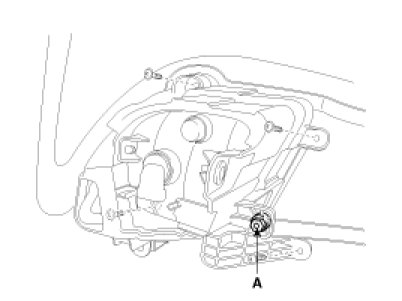

With the front fog lamps and battery normal condition, aim the front fog lamps by turning the adjusting gear(A).

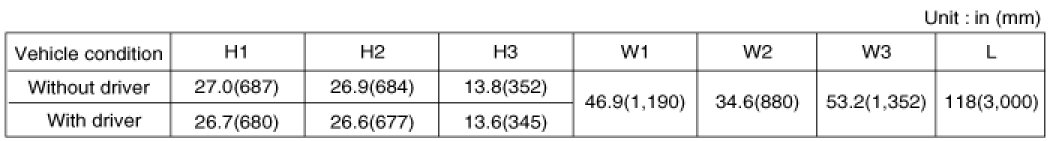

Head Lamp And Fog Lamp Aiming Point

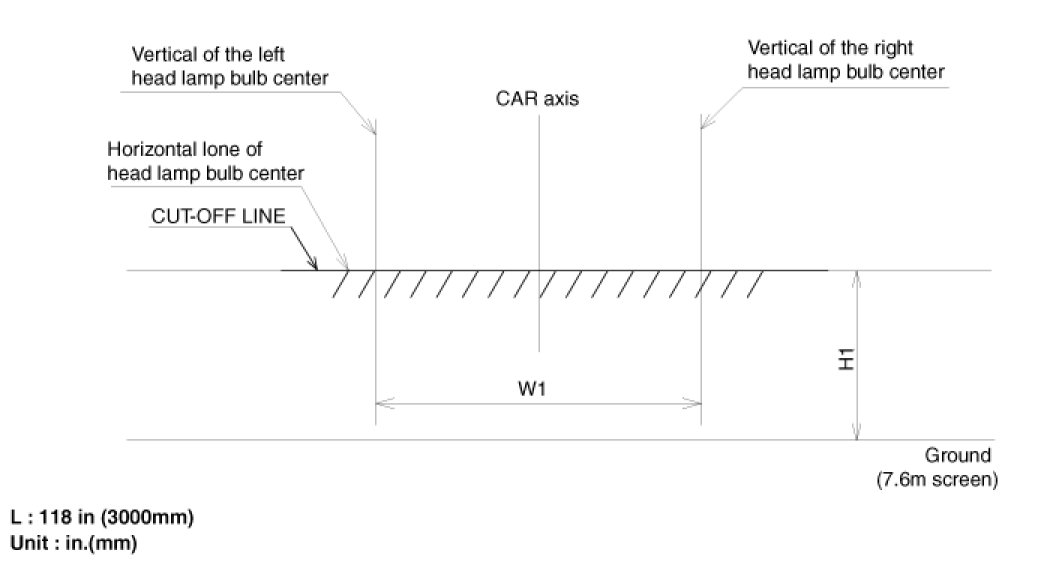

1. Turn the low beam on with driver.
The cut-off line should be projected in the allowable range(shade region) shown in the picture.

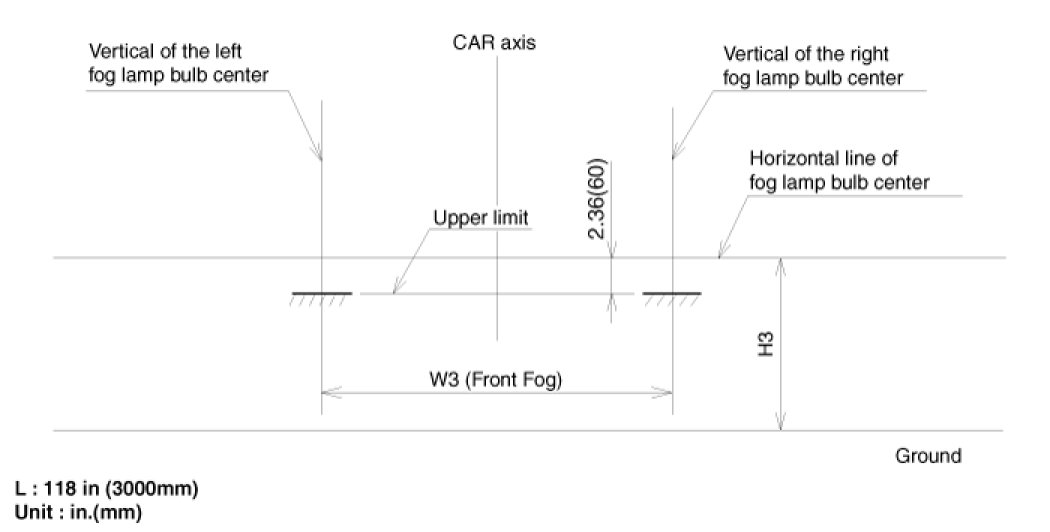

2. Turn the front fog lamp on with driver.
The cut-off line should be projected in the allowable range shown in the picture.
Removal
CAUTION:
Head lamps become very hot during use; do not touch them or any attaching hardware immediately after they have been turned off.
NOTE:
The headlamp bulb should not be removed from the headlamp assembly until just before a new bulb is installed.
Removing bulb for an extended period of time may affect headlamp bulb performance.
Contaminants may enter the headlamp assembly where they can settle on the lens and reflector.
Never turn on the head lamps with the bulb removed from the headlamp assembly.
1. Disconnect the negative (-) battery terminal.

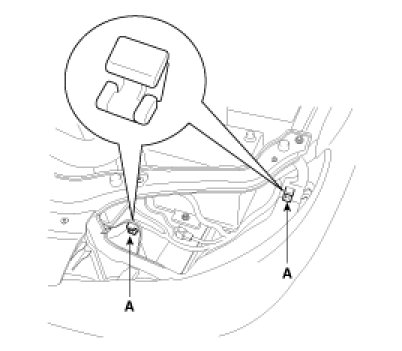

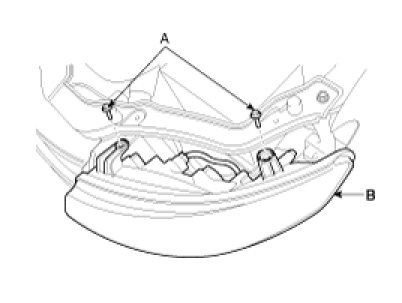

2. Loosen the mounting bolts (2EA)(A) of head lamp. Remove the head lamp assembly(B) after disconnecting the lamp connectors.
NOTE:
Take care that retaining clip(A) is not to be damaged.

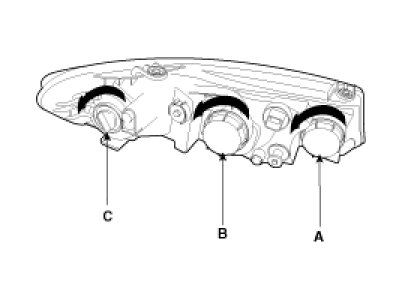

3. Remove the bulb caps from the head lamp assembly after turning in the counter clock-wise direction.
A : Head lamp high bulb & position bulb cab
B : Head lamp low bulb cab
C : Turn signal bulb cab
4. Remove the head lamp bulbs after releasing the lock of the set spring.
A : Head lamp high bulb, B : Head lamp low bulb.
C : Turn signal bulb
Installation
1. Install the head lamp bulbs.
2. Install the head lamp bulb caps.
3. Install the head lamp assembly after connecting the lamp connector.
