Fog/Driving Lamp: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper.

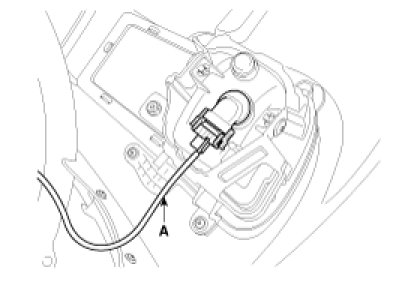

3. Remove the front fog lamp assembly connector(A).

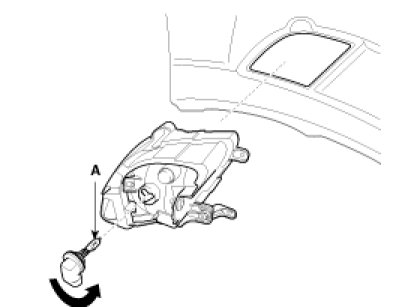

4. Remove the front fog lamp bulb(A) turning in the counter clock-wise direction.






Installation

1. Install the front fog lamp bulb.
2. Connect the front fog lamp connector.
3. Install the front bumper.

Inspection

Front Fog Lamp Relay
1. Disconnect the negative(-) battery terminal.

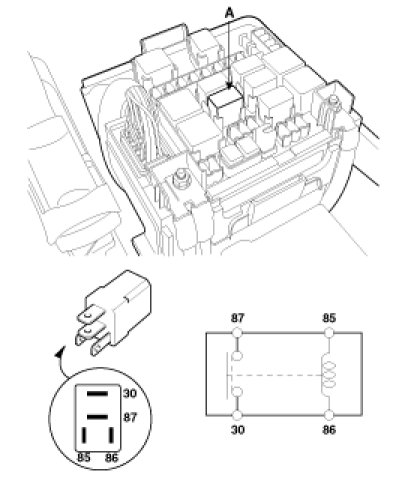

2. Pull out the front fog lamp relay(A) from the engine compartment relay box.

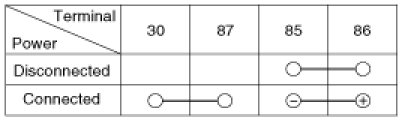

3. Check for continuity between terminals. There should be continuity between the No.87 and No.30 terminals when power and ground are connected to the No.85 and No.86 terminals.
4. There should be no continuity between the No.87 and No.30 terminals when power is disconnected.
