Diagram Set SD954 (Smart Key Module System)

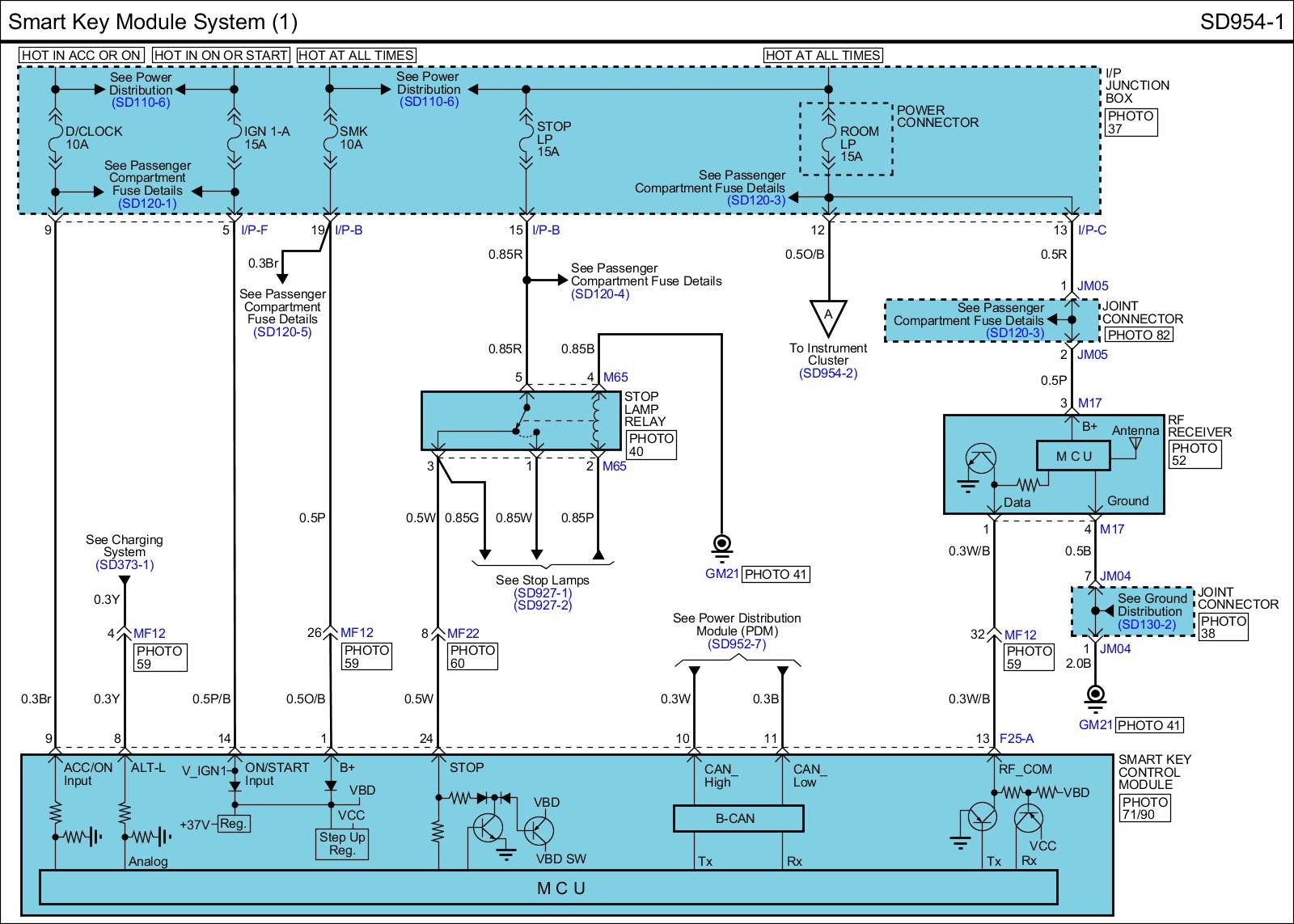

SD954-1 Smart Key Module System (1):

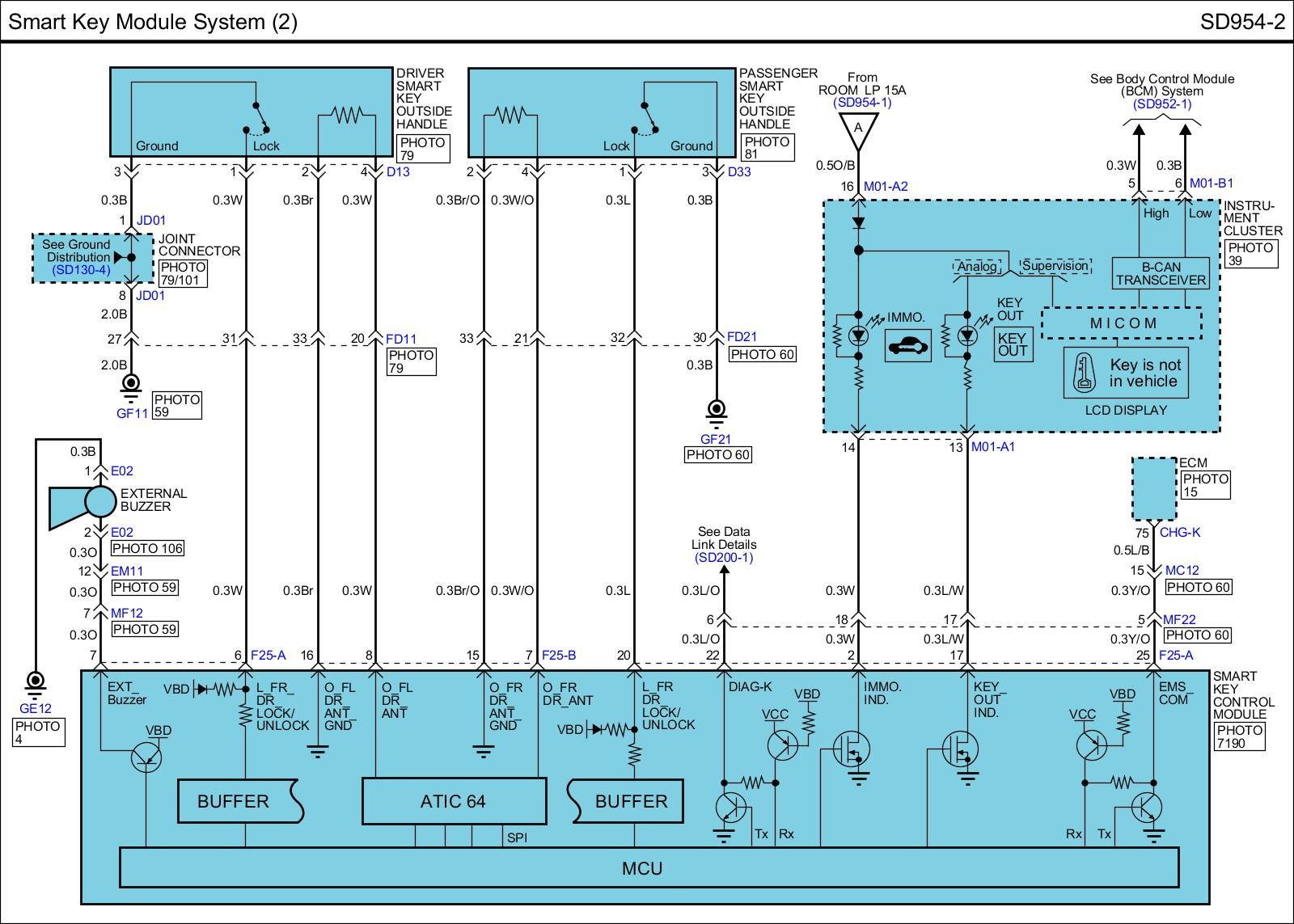

SD954-2 Smart Key Module System (2):

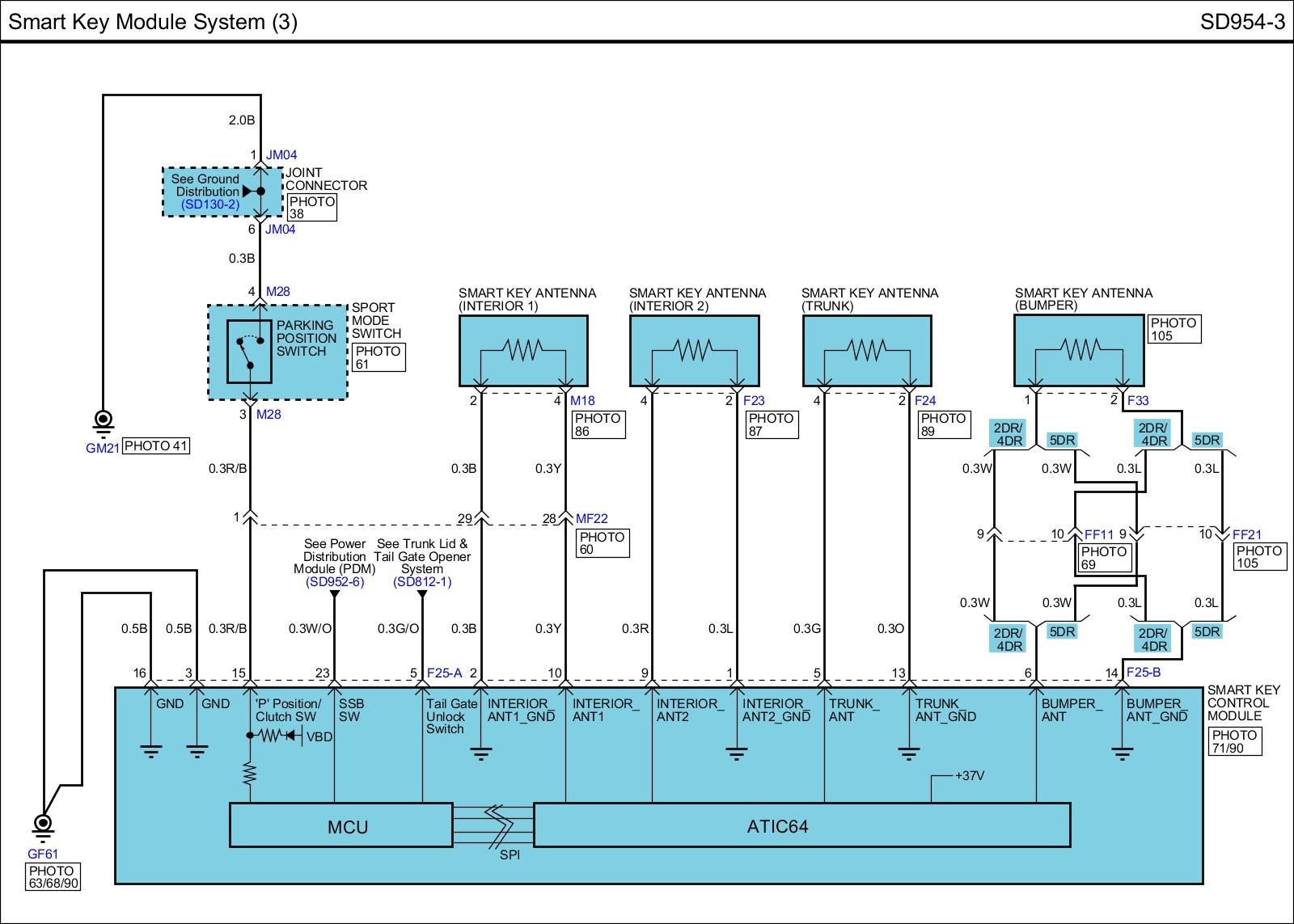

SD954-3 Smart Key Module System (3):
