Diagram Set SD941 (Illuminations)

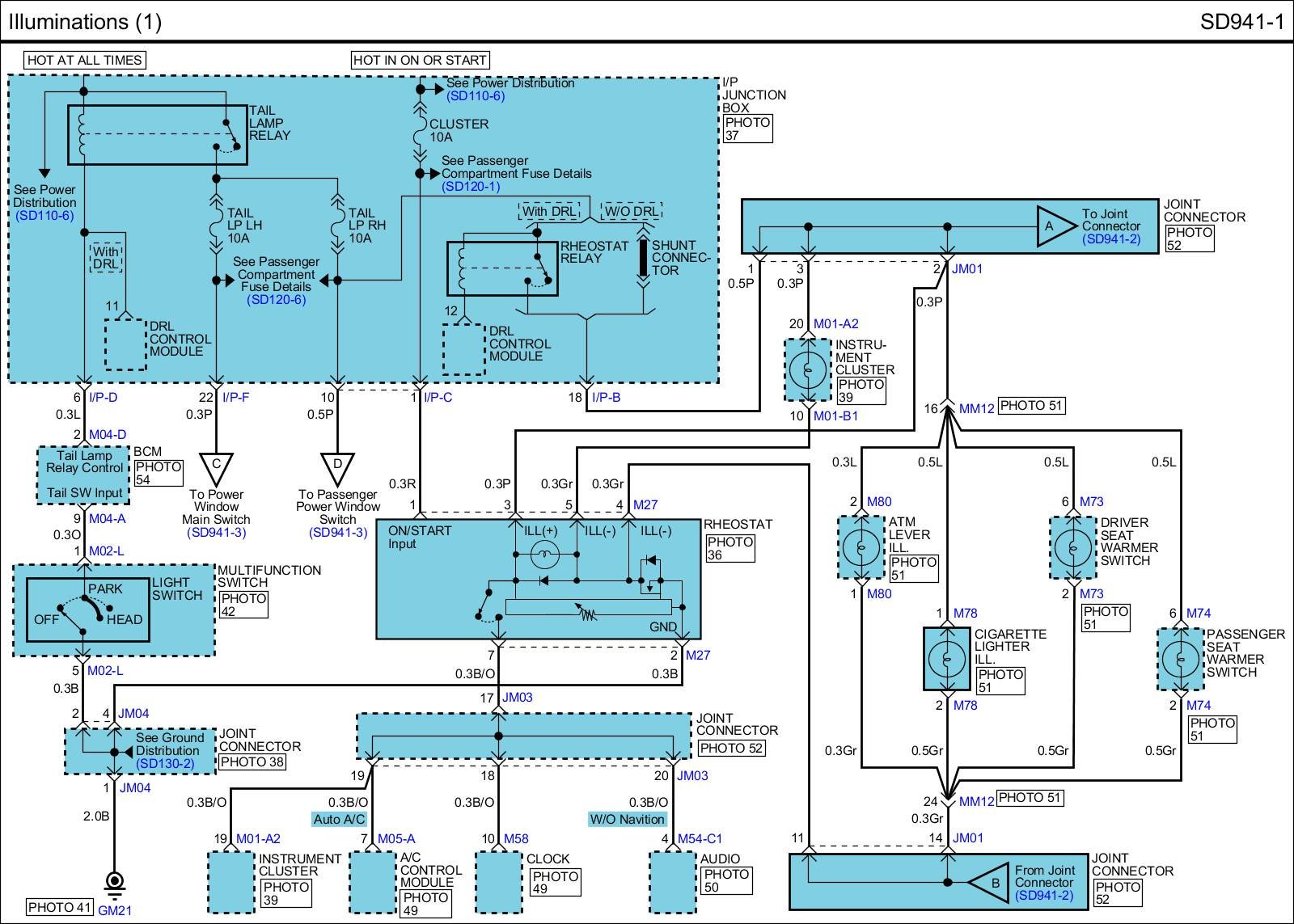

SD941-1 Illuminations (1):

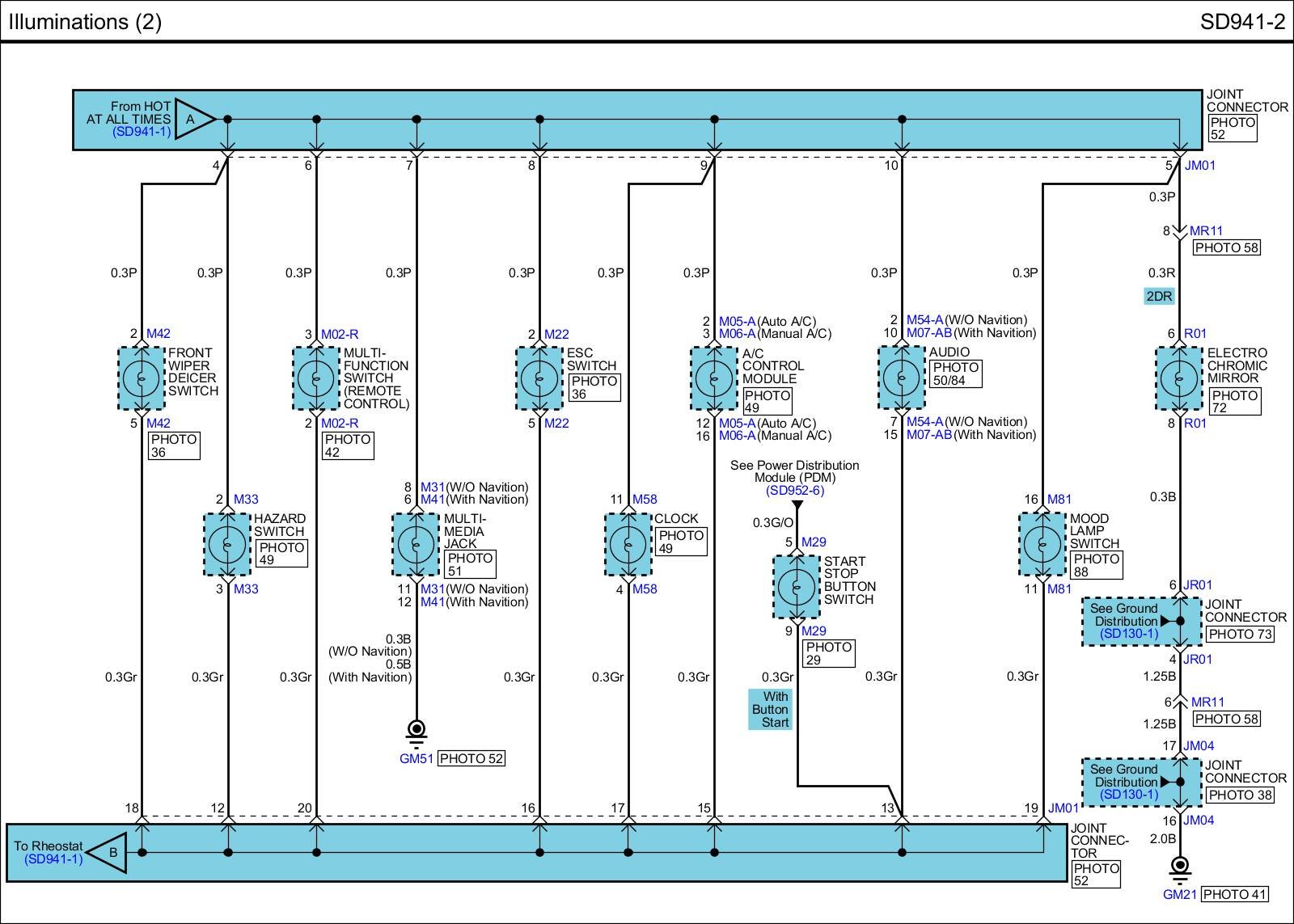

SD941-2 Illuminations (2):

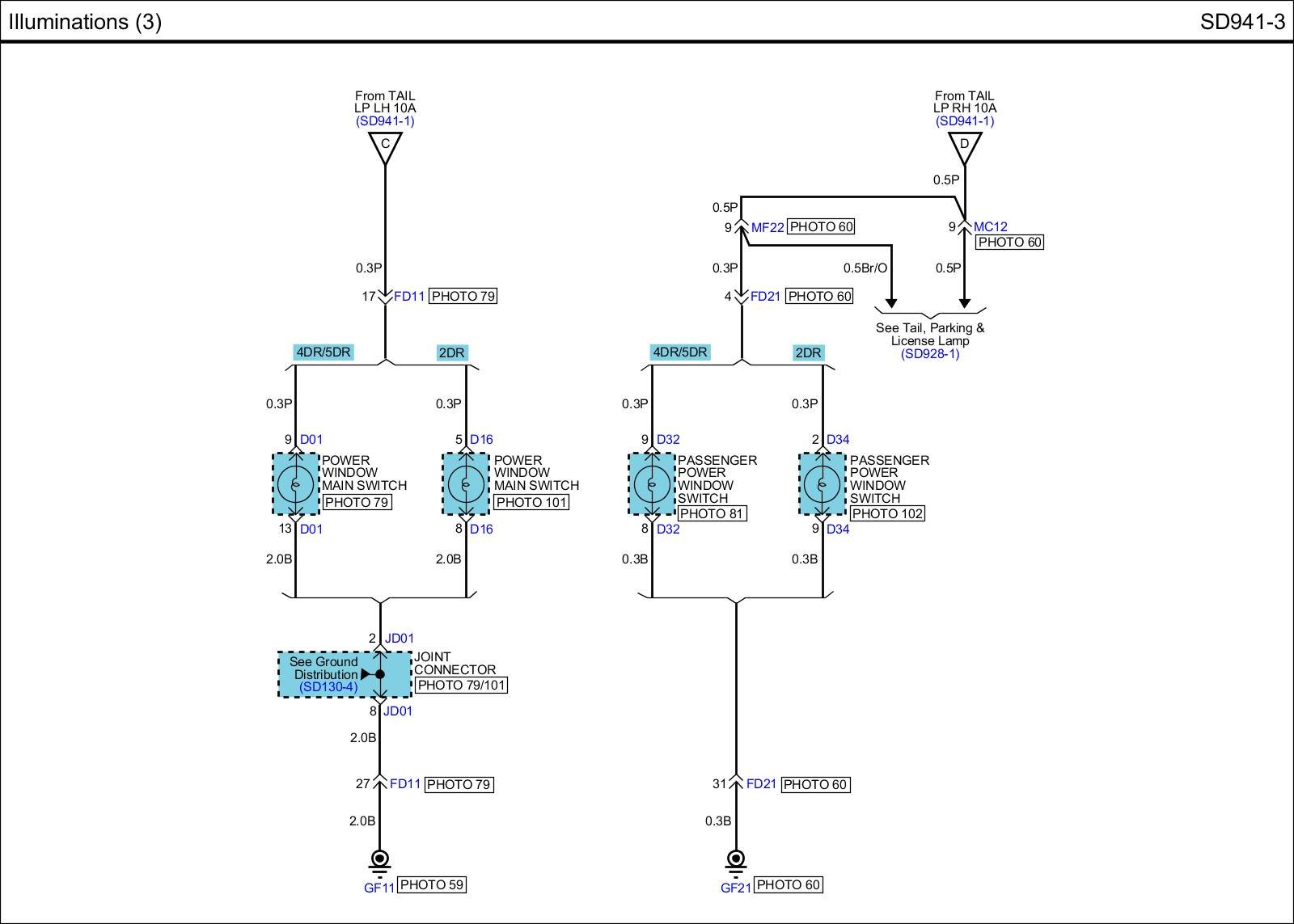

SD941-3 Illuminations (3):
