Home >> Kia >> 2012 >> Forte L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set SD851 (Electro Chromic Mirror System)

Diagram Set SD851 (Electro Chromic Mirror System)

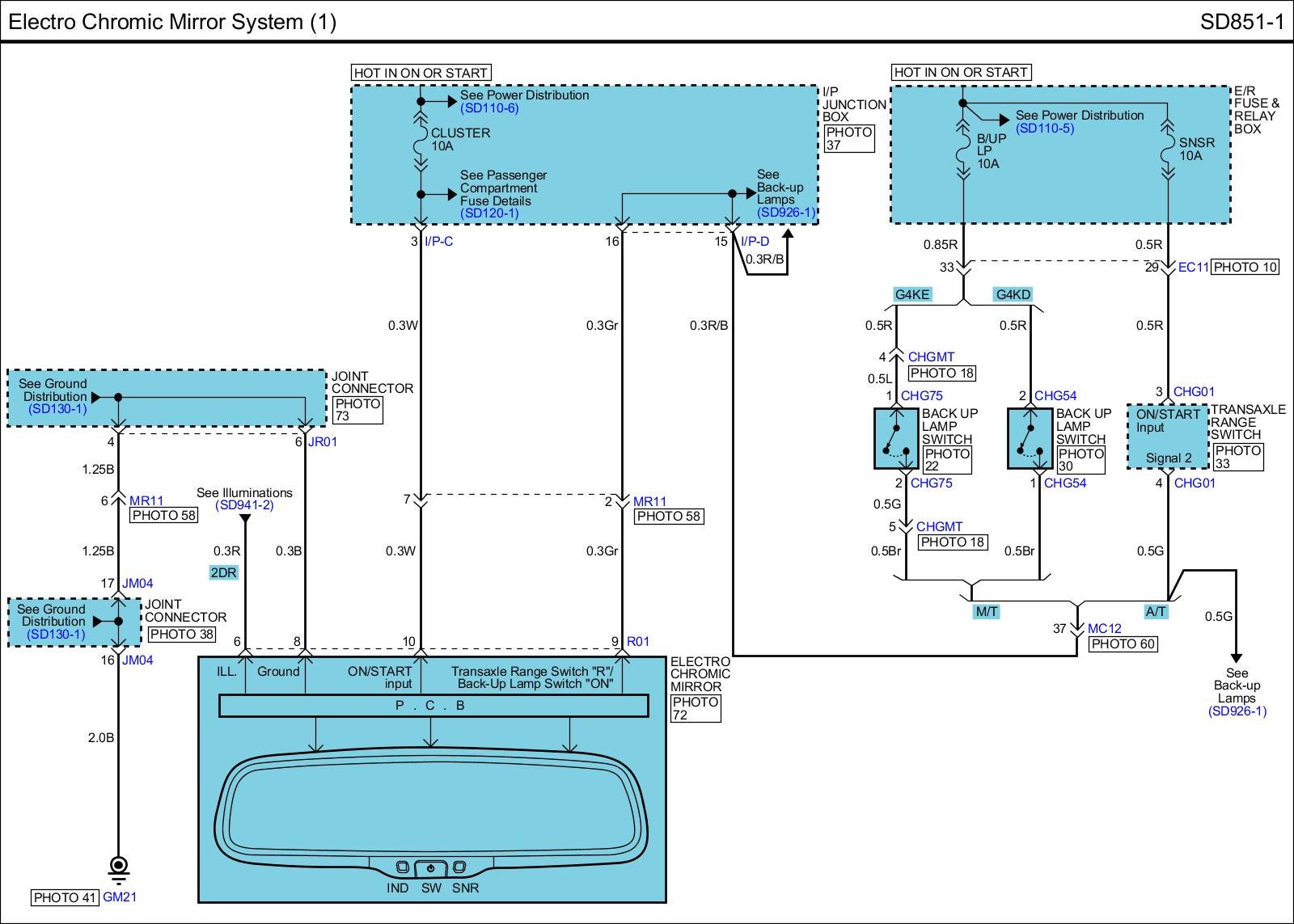

SD851-1 Electro Chromic Mirror System (1):
