Diagram Set SD569 (Supplemental Restraint System (SRS))

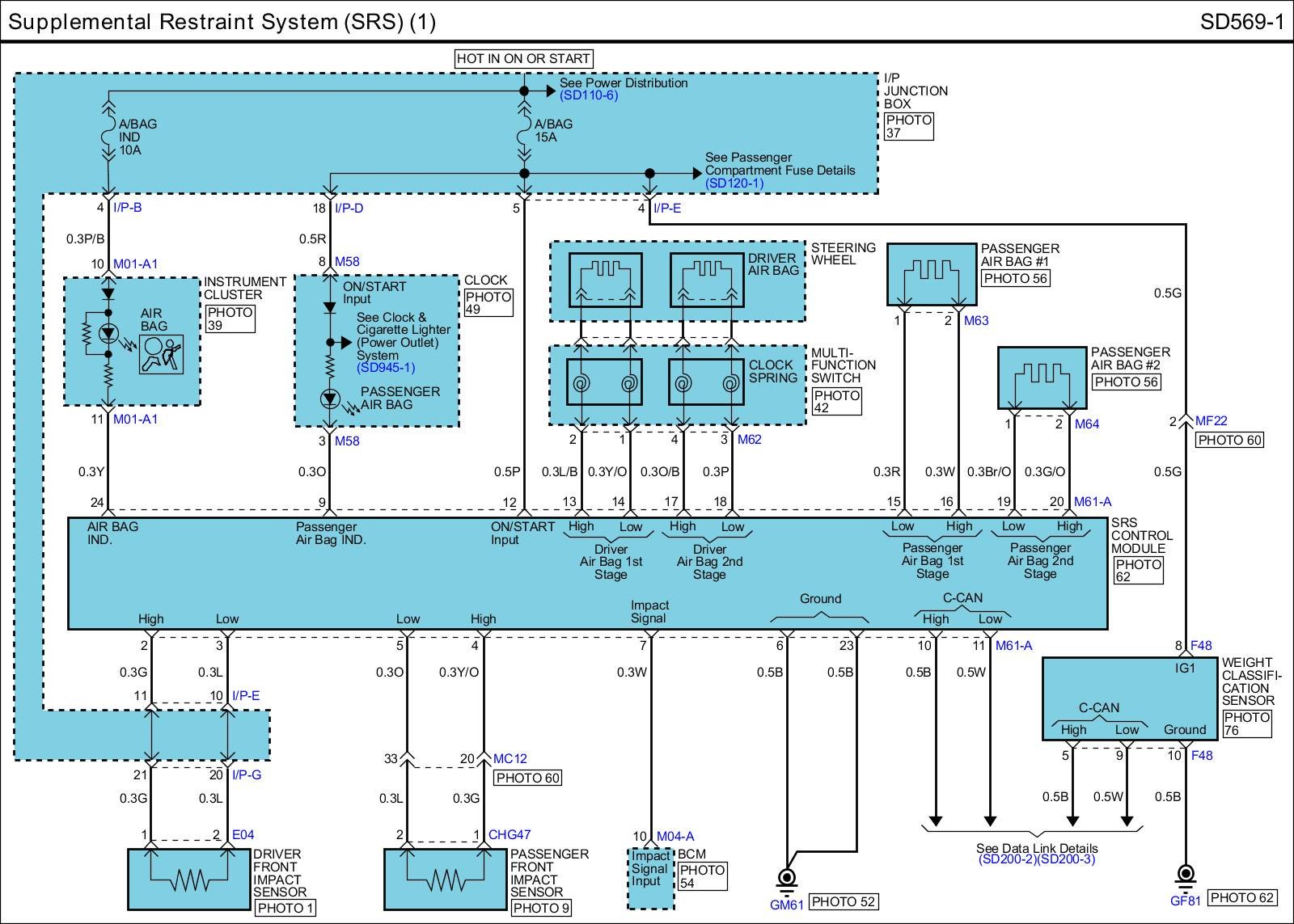

SD569-1 Supplemental Restraint System (SRS) (1):

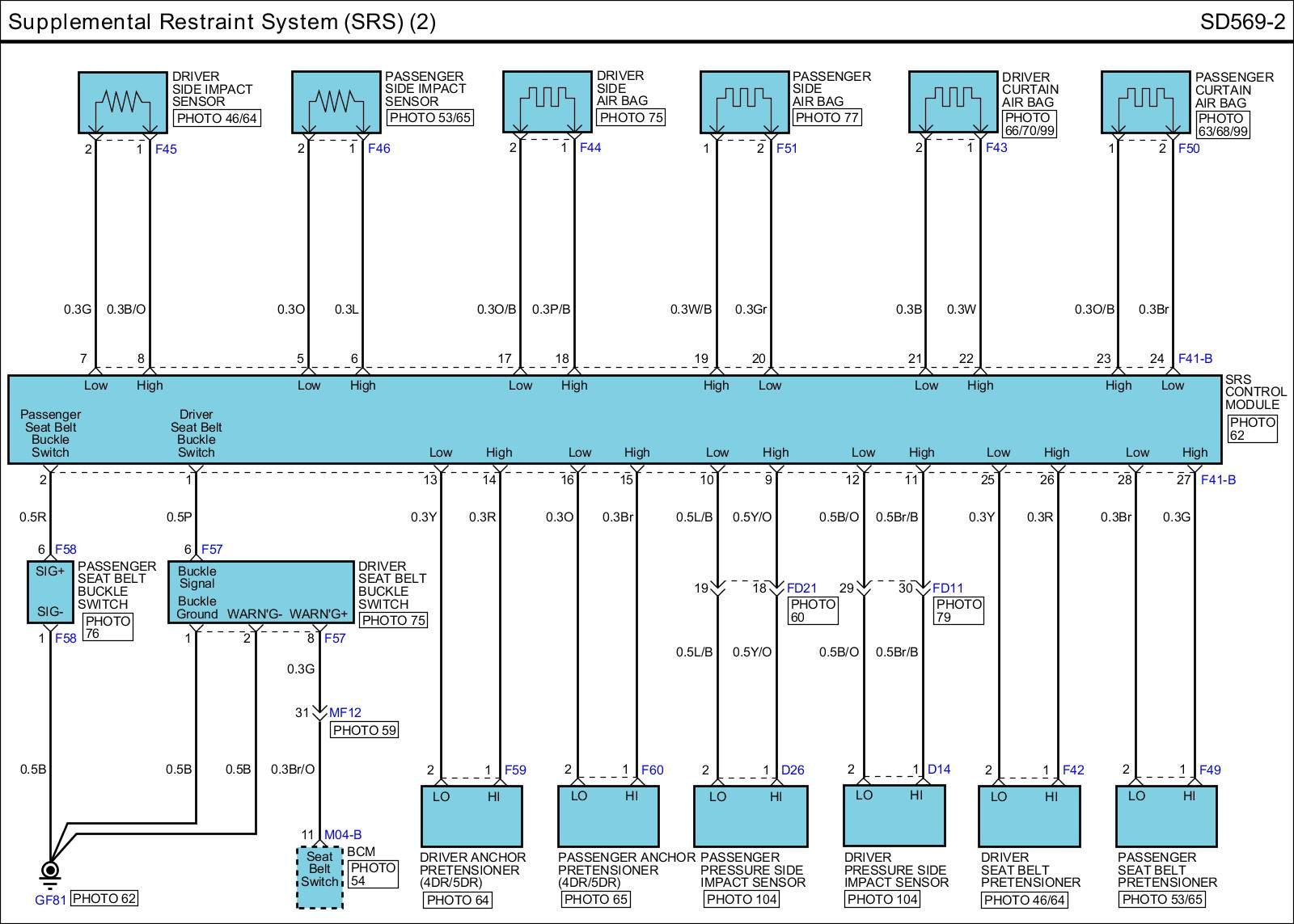

SD569-2 Supplemental Restraint System (SRS) (2):
