Components And Components Location

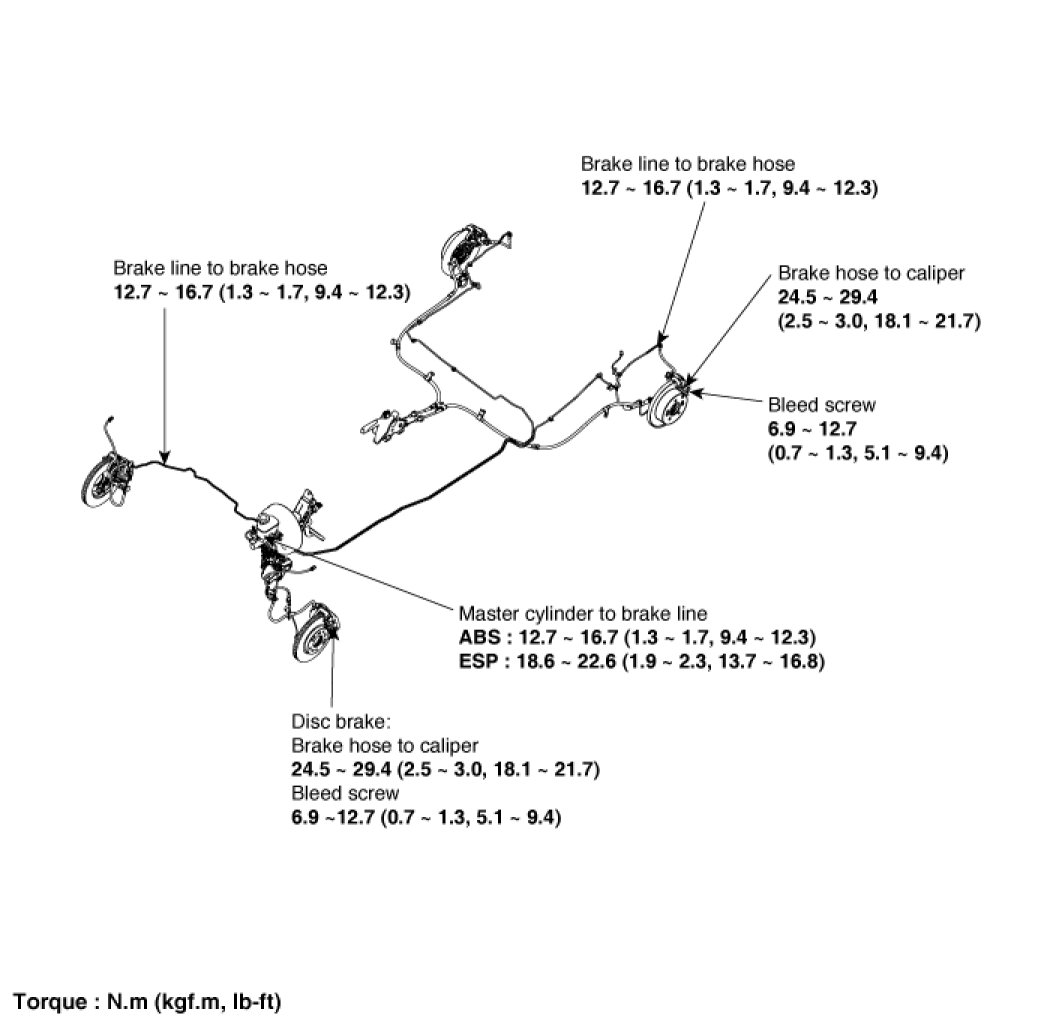

Components






WARNING:
When installing brake hose, be sure to comply with the torque specification to prevent twisted hose.
