Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the center air vent(B) using the SST(A) (09840-1M100).






CAUTION:
Always use the SST(09840-1M100) to prevent the damage when removing the air vent.

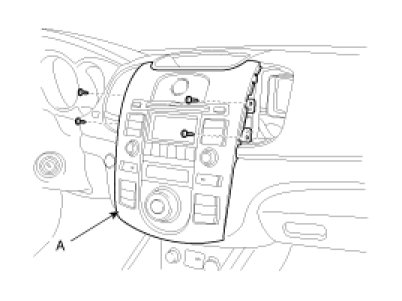

3. Remove the crash pad center facia panel (A) after loosening screws.

NOTE:
Take care not to scratch the crash pad and related parts.




4. Disconnect the connectors (A) from the crash pad center facia panel.




5. Remove the mounting screws (4EA) then remove the audio unit (A).






Installation

1. Connect the audio unit connectors and cable.
2. Install the audio unit, and mounting bolts (4EA)
3. Install the crash pad center facia panel.
4. Check the audio system.

NOTE:
- Make sure the audio head unit connectors are plugged in properly, and the antenna cable is connected properly.

Disassembly

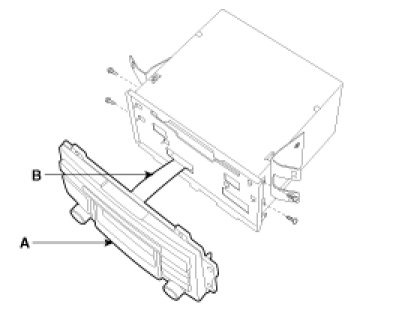

1. Disassemble the front panel(A) then disconnect the connector(B) between the unit and front panel.

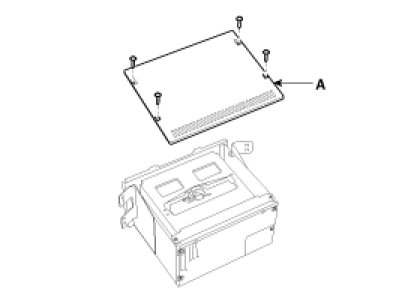

2. Disassemble the top cover(A) after loosening 4 screws.

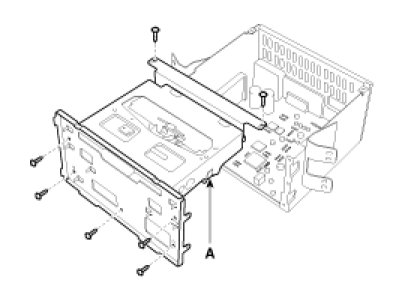

3. Disassemble the deck(A) from the unit after removing the connector and screws.






Reassembly

1. Reassemble the deck to the audio unit.
2. Reassemble the top cover.
3. Reassemble the front panel and connect the connector.
