AVN System

Removal

Multi Media Jack
1. Remove the floor console(A).

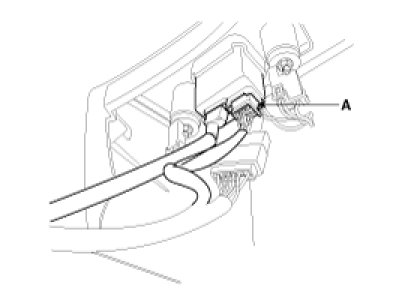

2. Disconnect the jack assembly connector(A) from the floor console.

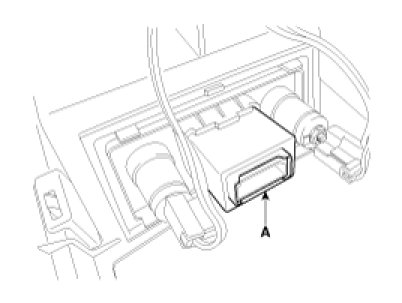

3. Remove the Multi Media Jack(A) from the floor console.






Installation

Multi Media Jack
1. Install the Multi Media Jack.
2. Connect the Multi Media Jack connector.
3. Install the under cover to the floor console.
