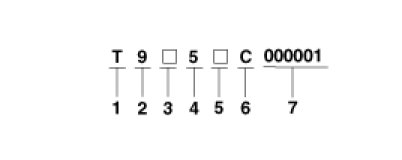

Manual Transmission/Transaxle: Application and ID

Manual




1. Model
A. T : M5CF1-1
B. V : M5CF2
2. Production year
A. 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013.
3. Plant of production
4. Speed (5 or 6)
5. Reserve
6. Gear ratio
A. F : 4.267
B. E : 4.188
7. Transaxle production sequence number
- 000001 - 999999
