Repair Procedures

Removal

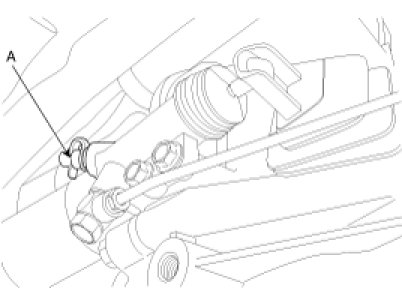

1. Drain the brake fluid through the bleed plug (A).

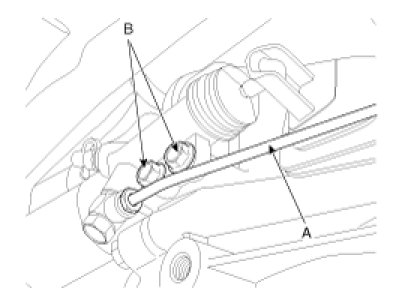

2. Disconnect the clutch tube (A).




3. Remove the two clutch release cylinder mounting bolts (B-2ea).

Inspection

1. Check the release cylinder bore for rust and damage.
2. Check the clutch release cylinder for fluid leakage.
3. Check the clutch release cylinder boots for damage.

Installation

1. Coat the clutch clevis push rod specified grease.

Specified grease: CASMOLY L9508

2. Install the release cylinder mounting bolts (B-2ea).

Tightening torque
: 15 - 22Nm (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb-ft)




3. Install the clutch tube (A).
4. Bleed the air in the clutch system.
