Control Arm: Service and Repair

Replacement

1. Remove the front wheel & tire.

Tightening torque:
90 - 110 N.m (9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

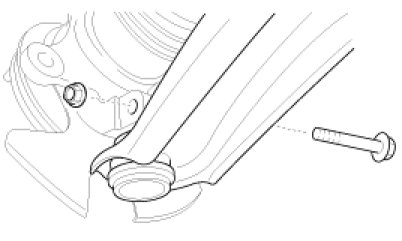

2. Remove the lower arm ball joint mounting bolts.

Tightening torque :
58.8 - 70.6 N.m (6.0 - 7.2 kgf.m, 43.4 - 52.1 lb-ft)

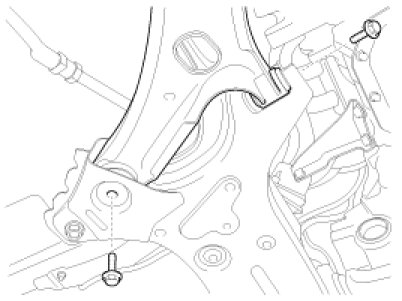

3. Remove the lower arm mounting bolts.

Tightening torque :
160 - 180 N.m (16.0 - 18.0 kgf.m, 115 - 130 lb-ft)
100 - 120 N.m (10.0 - 12.0 kgf.m, 72 - 87 lb-ft)




4. Installation is the reverse of removal.

Inspection

1. Check the bushing for wear and deterioration.
2. Check the lower arm for deformation.
3. Check the all bolts and nuts.
