Home >> Kia >> 2011 >> Soul L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Service and Repair

Power Window Switch: Service and Repair





Components

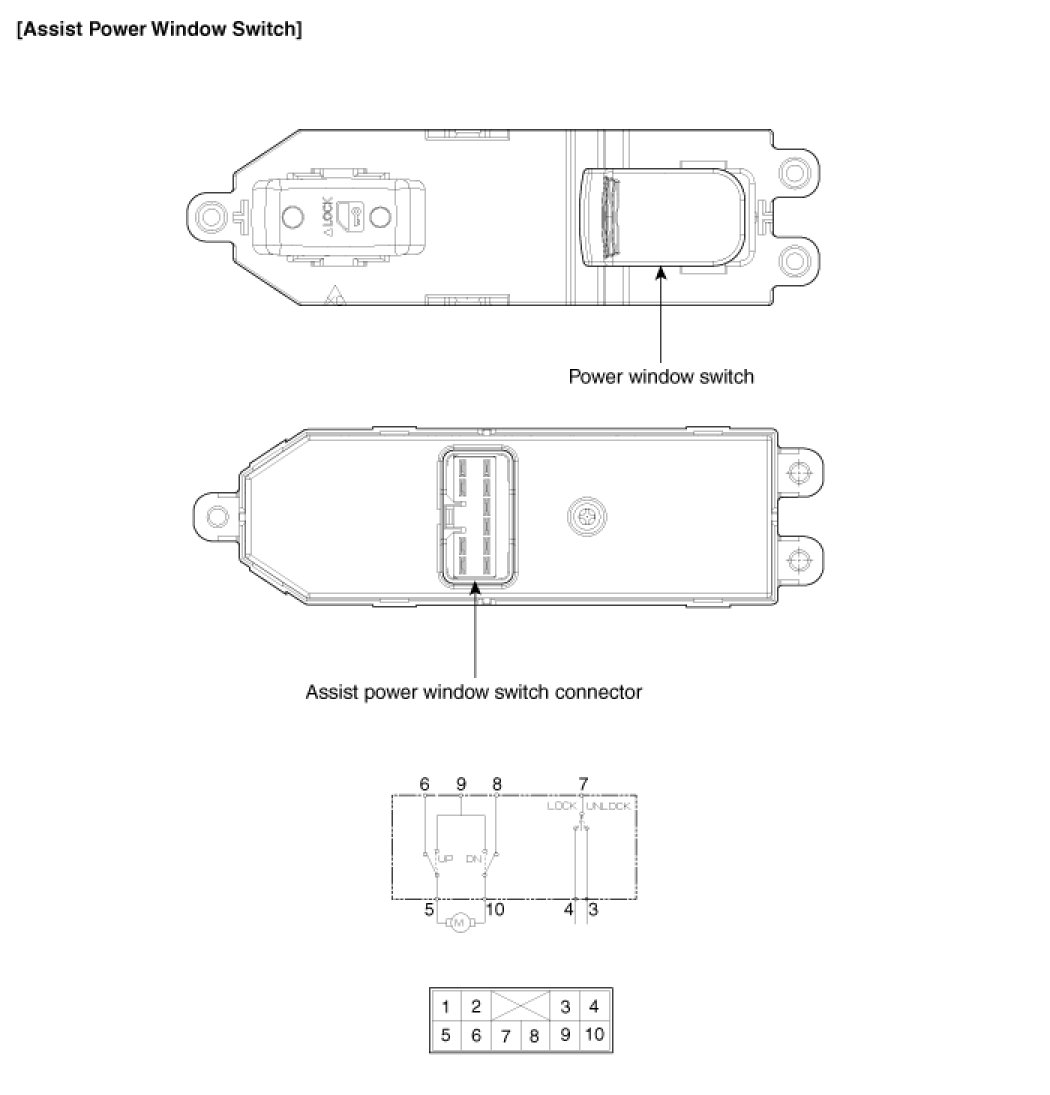

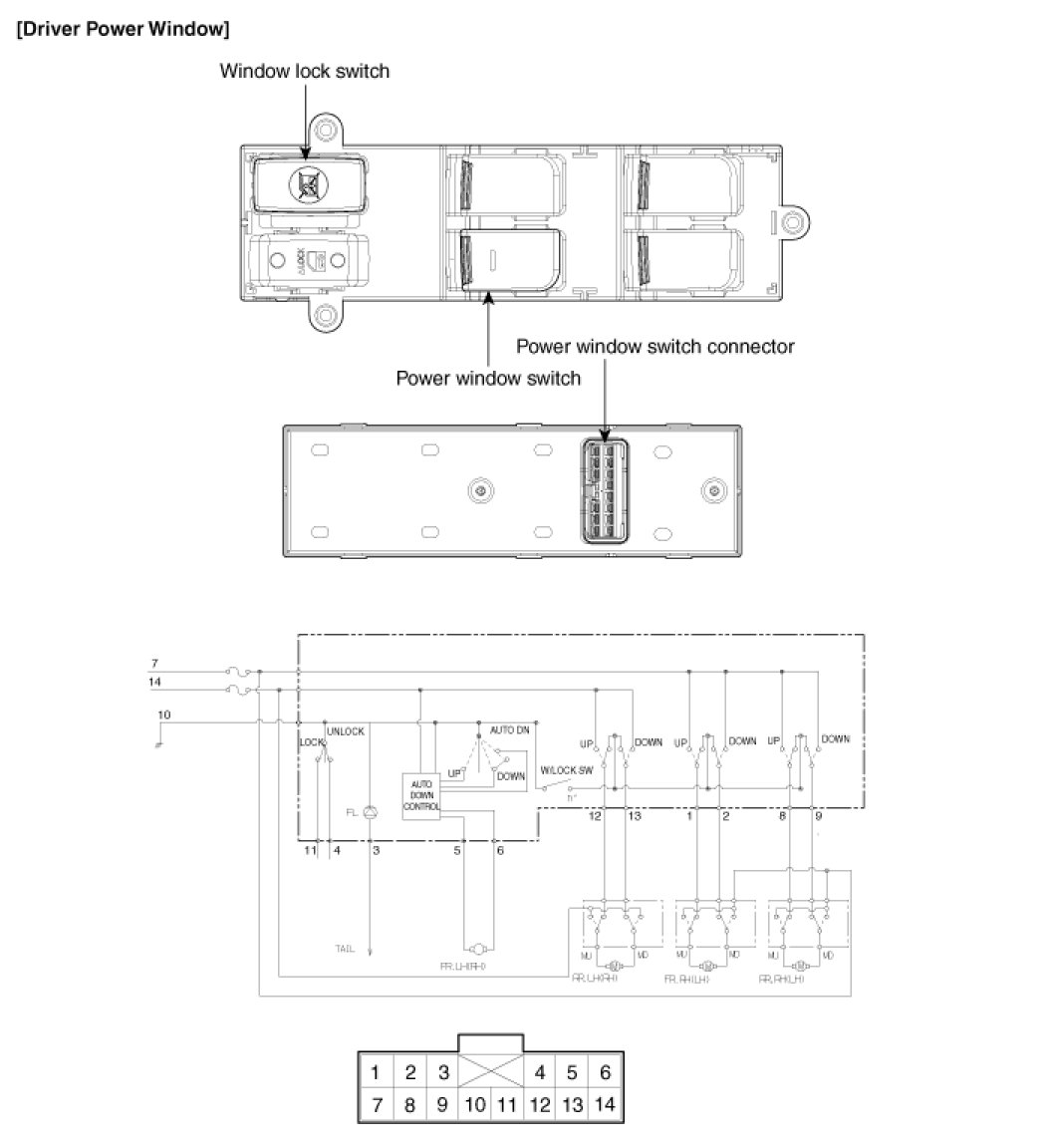

Power Window Main Switch

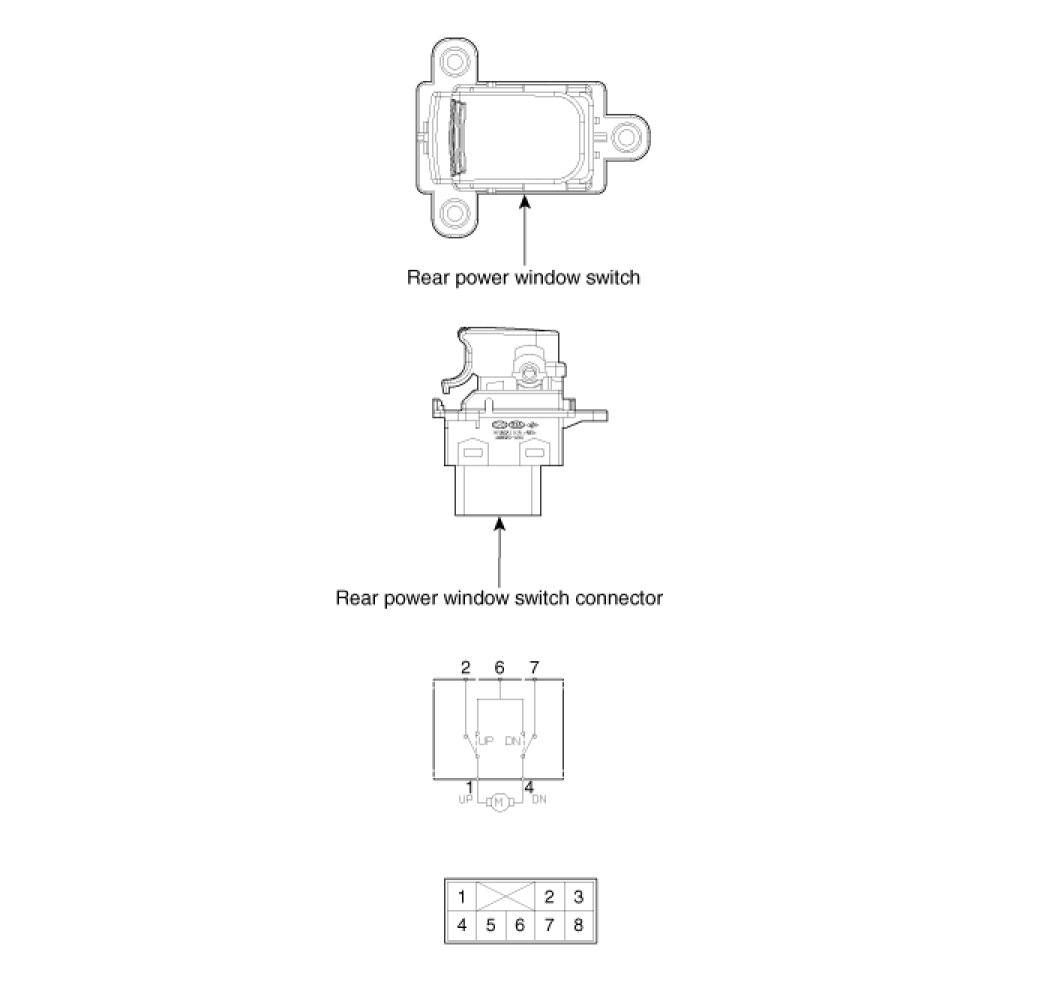

Rear Power Window Switch
