Fuel Pump: Service and Repair

Removal

1. Preparation
(1) Remove the rear seat cushion .

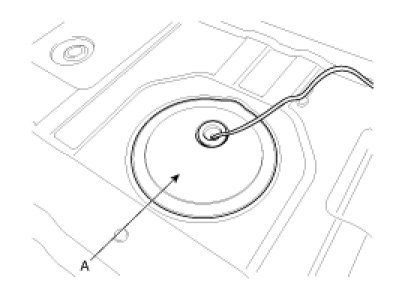

(2) Open the service cover (A).

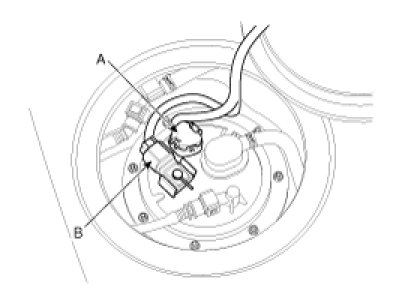

(3) Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).




(4) Start the engine and wait until fuel in fuel line is exhausted.
(5) After engine stalls, turn the ignition switch to OFF position.

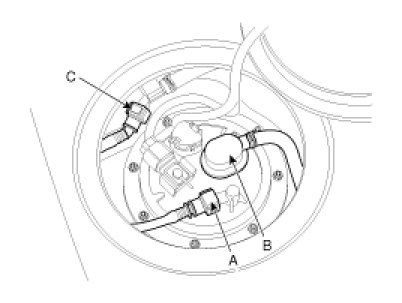

2. Disconnect the fuel feed tube quick-connector (A), the vapor hose (B) and the vapor tube quick-connector (C).




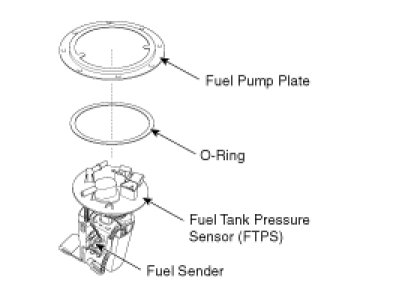

3. Remove the fuel pump installation nuts and remove the fuel pump assembly.






Installation

Installation is reverse of removal.

Fuel pump installation nut:2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb-ft)

CAUTION:
When installing the fuel pump module, be careful not to get the seal-ring entangled.
