Blower Motor Resistor: Service and Repair

Inspection

1. Measure terminal-to-terminal resistance of the blower resistor.
2. If measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)






Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel.(refer to BD group-crash pad)

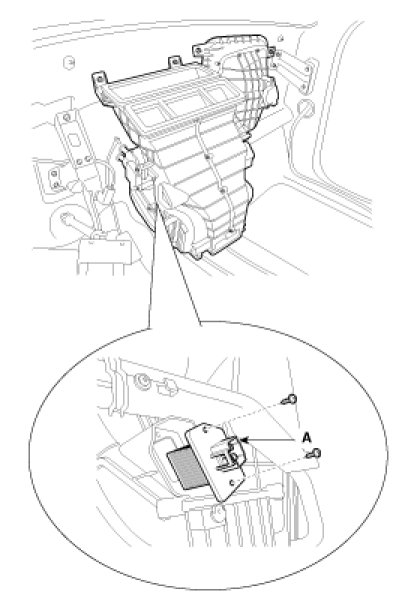

3. Disconnect the connector and then remove the blower resistor (A).




4. Installation is the reverse order of removal.
